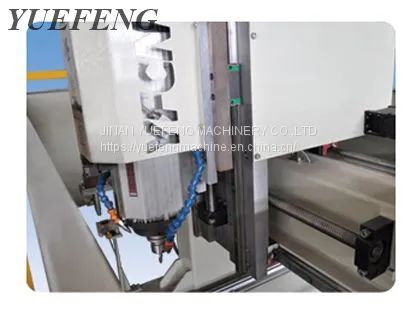

◎ This machine is designed for tapping, routing and milling holes, lock holes, launder and other slots on the profiles of curtain walls. It can work on various profiles.
◎ It adopts YASKAWA servo-motor and driver which are made in Japan.

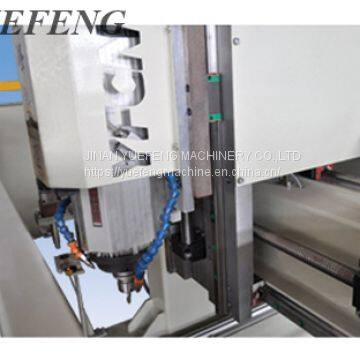

◎ It adopts high speed HSD spindle of Italy
◎ It adopts HIWIN linear guide and YYC grinded gear racks result highly precise process.
◎ It adopts computer control system, CAD-CAM software, which are used in industry area specially.

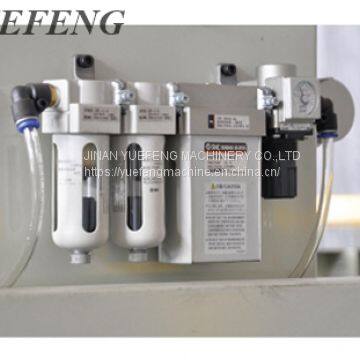

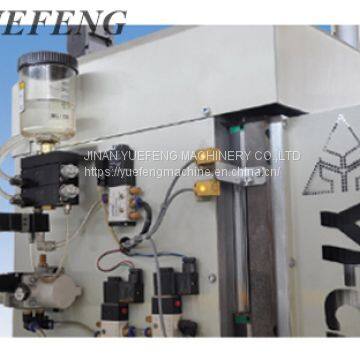

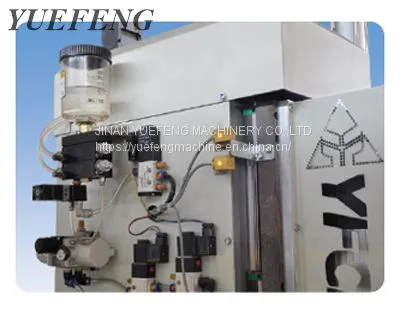

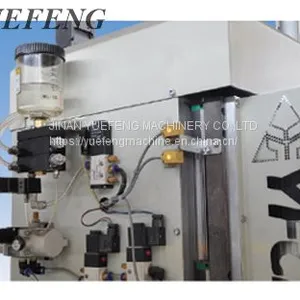

◎ It adopts SEIMENS electrical & pneumatic products, FESTO solenoid valves, SMC gas resource processors and JPC air cylinders.
◎ Revolving six position mills makes the mill-changing convenient.
◎ Double profile locating devices, no need to stop the machine while taking the profiles on and off.
◎ With half-close safeguard device to insure the personal safety of the operator.
Technical Parameter：
Model |
YFLXA-CNC-7000 |
Input voltage |
380V 50Hz |
Input power |
12Kw |
Spindle power |
5.5Kw |
Spindle speed |
0~18000r/min |
X-axes travel |
7200mm |
X-speed |
0~60m/min |
Y-axes travel |
900mm |
Y-speed |
0~30m/min |
Z-axes travel |
300mm |
Z-speed |
0~20m/min |
Process range |
7000×600×280mm |
Overall dimension |
11000×1800×2300mm |
