Adventages: Suitable for the temporary storage and fragile goods.Convenient for storage and transportation. Can be used with lifting equipment.Equipped with a balance block, which can prevent the backward dumping of cargo fork when lifting, and also balance the position of center of gravity when unloaded.

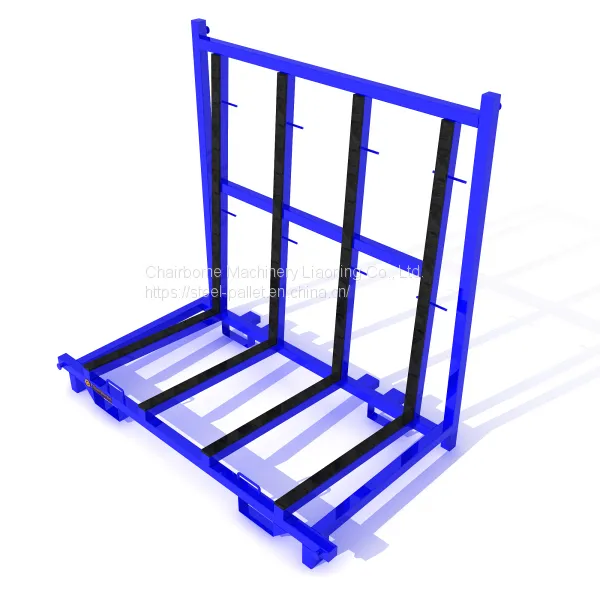

Structure:This steel structure rack is composed of out frame and inside suport two major parts, the materials used are of high quality carbon structural steel, tong long cases of the specifications of the tubing for 50 x 50 square tube, framework and support shall be full penetration in structure, stable structure, carrying capacity is bigger, hold it with glass surface provided in article shock, prevent the glass damaged during the transit.
① Our Frame ② Inside Support
Code |
W (mm) |
L (mm) |
H (mm) |
Weight (KG) |
Material |
Surface |
Dynamic (T) |
Static (T) |
1600 |
950 |
1600 |
68.5 |
Q235 |
Powder coating |
2.5 |
4.0 |
|
TO CUSTOMIZED AND DESIGN THE DIFFERENT PRODUCTS FOR CLIENTS ARE AVAILABLE | ||||||||
DETAILED IMAGES

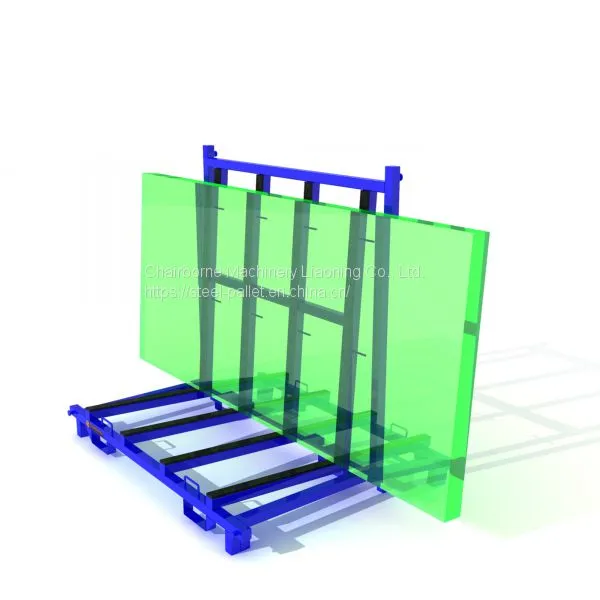

This product is suitable for temporary storage and transportation of board goods, especially fragile goods.
The specifications of this product can be customized according to user requirements.
The surface treatment of this product adopts electrostatic spraying process, with uniform coating, good wear resistance and anti-corrosion effect.
The product can be stacked up when empty, which is convenient for storage and transportation.

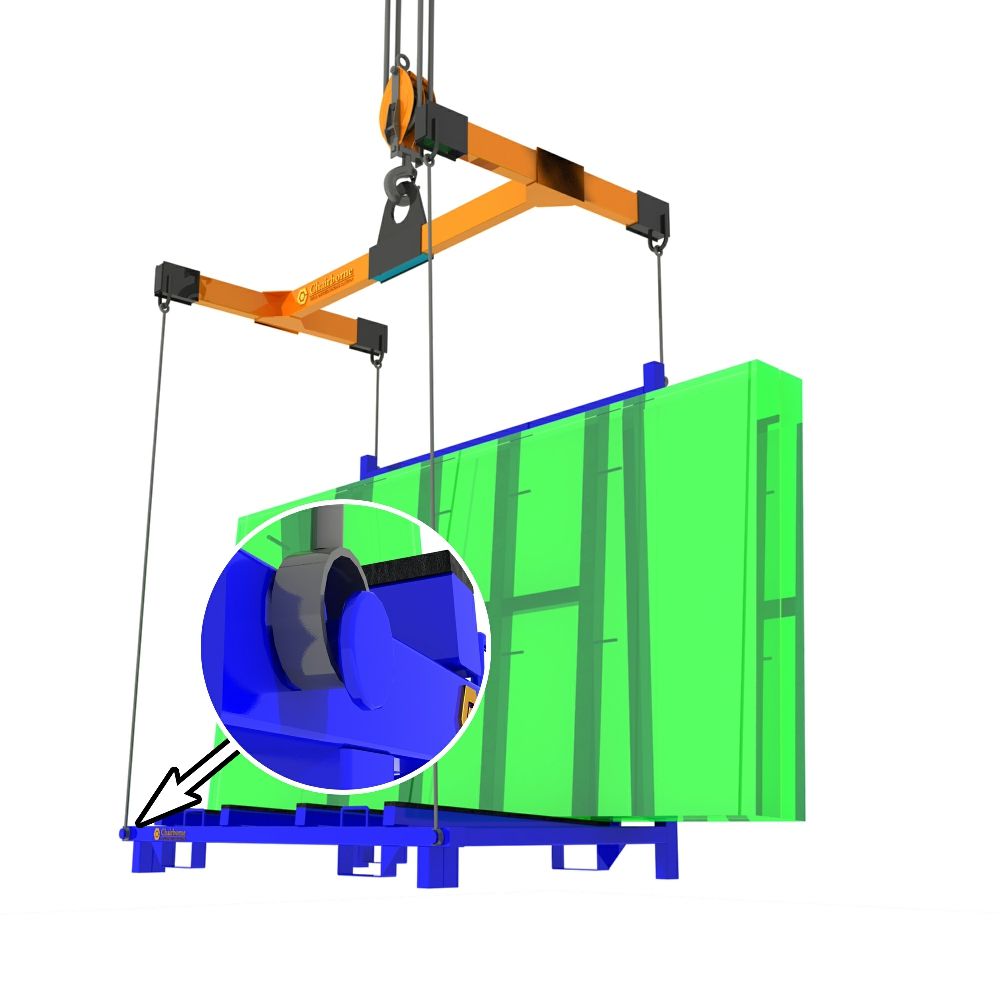

The product has a hook at four corners, which can be used with lifting equipment.

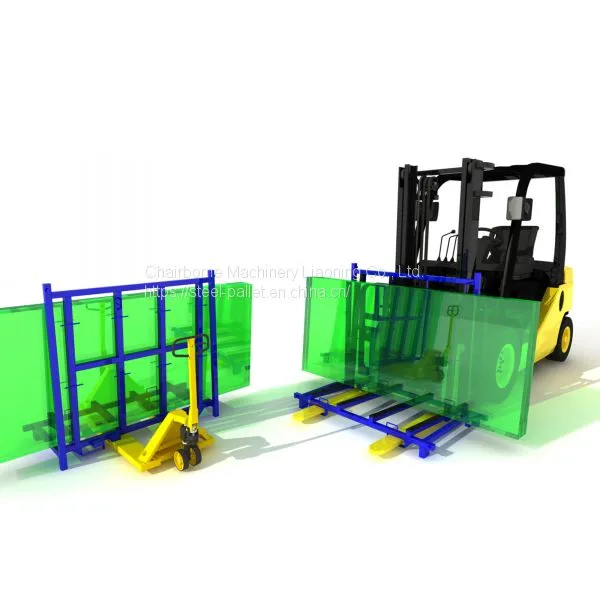

This product is equipped with forklift road, which can be used with forklifts or with hand pallet truck.
This product is equipped with a balance block, which can prevent the backward dumping of cargo fork when lifting, and also balance the position of center of gravity when unloaded.
The product has multiple anchor hooks, which facilitates the fixation of goods and shelves.
The product is provided with a buffer pad on the contact surface of the goods to prevent damage to the goods caused by the steel frame.
