Automatic servo feeding steel tube cutting machine, square tube cutting machine, copper pipe cutter machine
Main specification
1.The machine adopt man-machine interface, PLC control with touch screen, operating simple.
2.Using HSS saw web:250-400mm,Standard saw web is Φ350mm.
3.Special design, multiple gears, suitable for heavy cutting ,precision and stability.
4.Feeding, clamping, cutting off with automatic circulation.
5.PLC control, can choose many times feeding(One time 6-1000mm).
6.Using cooling fluid. cooling motor 0.09KW to ensure the smooth workpiece section.
7.Using hydraulic pressure oil.
8.Using special clamp mold, several pipes could be cut together according to the different size of pipe diameter.
Technical parameter
Specification/Model | MC-350CNC | ||
sawing scale | Applicable sawblade 250-400mm | ||
rectangle pipe | 120mm x 90mm | ||
square pipe | 110mm×110mm | ||
round pipe | 125mm | ||
round bar | 75mm | ||
square bar | 65mm×65mm | ||
Size | 1600×1850mm×1600mm | ||
Weight | 800kg | ||
Main motor(KW) | 4.5KW | ||
Main shaft speed(RPM) | 88/44 | ||
Feeding length Standard | 6-1000mm*time after time | ||
Oil motor system | 4.5KW motor,18L pump | ||
Cooling system | 0.09KW motor | ||

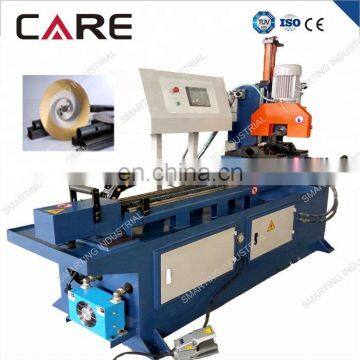

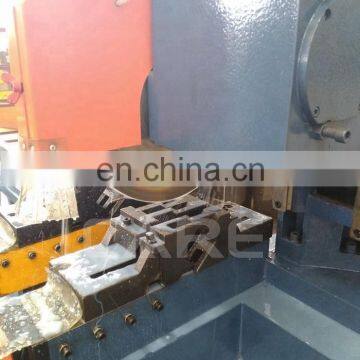

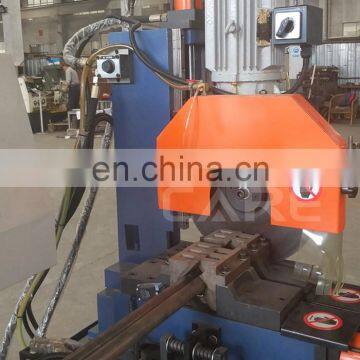

Machine photo

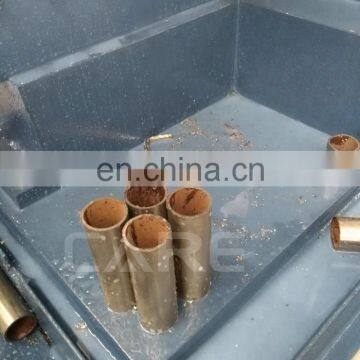

Pipe cutting sample
Use export polywood package or metal frame package
