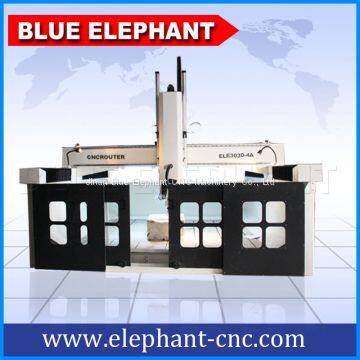

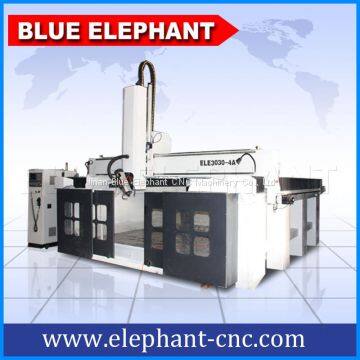

Help CenterELE3030 5 Axis Styrofoam EPS Cnc Cutting Machinery
Related Products
-
2030 EPS Styrofoam Foam Cutting Router Machine , Cnc Engraving MachineryUS$ 3500 - 8000MOQ: 1 Set -
ELE3050 Styrofoam EPS 5 Axis Cnc CutterUS$ 4000 - 6000MOQ: 1 Set
-
ELE 3050 China Styrofoam Foam Mold Cutting Machine , 4 Axis Atc Cnc Router for Wood Mold MakingUS$ 4000 - 7000MOQ: 1 Set
-
1020 High Z Axis Woodworking Cnc MachineUS$ 4500 - 9000MOQ: 1 Set
-
1530 Syntec Controlled 3 Axis CNC Router MachineryUS$ 5000 - 8000MOQ: 1 Set
Features:
4 axis rotating head within 1800,widely used for mould making on wood,foam,EPS
ATC function(automatic tool changer),8 tools round tool magazine,high efficiency..
9kw Italy HSD ATC spindle,24000rpm,world top brand,has after-sale service center all over the world.
Taiwan SYNTEC control,4 axis control,top brand,powerful in use.
Taiwan HIWIN square linear guide for all axes,world top brand,high precision,fast speed.
Oblique rack and pinion transmission for XY axis,stable and powerful.
Japan Yaskawa servo motor,best brand,powerful in use and very accurate.
Heavy duty structure,big and thickened machine body,very stable for big size and high Z axis.
Parameter:
| X,Y,Z Working Area | 3000x30000x1000mm*180° |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| Table Surface | Milling steel table (T-slot) |
| Frame | Welded structure (cast iron) |
| X, Y Structure | Oblique Rack and Pinion Drive from Taiwan, Hiwin Rail Linear Bearings:
X axis, Y axis, 30mm |
| Z Structure | Ball Screw, Hiwin Rail Linear Bearings :
Z axis, 25mm |
| Max. Power Consumption | (Without spindle) 6.5Kw |
| Max. Rapid Travel Rate | 40000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 9KW Italy HSD ATC air cooling spindle |
| Spindle Speed | 24000RPM |
| Drive Motors | Yaskawa servo system : 1.3kw
Z axis is with band brake |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| Command Language | G code |
| Operating System | Syntec control System (Osai for option) |
| Computer Interface | Ethernet |
| Flash Memory | 256 M(with CF card) |
| tool holder | ISO 30 |
| X,Y Resolution | |
| Software Compatibility | Type3, Ucancam, Art cam, UG, Powermill |
| Running Environment Temperature | 0degree – 45 degree |
| Relative Humidity | 30% – 75% |
| Packing Size | 2300X4800X1900mm (in parts) |
| N.W. | 7300KG |
| G.W. | 8000KG |
| Guarantee | One year from the date of commission |
| Optional Parts | Air cooling spindle or Water cooling spindle |
| Dust collector | |
| Rotary system | |
| Mist-cooling system | |
| Panasonic Servo motors/Delta servo motors |
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
