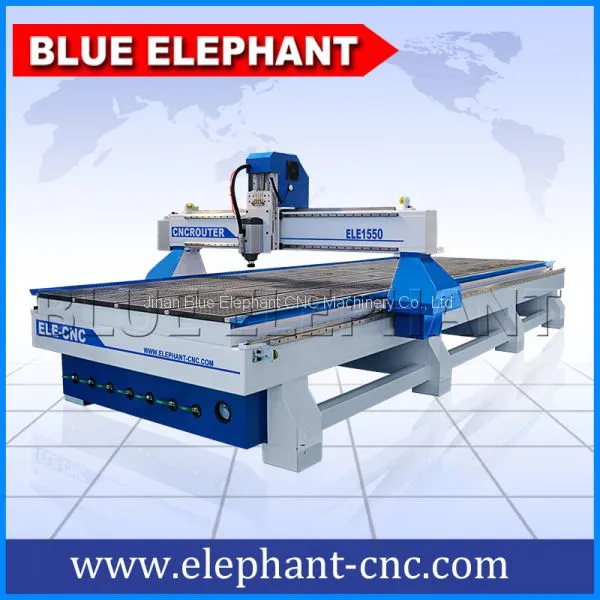

Help Center3 Axis 1550 Woodworking Cnc Router Machine for MDF Cutting
Related Products
-
1325 Wood Working Cutting Cnc Machinery With Cheap PriceUS$ 4500 - 7000MOQ: 1 Set -
1530 3 Axis Woodworking Machines for Wood Door Cabinet Furniture MakingUS$ 4200 - 7000MOQ: 1 Set
-
ELE1536 Wood Cnc Router Woodworking Carving MachineUS$ 4000 - 7000MOQ: 1 Set
-
ELE1530 DSP Control Woodworking Cnc Router MachineryUS$ 3000 - 7000MOQ: 1 Set
-
ELE1325 3D Cnc Wood Router Machinery For WoodworkingUS$ 3000 - 7000MOQ: 1 Set
Features:
Popular design: Industrial class square tube strong machine bed and gantry
Simple operation: lots of customer choose to use RichAuto DSPA11 control system, which support offline operation even though meet power off
Strong powerful adsorbability: t-slot and vacuum table with 6 zones
Customized: large table size can be customized according to your materials size
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 1500x5000x200mm |
| Table Surface | T-slot and vacuum working table |
| Structure | Industrial class square tube strong structure |

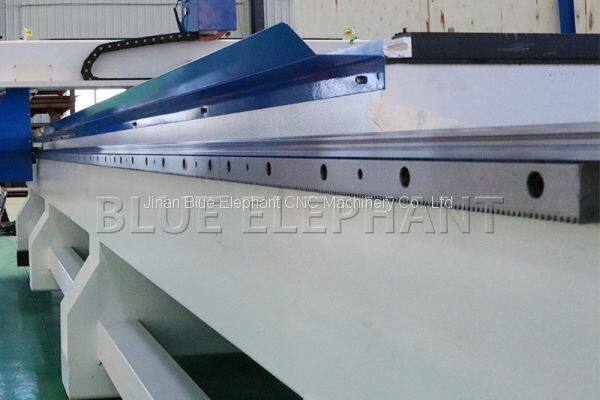

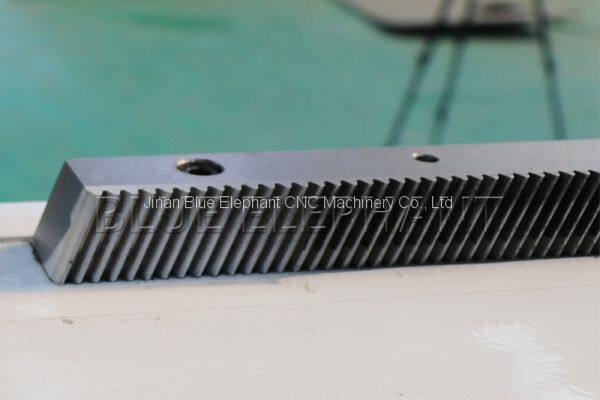

| X, Y Structure | 20#Taiwan ABBA Linear guide and helical rack |

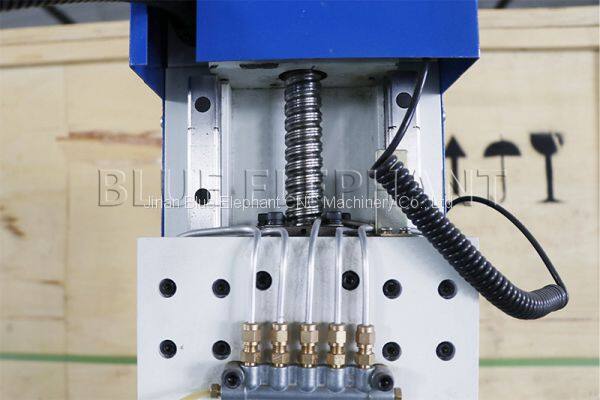

| Z Structure | Taiwan TBI Ball screw |
| Spindle Power | 4.5KW Italy HSD air cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | FL118 stepper motor and YAKO2811 drive |
| Inverter | 5.5 kw Taiwan Delta Inverter |
| Control System | DSP A11 handle controller with USB port |

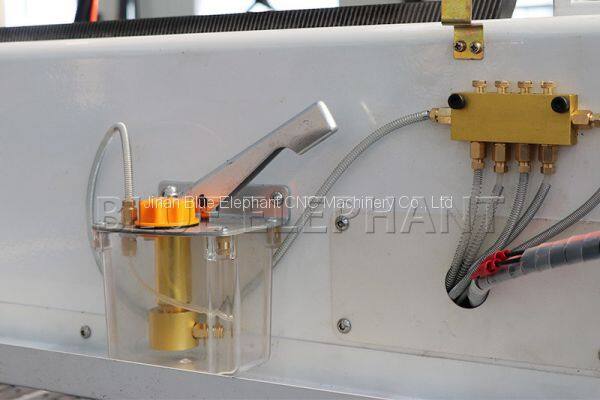

| Lubrication | Manual Lubrication system |
| Tool sensor | Manual tool sensor calibration |
| Dust Collector | dust collector with 2 pockets |
| Vacuum pump | 4kw germany becker vacuum pump |
| Control box | Single Control box |
| Option | Oil mist cooling system |
| Limit switch | Japan OMRON limit switch for X, Y, Z axis |
| Command Language | G Code |
| Computer Interface | USB |
| Collet | ER32 |
| Software Compatibility | ARTCAM 2012 software |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
PS:All the working area and specifications can be customized according to your requests
Details
Packageing and shipping
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment
Our clients
Our service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Contact us
Email: manager@elephant-cnc.com
skype: elephantcnc
WhatsApp/Mobile: 0086-15064026772
