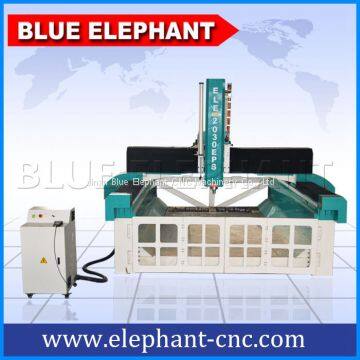

Help Center2030 EPS Styrofoam Foam Cutting Router Machine , Cnc Engraving Machinery
Related Products
-
ELE3050 Styrofoam EPS 5 Axis Cnc CutterUS$ 4000 - 6000MOQ: 1 Set -
ELE 3050 China Styrofoam Foam Mold Cutting Machine , 4 Axis Atc Cnc Router for Wood Mold MakingUS$ 4000 - 7000MOQ: 1 Set
-
ELE3030 5 Axis Styrofoam EPS Cnc Cutting MachineryUS$ 3500 - 6000MOQ: 1 Set
-
1020 High Z Axis Woodworking Cnc MachineUS$ 4500 - 9000MOQ: 1 Set
-
1530 Syntec Controlled 3 Axis CNC Router MachineryUS$ 5000 - 8000MOQ: 1 Set
Features:
Effective working area : 2000x3000x900mm
7.5kw BT40 water cooling spindle
Taiwan DELTA inverter: 11kw
Japan YASKAWA servo driver 1.3KW
NK 105 control system 4 axis
Dust proof for X,Y; Taiwan HIWIN #35, 6 slider for Z; 4 pieces of Linear guide on Y axis
Taiwan TBI ball screw with high precision
Dust hood for axis,dust collect hood and pipe for dust collector
Divided structure ,Fixing with screws,heat treatment, Iron flat table
Japan Shimpo reducer
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 2000x3000x900mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| X,Y,Z Repositioning Accuracy: | ±0.01mm |
| Table Surface | 20# Iron flat table |
| Frame | Divided structure ,Fixing with screws |
| Y Structure | Helical rack gear , 4pcs HIWIN inear guide |
| X,Z Structure | HIWIN #35 Linear guide |
| Max. Power Consumption | 12KW |
| Max. Rapid Travel Rate | 40000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | 7.5kw |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Japan 1.3KW YASKAWA servo |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | NK 105 |
| Computer Interface | USB |
| Flash Memory | 512M |
| Collet | ER32 (20mm) |
| X,Y Resolution | |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
PS:All the working area and specifications can be customized according to your requests.
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
