Features:
2.2 kw water cooling spindle with March 3 control system, very convenient to operate with coumputer
Z axis height is 300 mm for many different thickness of materials.
Double Emergency stop switch, with double protection.
Technical Parameter
| Descriptions | Parameters |

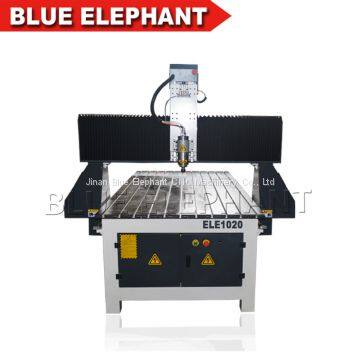

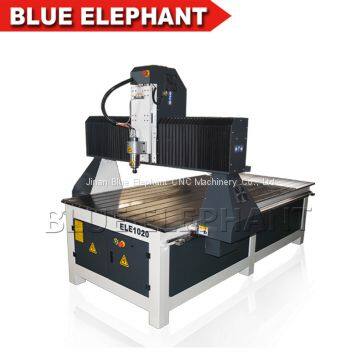

| Modle | ELE1020 |
| Working area | 1000*2000*300 mm |

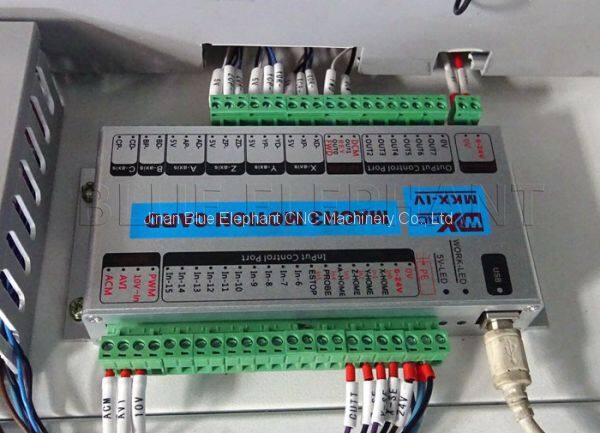

| Control system | Mach3 control system |

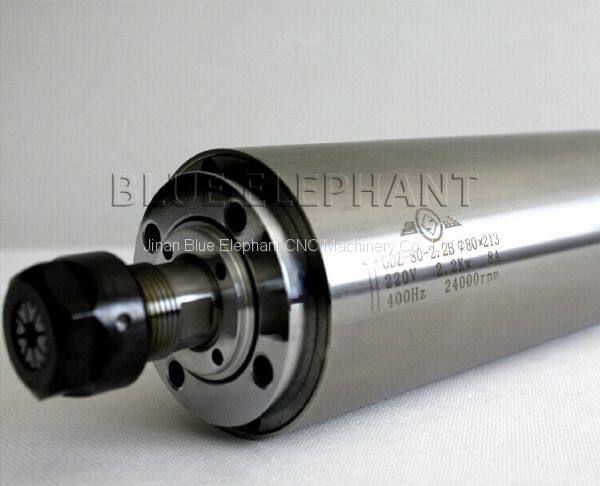

| Spindle | 2.2kw Changsheng water cooling spindle |
| Spindle speed | 0-24000rpm/min |

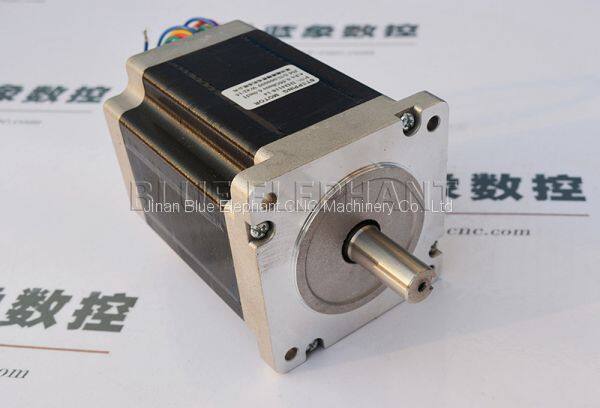

| Motor | 450B stepper motor |
| Driver | Leadshine 860H driver |
| Transmission | X,Y axis helical rack and pinion drive
Z all axis Taiwan TBI ball screw With Taiwan HIWIN linear square rail #20 |
| Inverter | 2.2kw Fuling Inverter |
| Table surface | T-slot working table with PVC protection |
| Tool sensor calibration | Simple tool sensor calibration |
| Working voltage | 220V, 1phase, 50Hz |
PS: All the working area and specifications can be customized according to your requests.
Product Details
Packaging & Shipping
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
