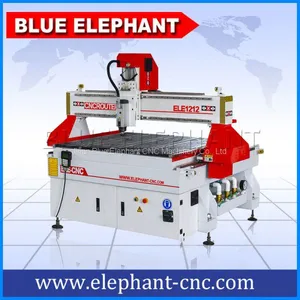

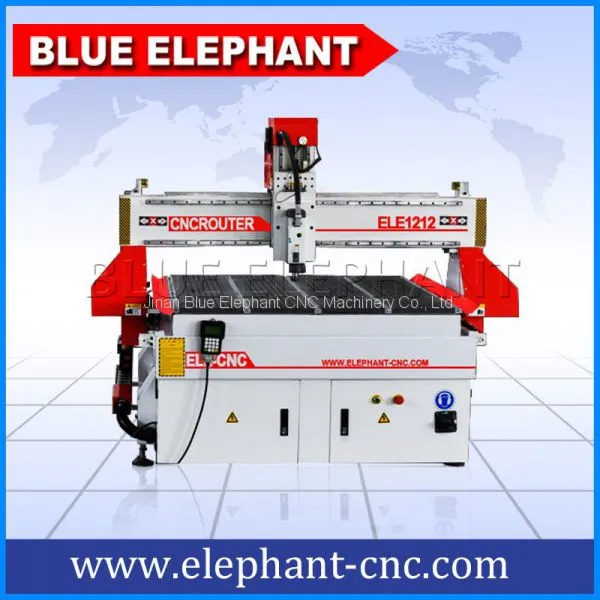

Help Center1212 3 Axis Cnc Router Cutting Carving Machine
Related Products
-
ELE2030 Costumised 3d Wood Cutting Woodworking Cnc RouterUS$ 3000 - 7000MOQ: 1 Set -
1325 Wood Art Work Carving Engraving Cnc Router Machine for SaleUS$ 3000 - 7000MOQ: 1 Set
-
2240 3 Axis Desktop Wood Cutting Cnc Router MachineUS$ 3500 - 7000MOQ: 1 Set
-
ELE1530 Cnc Carving Router Making Machine With T-slot Working TableUS$ 6500 - 7000MOQ: 1 Set
-
ELE1530 Z Axis Cnc Wood Cutter Cutting MachineUS$ 3500 - 7000MOQ: 1 Set
Advantages:
heavy duty frame, stronger and stable
Vacuum table, can suck the material with vacuum pump automatic
HSD air cooling spindle, world famous brand
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 1200x1200x200mm |
| Structure | New type thicker and bigger heavy duty welded frame and gantry |
| Working voltage | 400V, 3PH, 50HZ (220V, 380V for optional) |
| Table Surface | T-slot & vacuum working table |

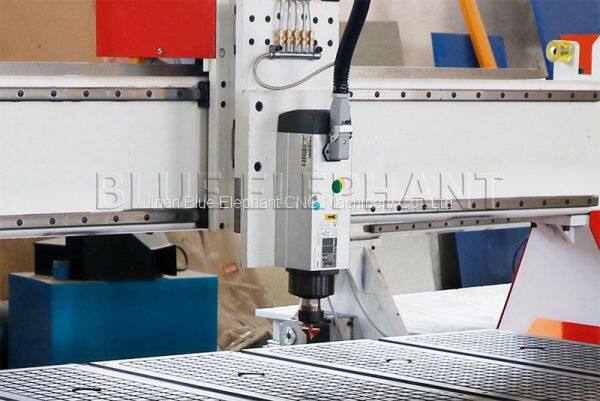

| Spindle | 3kw HSD air cooling spindle |
| Spindle speed | 0-18000rpm |

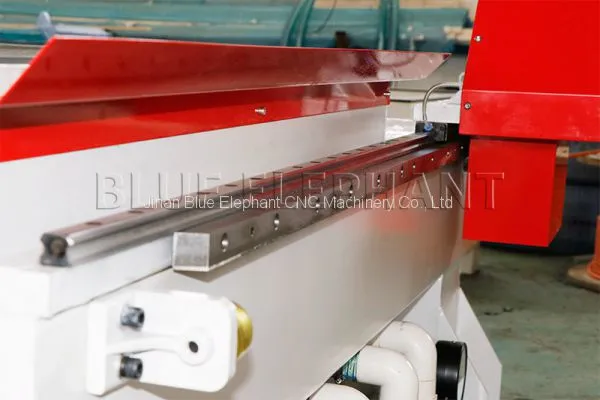

| X, Y Structure | 20# Sweden ABBA Linear guide and helical rack |

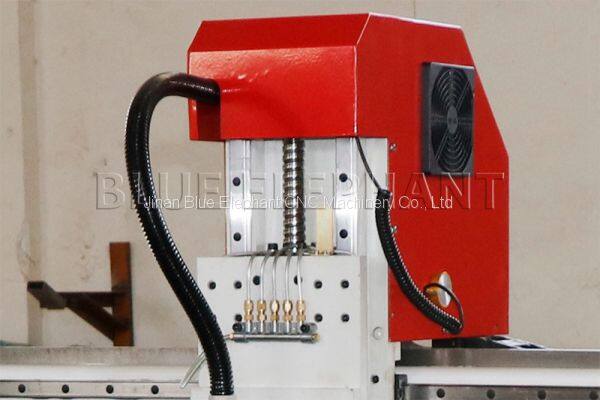

| Z Structure | Taiwan TBI Ball screw and 20# Sweden ABBA Linear guide |

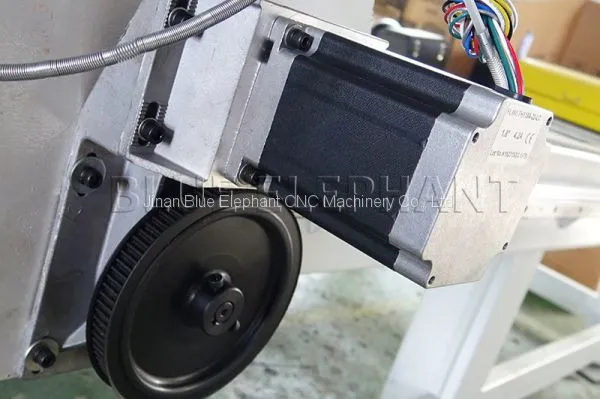

| Motor and driver | FL118 stepper motors and YAKO 2608 stepper drivers |

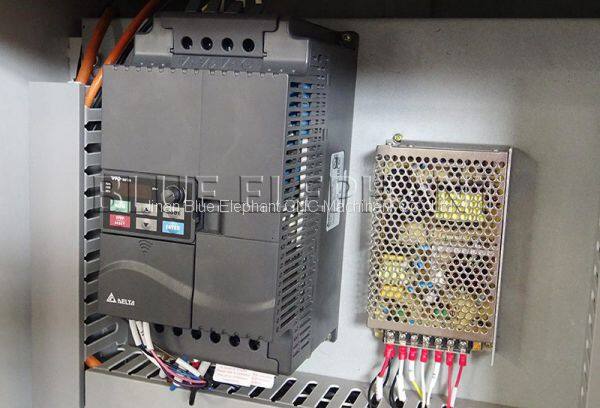

| Inverter | 3.7kw Taiwan Delta Inverter |
| Command Language | G Code |

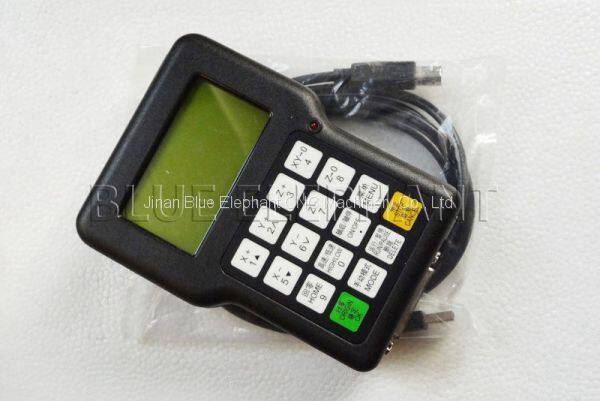

| Control System | DSP A11 control system |
| Control box | Inner box |

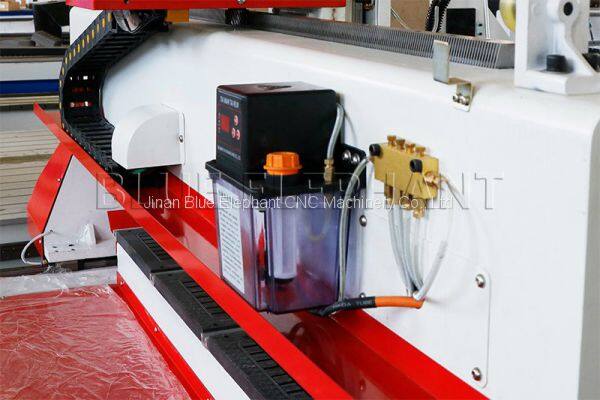

| Lubrication system | Automatic lubrication system |
| Tool sensor | Manual tool sensor calibration |
| Vacuum pump | 5.5kw water circulation vacuum pump |
| Collet | ER25 |
| X,Y Resolution | |
| Software Compatibility | Artcam Software |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
| Optional | High flexible towline, fire-proof double-sheathed cable.
Japan Omron limit switch. France Schneider safe handle |
PS:All the working area and specifications can be customized according to your requests.
Details
Packageing and shipping
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment
Our clients
Our service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Contact us
Email: manager@elephant-cnc.com
skype: elephantcnc
WhatsApp/Mobile: 0086-15064026772
www.elephant-cnc.com
