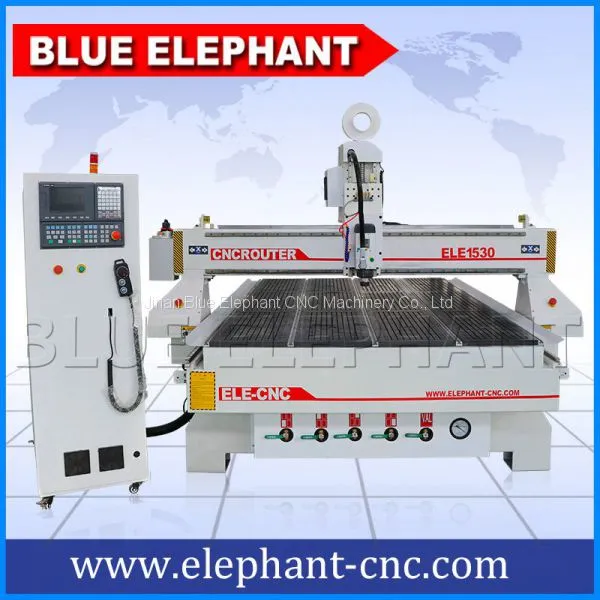

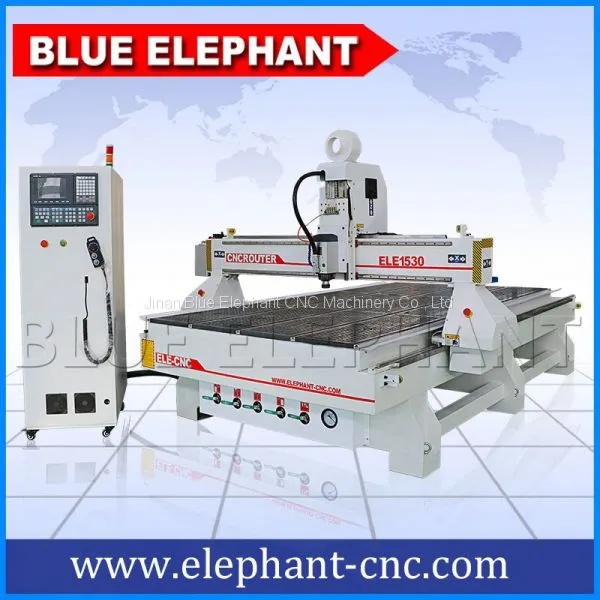

Help Center1530 Syntec Controlled 3 Axis CNC Router Machinery
Related Products
-
3 Axis 1550 Woodworking Cnc Router Machine for MDF CuttingUS$ 5600 - 7000MOQ: 1 Set -
1325 Wood Working Cutting Cnc Machinery With Cheap PriceUS$ 4500 - 7000MOQ: 1 Set
-
1530 3 Axis Woodworking Machines for Wood Door Cabinet Furniture MakingUS$ 4200 - 7000MOQ: 1 Set
-
ELE1536 Wood Cnc Router Woodworking Carving MachineUS$ 4000 - 7000MOQ: 1 Set
-
ELE1530 DSP Control Woodworking Cnc Router MachineryUS$ 3000 - 7000MOQ: 1 Set
Features:
Syntec 6BM controller, panel control board, easy to operate.

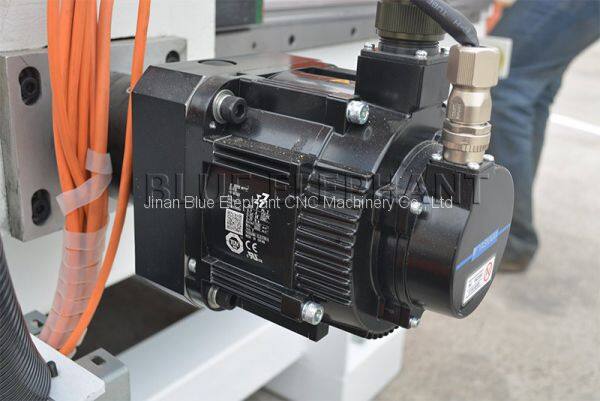

Yaskawa servo motors and drivers, Z axis with brand brake
German Becker vacuum pump, KVT 3.140 Model, oil-free, air cooled
Italian HSD Air cooling spindle 4.5KW
Parameters:
| Description | Parameter |
| Model | 1530 Woodworking Machines |
| X,Y,Z Working Area | 1500*3000*200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |

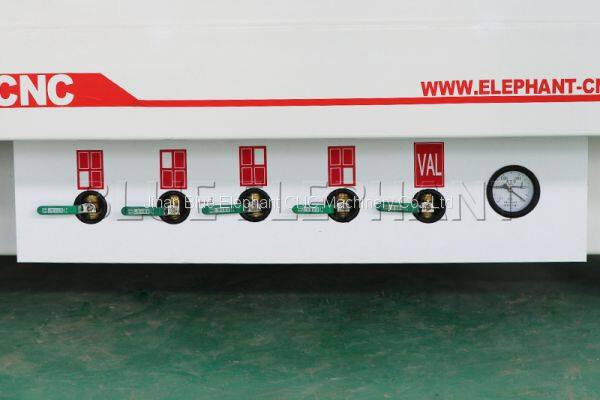

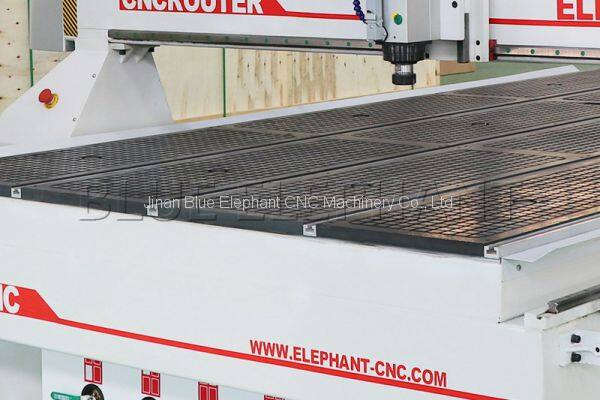

| Table Surface | Vacuum and T-slot working table |
| X, Y Structure | Helical Rack gear for X Y axis |

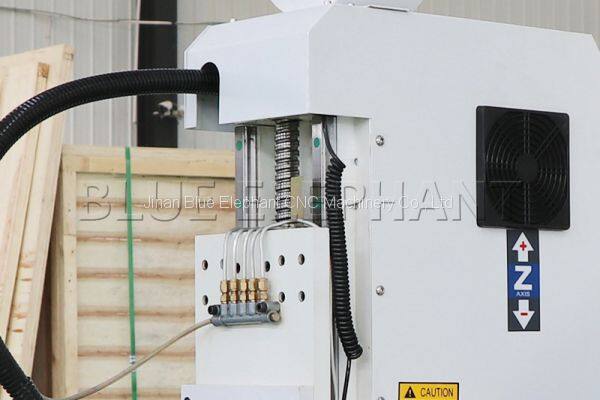

| Z Structure | Taiwan TBI ball screw for Z travel |

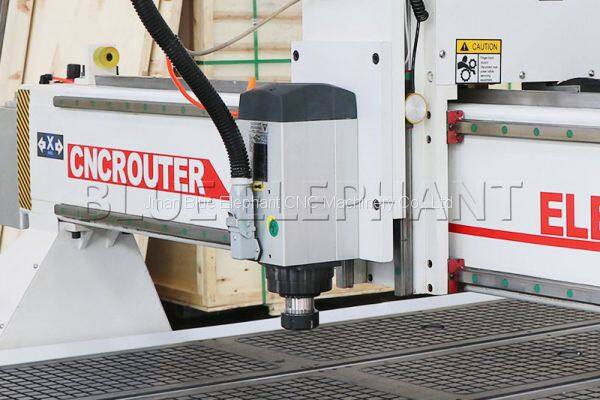

| Spindle | Original Italy HSD 4.5KW Air cooling spindle |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Japan YASKAWA servo motor, 850W and drivers, 1000W |
| Inverter | Taiwan DELTA 5.5KW inverter |

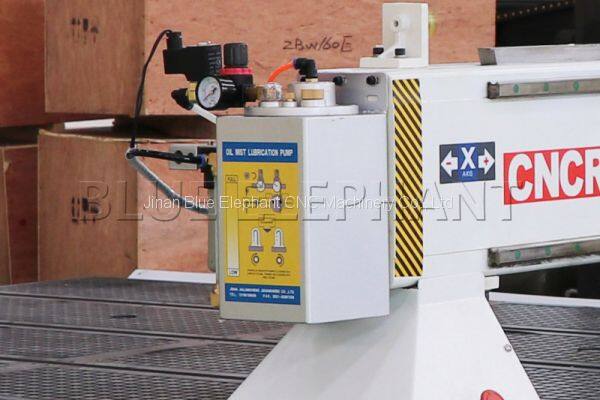

| Lubrication system | Manual lubrication system |
| Working Voltage | AC380V, 3Ph, 50Hz (Option: 220V) |

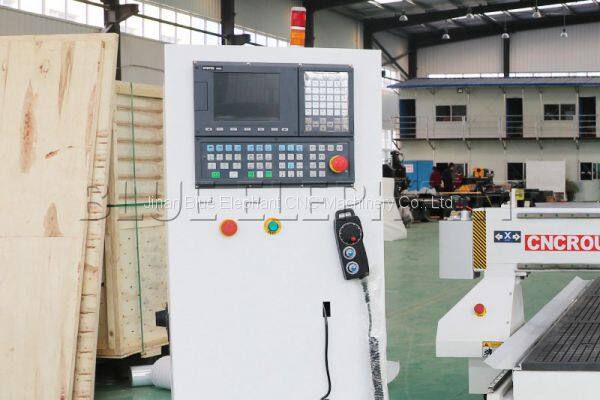

| Operating System | Taiwan SYNTEC 6MB controller with MPG handle wheel |
| Control box | Single-sided indenpended control box |
| Vacuum pump | 4KW German Becker vacuum pump (AC380V, 3Ph, 50Hz) |
| Frame | New type thicker and bigger heavy duty welded frame and gantry |

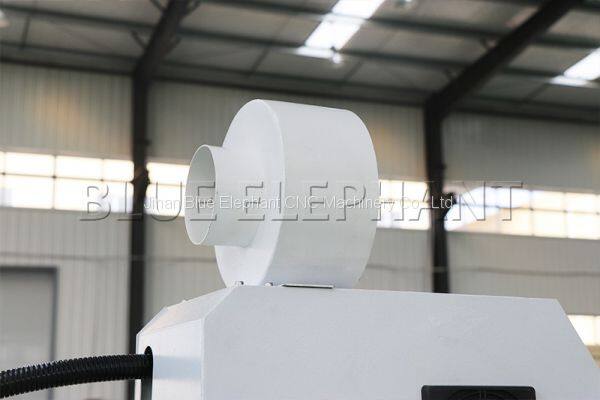

| Dust collector | 200mm vacuum pipe dust cover. |
PS:All the working area and specifications can be customized according to your requests.
Details
Packageing and shipping
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment
Our clients
Our service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
