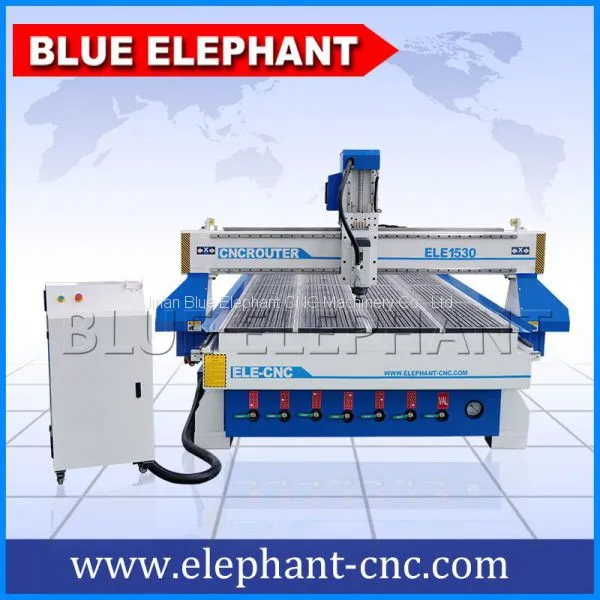

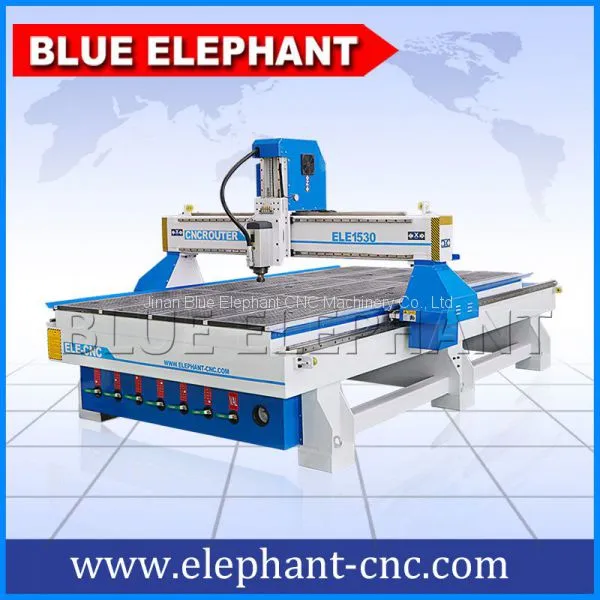

Help Center1530 3 Axis Woodworking Machines for Wood Door Cabinet Furniture Making
Related Products
-
ELE1536 Wood Cnc Router Woodworking Carving MachineUS$ 4000 - 7000MOQ: 1 Set -
ELE1530 DSP Control Woodworking Cnc Router MachineryUS$ 3000 - 7000MOQ: 1 Set
-
ELE1325 3D Cnc Wood Router Machinery For WoodworkingUS$ 3000 - 7000MOQ: 1 Set
-
1212 3 Axis Cnc Router Cutting Carving MachineUS$ 3000 - 7000MOQ: 1 Set
-
ELE2030 Costumised 3d Wood Cutting Woodworking Cnc RouterUS$ 3000 - 7000MOQ: 1 Set
Features:
Original Italy HSD spindle 4.5Kw ,very powerful and top quality
Japan YASKAWA servo system 1Kw, powerful,precision and durable
Heavy duty frame and gantry, 8-12 mm
rapid running speed: two axes are rack gear, fast speed and high efficience, The highest speed is 45mpm.

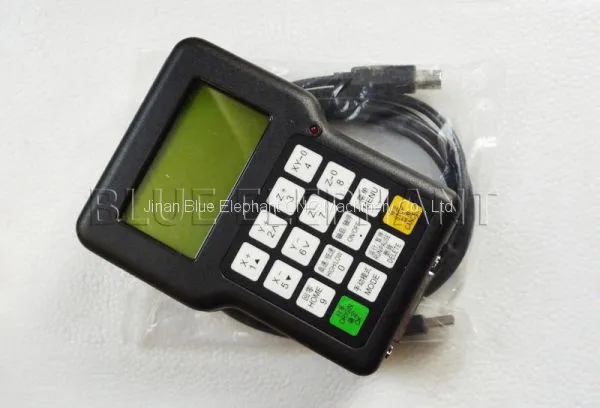

Intelligent control: adopting DSP control system.It is very easy to master.
Parameters:
| Description | Parameter |
| Model | 1530 Woodworking Machines |
| X,Y,Z Working Area | 1500*3000*200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |

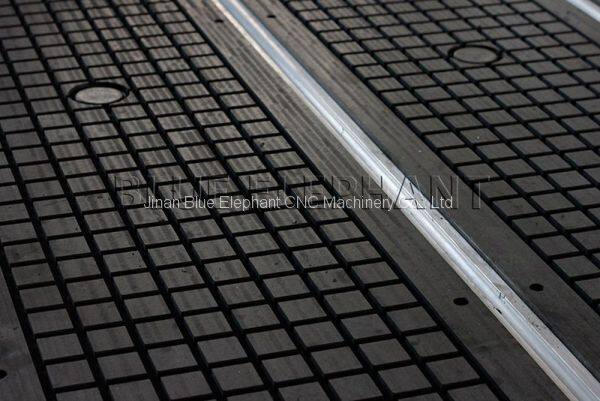

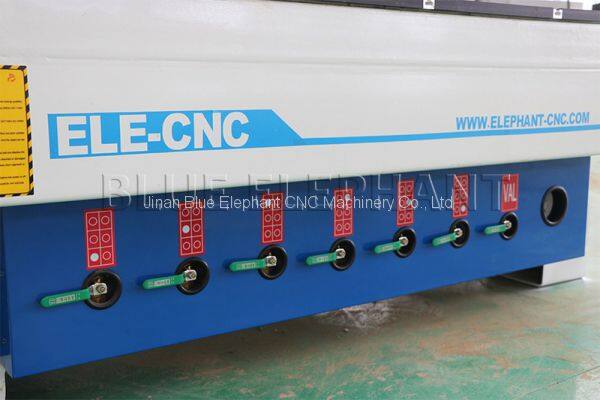

| Table Surface | T-slot and Vacuum Working Table |
| Frame | New type thicker and bigger heavy duty welded frame and gantry |

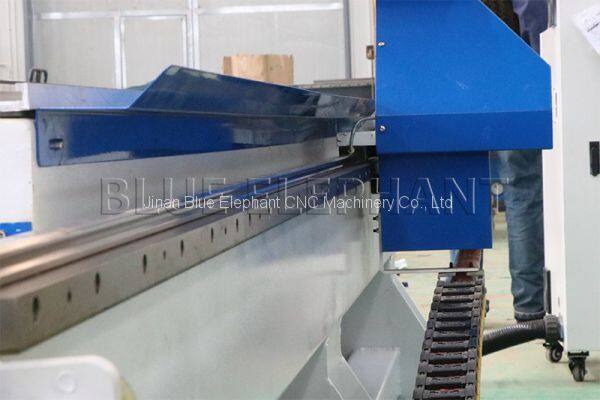

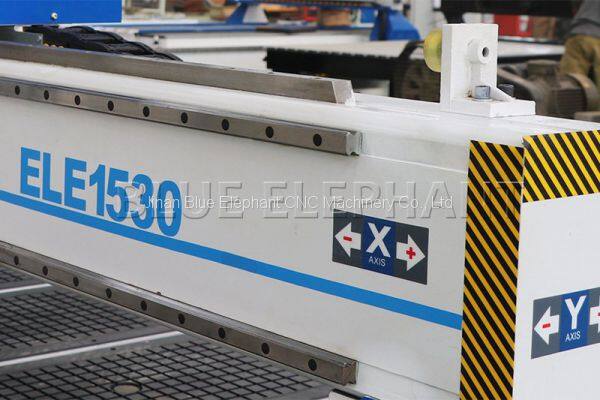

| X, Y Structure | Helical Rack gear, Taiwan PMI/ABBA Linear Square Rail |

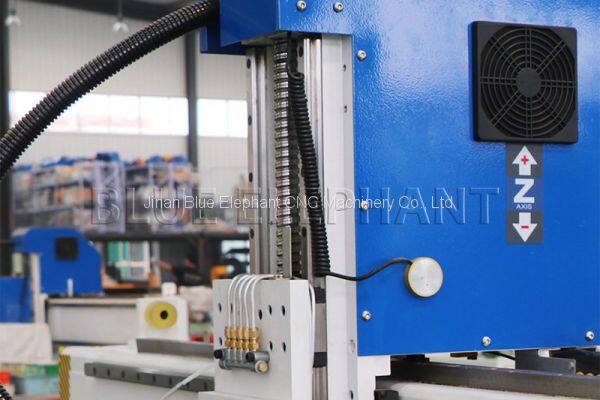

| Z Structure | Taiwan TBI Ball Screw, Taiwan PMI/ABBA Linear Square Rail |

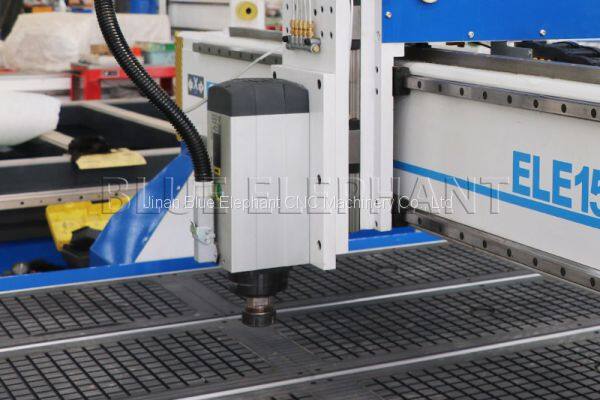

| Spindle | 6kw Italy HSD air cooling spindle |
| Spindle Speed | 0-18000RPM |

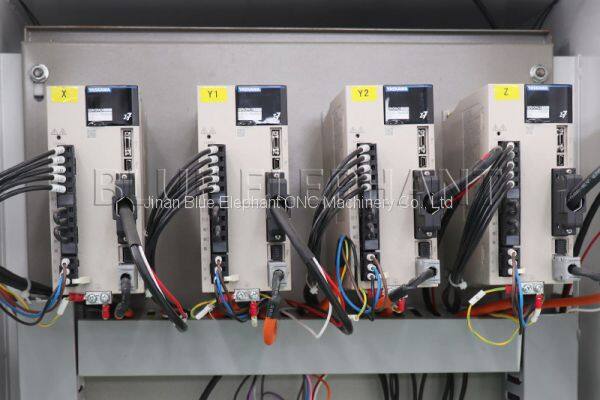

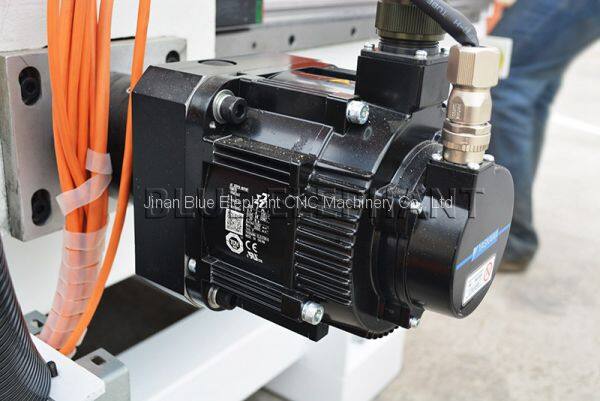

| Drive Motors | 850w Japan YASKAWA servo motors and drivers |

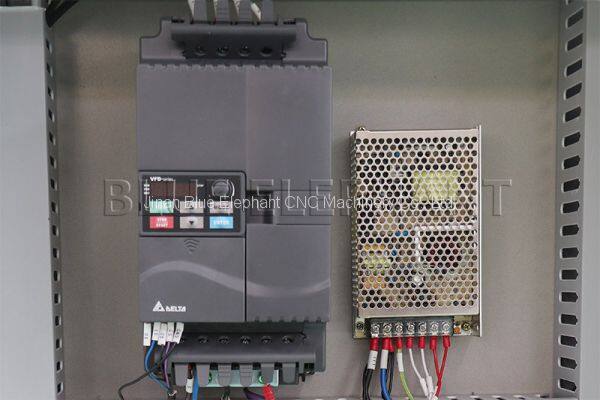

| Inverter | 7.5kw Taiwan Delta Inverter |

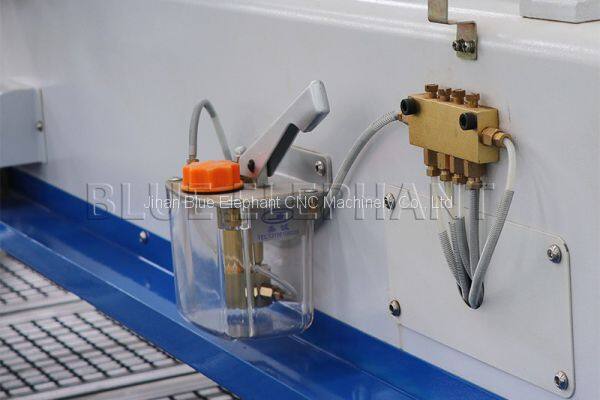

| Lubrication system | Manual lubrication system |
| Working Voltage | AC380V, 3Ph, 50Hz (Option: 220V) |

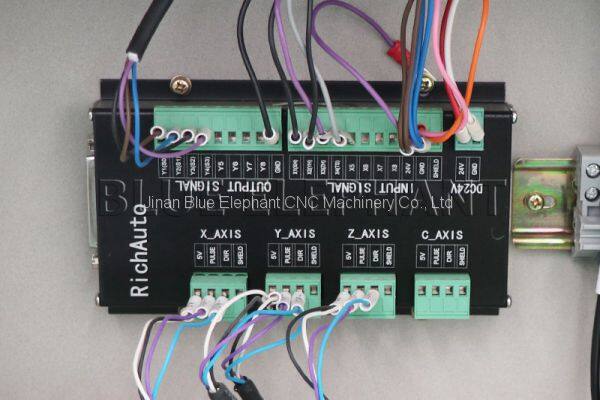

| Operating System | DSP A11 Control System |
| Control box | Single-sided indenpended control box |
| Dust collector | 1.5kw new type double pockets dust collector (AC380V, 3Ph, 50Hz) |
| Vacuum pump | 7.5kw water circulation vacuum pump (AC380V, 3Ph, 50Hz) |
PS:All the working area and specifications can be customized according to your requests.
Details
Packageing and shipping
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment
Our clients
Our service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
