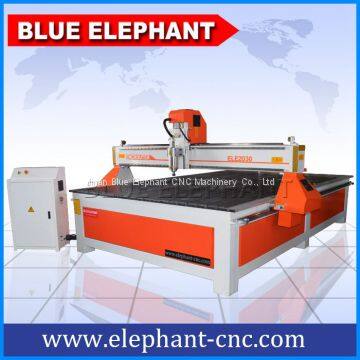

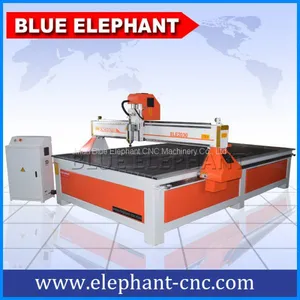

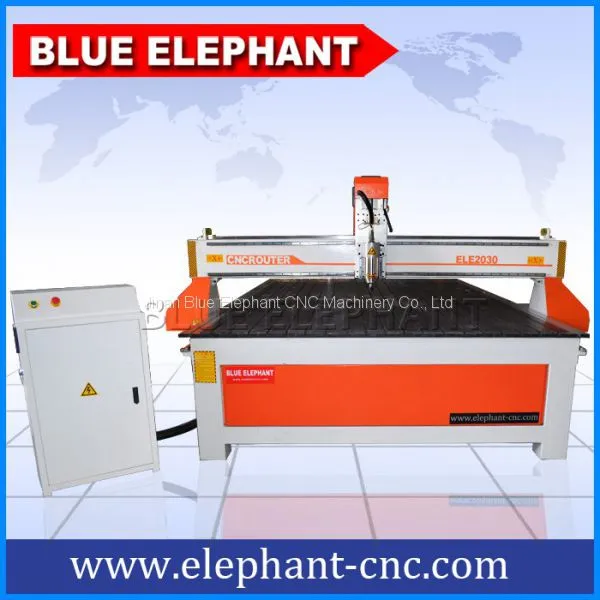

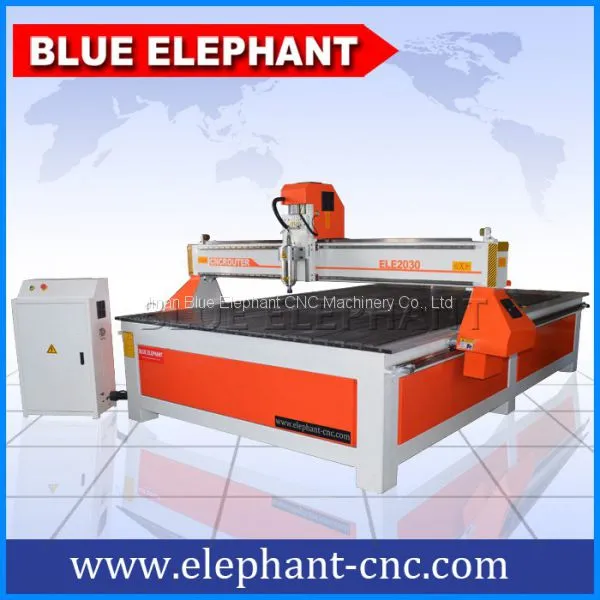

Help CenterELE2030 Costumised 3d Wood Cutting Woodworking Cnc Router
Related Products
-
1325 Wood Art Work Carving Engraving Cnc Router Machine for SaleUS$ 3000 - 7000MOQ: 1 Set -
2240 3 Axis Desktop Wood Cutting Cnc Router MachineUS$ 3500 - 7000MOQ: 1 Set
-
ELE1530 Cnc Carving Router Making Machine With T-slot Working TableUS$ 6500 - 7000MOQ: 1 Set
-
ELE1530 Z Axis Cnc Wood Cutter Cutting MachineUS$ 3500 - 7000MOQ: 1 Set
-
ELE1826 Cnc Woodwork Cutting Router With Large BedUS$ 3500 - 7000MOQ: 1 Set
Features:
Working area: 2000mm*3000mm *200mm
Steel gantry , strong structure
T-slot & PVC working table
3KW Changsheng water cooling spindle
3.7kw Fuling inverter
Z axis with Taiwan TBI Ball screw transmission
X,Y axis with high precision helical rack gear transmission
X,Y,Z axis with Taiwan TBI/PMI/HIWIN Linear Guide
Original NCstudio controller
FL118 stepper motor , YAKO 2608 driver
Double motors for Y axis
Oil lubrication system
Artcam /Type 3 software
Voltage:380V, 3phase, 50/60HZ(220v for optional)
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 2000*3000*200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | T-slot & PVC Table |
| Spindle | 3kw Changsheng water cooling spindle |
| X, Y Structure | #20Taiwan HIWIN Linear guide and helical rack |
| Z Structure | Ball screw and #20 Taiwan HIWIN Linear guide |
| Driver and Motor | Stepper |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Software | Artcam /Type 3 software |
| Spindle Speed | 0-24000RPM |
| Lubrication system | Manual |
| Inverter | 3.7kw Fuling Inverter |
| Command Language | G Code |
| Control System | NCstudio |
| Computer Interface | USB |
| Flash Memory | 512M(U Disk) |
| Collet | ER20 |
| X,Y Resolution | |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
PS:All the working area and specifications can be customized according to your requests.
Packageing and shipping
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment
Our clients
Our service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
