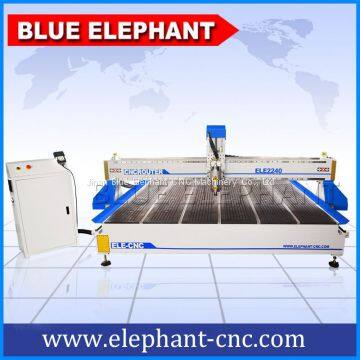

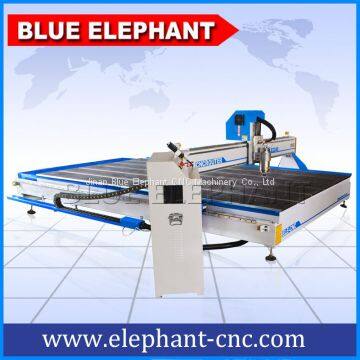

Help Center2240 3 Axis Desktop Wood Cutting Cnc Router Machine
Related Products
-
ELE1530 Cnc Carving Router Making Machine With T-slot Working TableUS$ 6500 - 7000MOQ: 1 Set -
ELE1530 Z Axis Cnc Wood Cutter Cutting MachineUS$ 3500 - 7000MOQ: 1 Set
-
ELE1826 Cnc Woodwork Cutting Router With Large BedUS$ 3500 - 7000MOQ: 1 Set
-
ELE2040 Combination Woodworking Cnc Router Machines For Wood CarvingUS$ 3500 - 7000MOQ: 1 Set
-
ELE1530 High Z Travel Cnc Engraving Machine For Wooden WorksUS$ 3500 - 7000MOQ: 1 Set
Features:
Effective working area: 2200*4000*200mm

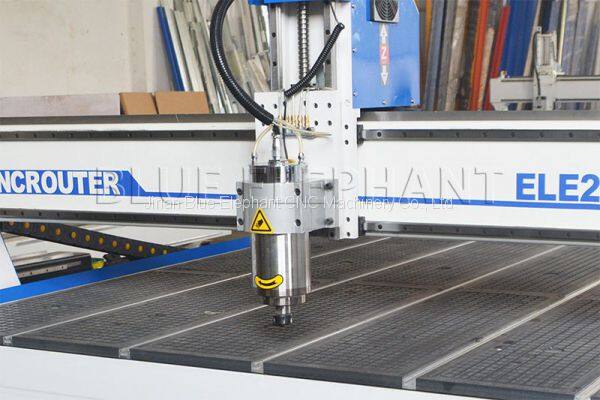

5.5KW water cooling spindle
DSP A11 control system
Stepper motor FL118 and YAKO 2608 driver

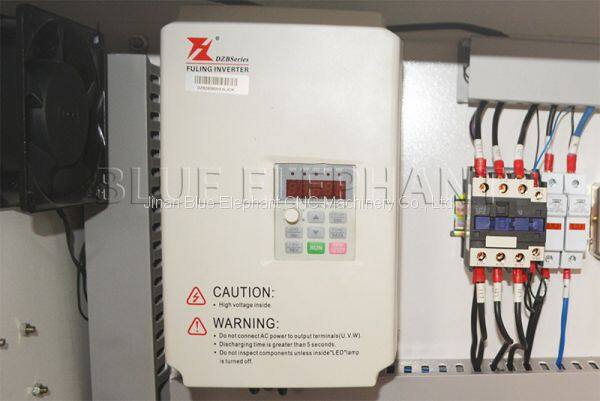

5.5KW Fuling inverter

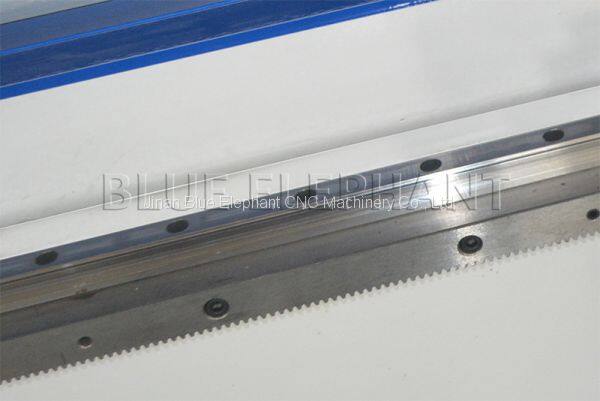

Helical rack
Taiwan TBI ball screw
Sweden ABBA square linear guide way for 20#
Artcam,Type3 software(one of them)

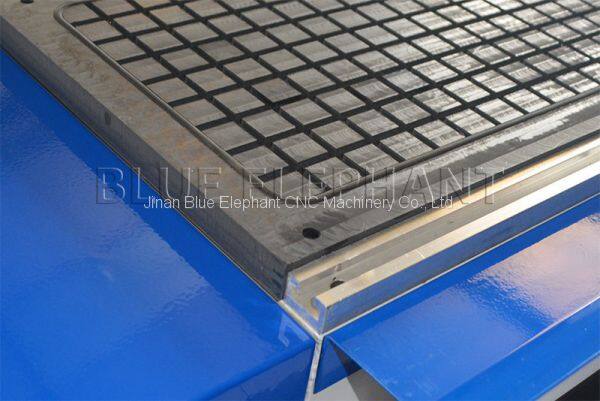

Vacuum & T-slot working table
Japan Omron limit switch
Working voltage: 380v 3phase 50HZ
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 2200*4000*200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| Table Surface | Vacuum & T-slot Working Table |
| X, Y Structure | Helical Rack gear, Sweden ABBA Linear Square Rail 20# |
| Z Structure | Taiwan TBI Ball Screw, Sweden ABBA Linear Square Rail 20# |
| Spindle Power | 5.5KW Changsheng water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | FL118 stepper motor and YAKO 2608 driver |
| Inverter | 5.5kw Fuling Inverter |
| Lubrication system | Manual lubrication system |
| Working Voltage | AC380V/50Hz,3PH (Option: 220V) |
| Operating System | DSP A11 Control System (Options: Ncstudio /Mach3 Software) |
| Control box | Single-sided indenpended control box |
| Pump | water circulation vacuum pump (380V, 3Ph, 50Hz) |
| Optional | Japan Omron limit switch |
PS:All the working area and specifications can be customized according to your requests.
Details
Packageing and shipping
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment
Our clients
Our service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
