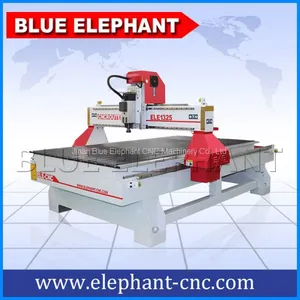

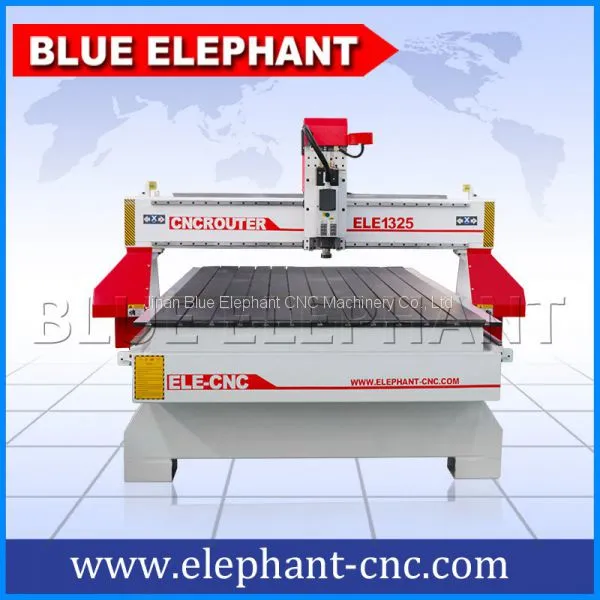

Help Center1325 Wood Working Cutting Cnc Machinery With Cheap Price
Related Products
-
1530 3 Axis Woodworking Machines for Wood Door Cabinet Furniture MakingUS$ 4200 - 7000MOQ: 1 Set -
ELE1536 Wood Cnc Router Woodworking Carving MachineUS$ 4000 - 7000MOQ: 1 Set
-
ELE1530 DSP Control Woodworking Cnc Router MachineryUS$ 3000 - 7000MOQ: 1 Set
-
ELE1325 3D Cnc Wood Router Machinery For WoodworkingUS$ 3000 - 7000MOQ: 1 Set
-
1212 3 Axis Cnc Router Cutting Carving MachineUS$ 3000 - 7000MOQ: 1 Set
Features:
10-12mm industrial class square tube strong bed. You can use our elephant cnc router more than 10 years.
T-slot working table, pvc protection. T-slot table surface is generally designed for acrylic, aluminum, pvc, pcb etc plastic or metal cutting, milling carving. We can also design vacuum and t-slot table for you, if you also need wood carving.
DSP A11 control, very easy operation and support offline which means that you can still operate even though meet power off.

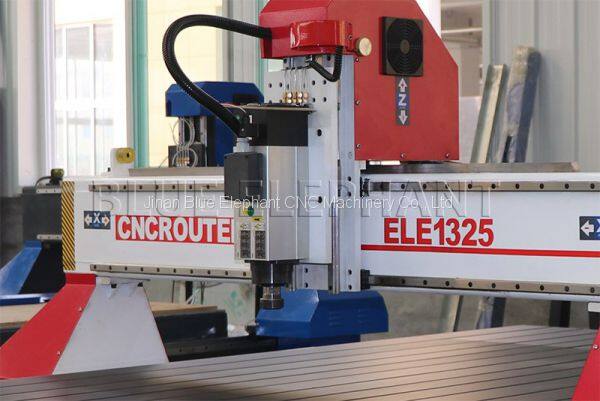

Italy HSD 7KW Air cooling spindle. International famous brand, good using and guaranteed after-sale service
Stepper motor. Big power supply. Servo motor for your option
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 1300*2500*200mm |

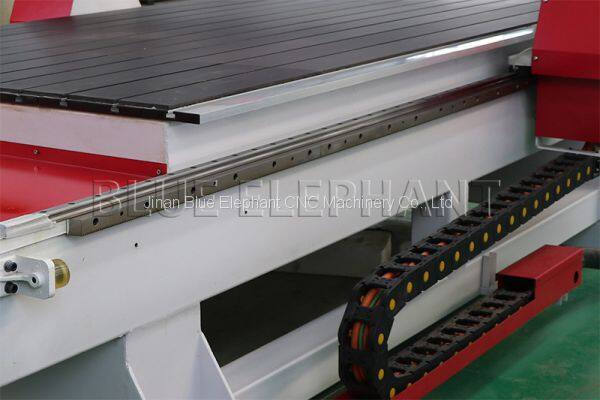

| Table Surface | T-slot working table |
| Structure | 10-12mm industrial class square tube strong structure |

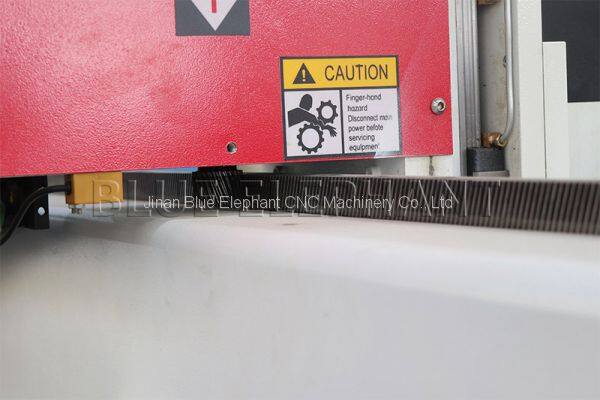

| X Y Z Structure | Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel;
all axis Sweden SKF group ABBA linear guide and rails, 20# |
| Max. Working Speed | 30000m/min |

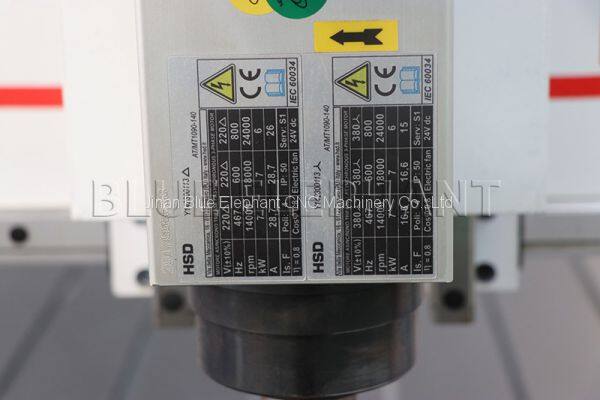

| Spindle | Original Italy HSD 7KW Air cooling spindle |
| Spindle Speed | 0-24000RPM |

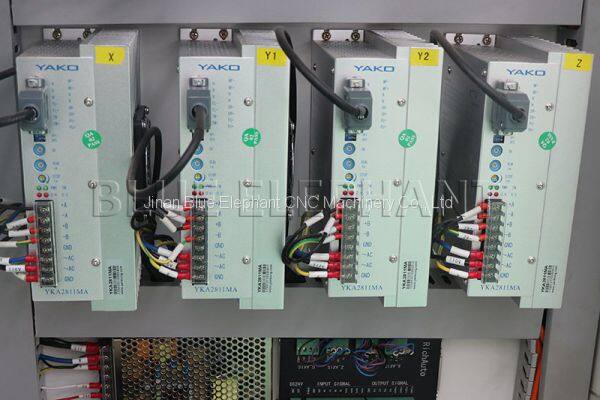

| Drive Motors | FL118 bigger stepper motor and YAKO2811 driver |

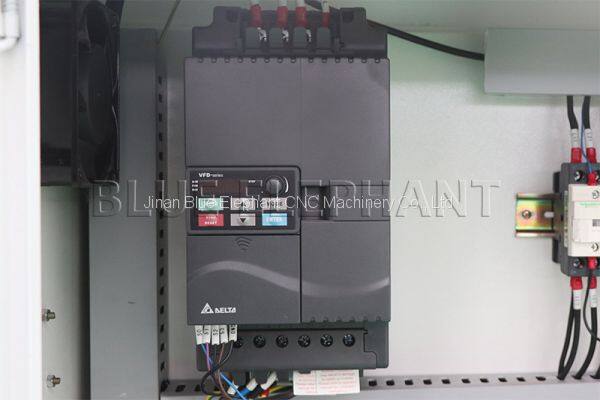

| Inverter | Taiwan DELTA 7.5KW inverter |
| Command Language | G Code |
| Control System | RichAuto DSPA11 handle controller with USB port |
| Computer Interface | USB |

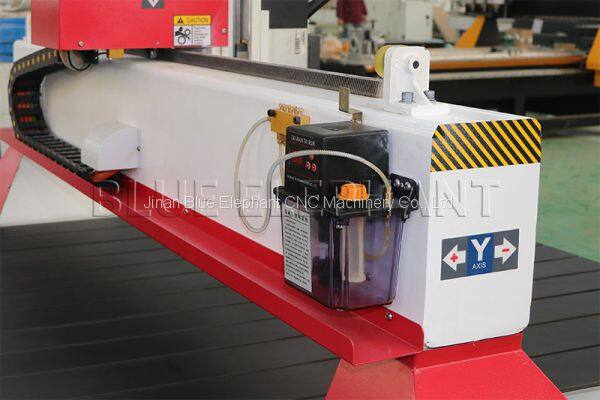

| Lubrication | Automatic Lubrication system |
| Tool sensor | Manual tool sensor calibration |
| X,Y Resolution | |
| Spare parts | Japan OMRON limit switch for X, Y, Z axis;
Highly flexible towline, fire-resistant double-sheathed Shanghai Cardiff cable; French Schneider electric parts; Independent control box; 1.5KW Double bags dust collector with CE Certificate; |
| Software Compatibility | Artcam 2012 software for free, (Option: Artcam Type3 Software) |
| Working voltage | 380V/50HZ/3PH |
| Accessories (for free) | 1 Tool Box 1
2 Woodworking Knife All type 21 Different size 3 collet 3.17, 4, 6, 12.7 4 4 Allen wrench M6 1 5 Open-end wrench 27-30 45-52 2 6 Certificate, CE 7 Adjustment screw 4 8 Clamps 8 9 Spanner, 3,4,5,6mm, 4 10 Fuse core 2 12 Software CD 1 |
PS:All the working area and specifications can be customized according to your requests.
Details
Packageing and shipping
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment
Our clients
Our service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
