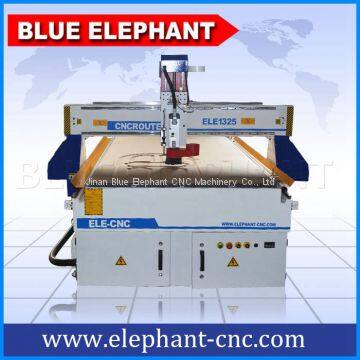

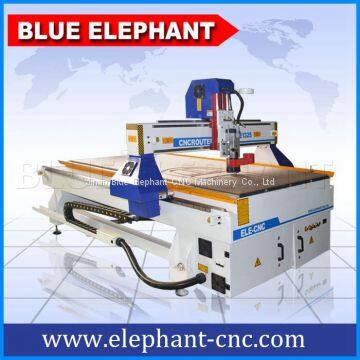

Help CenterELE1325 3D Cnc Wood Router Machinery For Woodworking
Related Products
-
1212 3 Axis Cnc Router Cutting Carving MachineUS$ 3000 - 7000MOQ: 1 Set -
ELE2030 Costumised 3d Wood Cutting Woodworking Cnc RouterUS$ 3000 - 7000MOQ: 1 Set
-
1325 Wood Art Work Carving Engraving Cnc Router Machine for SaleUS$ 3000 - 7000MOQ: 1 Set
-
2240 3 Axis Desktop Wood Cutting Cnc Router MachineUS$ 3500 - 7000MOQ: 1 Set
-
ELE1530 Cnc Carving Router Making Machine With T-slot Working TableUS$ 6500 - 7000MOQ: 1 Set
Features:

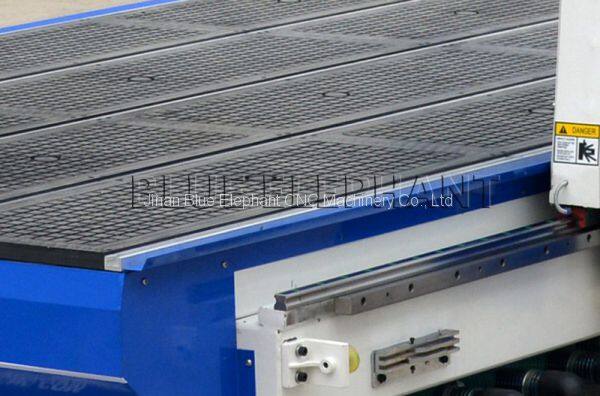

T-slot working table. Mechanical fixing small processing materials

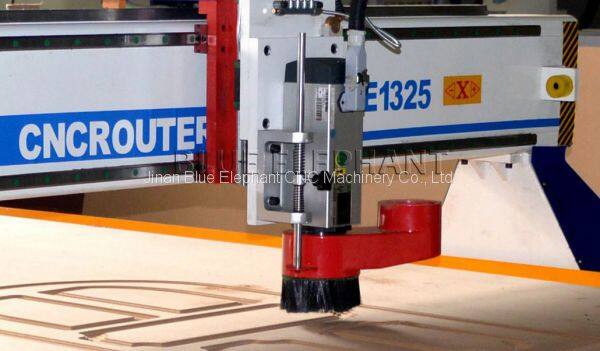

3kw air cooling spindle(top brand in China), It’s big strength and higher efficiency,
Dust collection system, it can keep a clean, less-dust working surrounding which is helpful to your healthy; also, it can reduce the surface dust of linear guide, ball screw and gear transmission, reducing the maintaining cost.
Parameters:
| NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x200mm |
| 2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 4 | Table Surface | T-slot Table |
| 5 | Frame | Welded Structure |

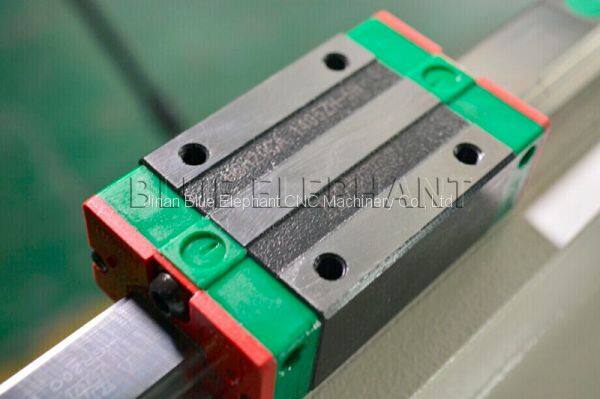

| 6 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |

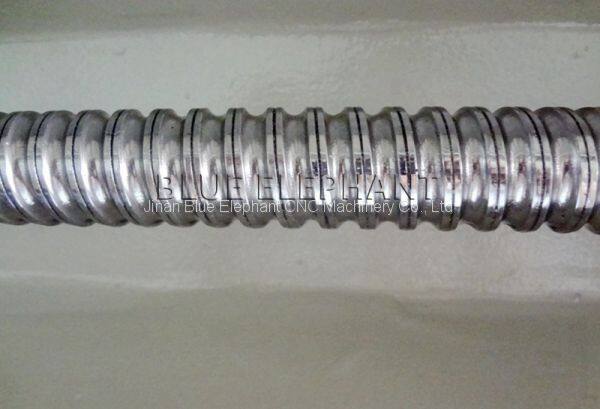

| 7 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 8 | Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
| 9 | Max. Rapid Travel Rate | 33000mm/min |
| 10 | Max. Working Speed | 25000mm/min |
| 11 | Spindle Power | 3KW air cooling spindle |
| 12 | Spindle Speed | 0-18000RPM |

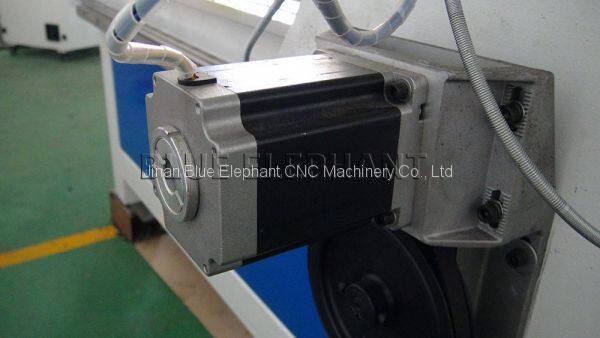

| 13 | Drive Motors | Stepper System |
| 14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 15 | Command Language | G Code |

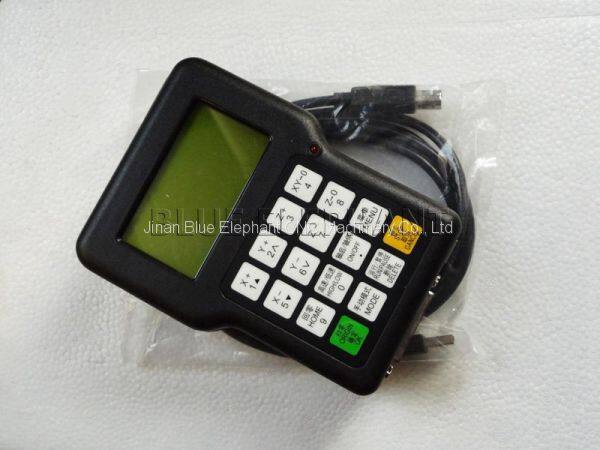

| 16 | Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
| 17 | Computer Interface | USB |
| 18 | Flash Memory | 128M(U Disk) |
| 19 | Collet | ER25 |
| 20 | X,Y Resolution | |
| 21 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| 22 | Running Environment Temperature | 0 – 45 Centigrade |
| 23 | Relative Humidity | 30% – 75% |
PS:All the working area and specifications can be customized according to your requests
Details
Packageing and shipping
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment
Our clients
Our service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
