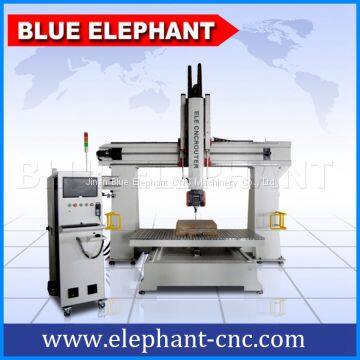

Help CenterELE1224 5 Axis Mould Engraving Cnc Router
Related Products
-
ELE1530 Cnc Stone Engraving Router MachineUS$ 4500 - 6000MOQ: 1 Set -
ELE2030 Double Separate Heads Stone Cutting and Carving MachineUS$ 4500 - 7000MOQ: 1 Set
-
ELE1324-4 Cnc Router 4 Axis for Stone and WoodUS$ 4500 - 6000MOQ: 1 Set
-
ELE1325 Stone Engraving MachineUS$ 4500 - 7000MOQ: 1 Set
-
ELE-1325 Stone Cutting Machine Cnc RouterUS$ 4500 - 6000MOQ: 1 Set
Features:
With OSAI numerical control system, high machining accuracy and high speed. The Japan THK rails.and the Germany original rotating arm ensure the accuracy and strength of the mechanical
Z-axis travel can be heightened to 2.1 meters, so that very suitable for processing large-scale three-dimensionalsurface. Intelligent processing cross-border protection function can prevent mechanical collision due to excessive processing of design file.
Diversified control processing speed can control the working speed, traveling speed, dropping tool speed, lowering tool speed, greatly improve the quality and efficiency
Parameter:
| Item | Description | |
| Model | ELE-1224 5 axis cnc router | |
| Movement type | Movable table | |
| X working area (MM) | 2400 | |
| Y working area (MM) | 1200 | |
| Z working area (MM) | 900 | |
| C travelling | ±213° | |
| A travelling | ±120° | |
| Beam spacing(MM) | 4260 | |
| Beam Height(MM) | 2150 | |
| Vacuum pump | Germany Becker pump | |
| Supplier for Double pendulum head | 10.0 KW Italian HSD | |
| Range of speeds | 22000 RPM/min | |
| Servo Motor brand | YASKAVA | |
| Table size (MM) | 1200*2400 | |
| Product fixed form | Vacuum table | |
| Tool magazine | 8 positions Carousel Tool Storage | |
| Control system | OSAI | |
| Machine size | 3600*4000*3500mm | |
| Total weight | 12T | |
| Total Power(kw) | 24KW | |
| Voltage | AC380V/60HZ | |
| Maximum lifting weights | 20T | |
| File exchange | G code | |
| Maximum speed | X Axis | 45m/min |
| Y Axis | 45m/min | |
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
