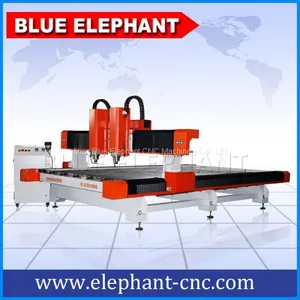

Help CenterELE2030 Double Separate Heads Stone Cutting and Carving Machine
Related Products
-
ELE1324-4 Cnc Router 4 Axis for Stone and WoodUS$ 4500 - 6000MOQ: 1 Set -
ELE1325 Stone Engraving MachineUS$ 4500 - 7000MOQ: 1 Set
-
ELE-1325 Stone Cutting Machine Cnc RouterUS$ 4500 - 6000MOQ: 1 Set
-
ELE1530 Cnc Stone Engraving Router MachineUS$ 4500 - 6000MOQ: 1 Set
-
ELE3050 Styrofoam EPS 5 Axis Cnc CutterUS$ 4000 - 6000MOQ: 1 Set
Advantages:
Double heads, each spindle 6.5KW water cooling, 24000RPM, ER32
Stainless steel water tank with mist cooling sprayer for working on stone and metal
All axis with dust proof cover
Taiwan Linear guide #25 , Taiwan ball screw
Parameters:
| Descriptions | Parameters |
| Modle | ELE2030DS-S |
| Working area | 2000*3000*300mm |
| Working voltage | AC380V, 3Ph, 50Hz (Optional: 220V) |
| Control system | DSP A11 control system |
| Control box | Independent double-sided control box with French Schneider rotary handle |
| Spindle | 2 sets 6.5kw Changsheng water cooling spindle |
| Spindle speed | 0-24000rpm |
| Collet | ER32 |
| Industrial chiller | CW-3000 |
| Motor | FL118 stepper motor |
| Driver | YAKO 2811 big driver |
| Inverter | 7.5kw Fuling inverter |
| Table surface | T-slot working table with water tank |
| Frame | New type thicker and bigger heavy duty welded frame and gantry |
| Lubrication system | Manual lubrication system |
| Sprayer | Water mist cooling sprayer |
| Transmission | X/Y rack and pinion drive
Z Taiwan TBI ball screw |
| Linear rail | Taiwan PMI linear square guide #25 |
PS:All the working area and specifications can be customized according to your requests.
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
