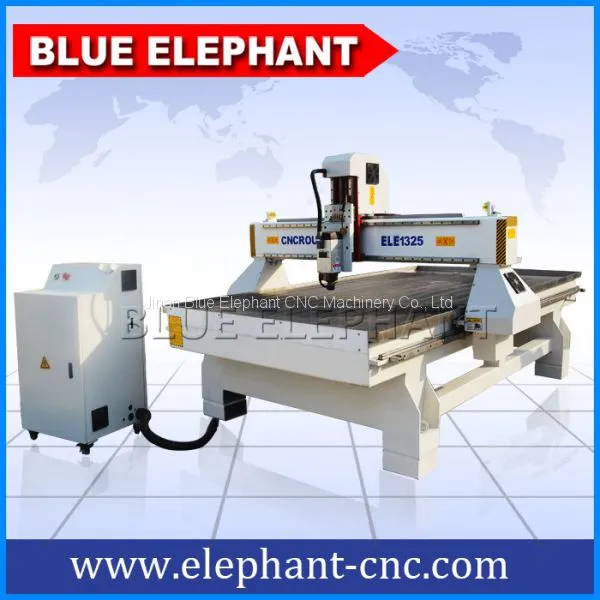

Help CenterELE1325 Stone Engraving Machine
Related Products
-
ELE-1325 Stone Cutting Machine Cnc RouterUS$ 4500 - 6000MOQ: 1 Set -
ELE1530 Cnc Stone Engraving Router MachineUS$ 4500 - 6000MOQ: 1 Set
-
ELE2030 Double Separate Heads Stone Cutting and Carving MachineUS$ 4500 - 7000MOQ: 1 Set
-
ELE1324-4 Cnc Router 4 Axis for Stone and WoodUS$ 4500 - 6000MOQ: 1 Set
-
ELE3050 Styrofoam EPS 5 Axis Cnc CutterUS$ 4000 - 6000MOQ: 1 Set
Features:
Imported high-precision ball screw gap, smooth movement, to ensure the machine tools high precision.
High performance driver motor to ensure that the machines high speed and accuracy.
Adopt YAKO 2811 big driver.
Parameters：
| Descriptions | Parameters |
| Modle | ELE1325S |
| Working area | 1300*2500*200mm |
| Voltage | 380V, 3phase, 50/60Hz |
| Control system | DSP A11 control system |
| Spindle | 4.5kw air cooling spindle |
| Spindle speed | 0-18000RPM |
| Inverter | 5.5kw FULING inverter |
| Motor | FL118 stepper motor |
| Driver | YAKO 2811 driver |
| Linear rail | Taiwan #25 HIWIN linear guide |
| X,Y axis transmission | X,Y axis rack and pinion drive |
| Z axis transmission | Z axis Taiwan TBI ball screw |
| Table surface | T-slot working table |
| Table structure | Bigger heavy duty welded frame and gantry |
| Opintion | 1.5mm SS tray, mist cooling sprayer |
PS:All the working area and specifications can be customized according to your requests.
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included
