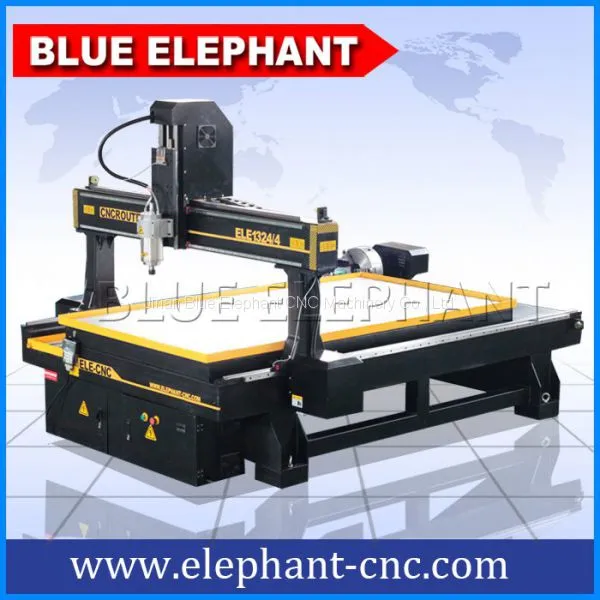

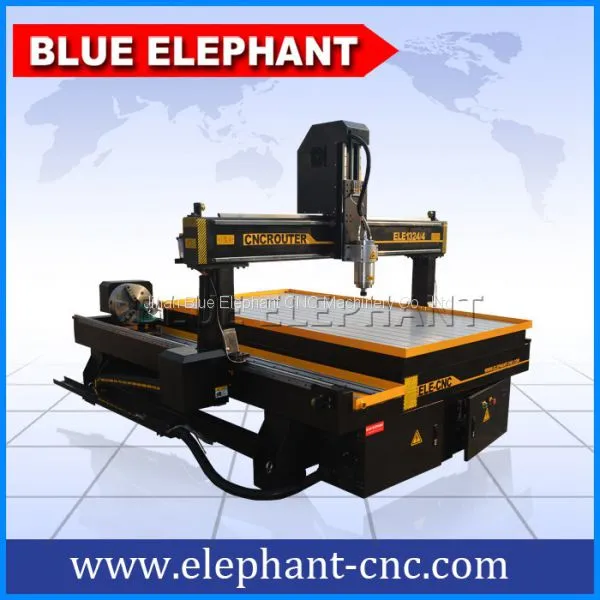

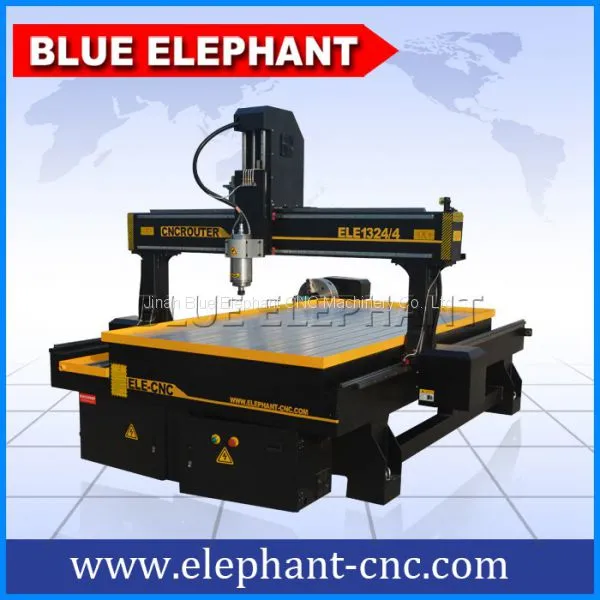

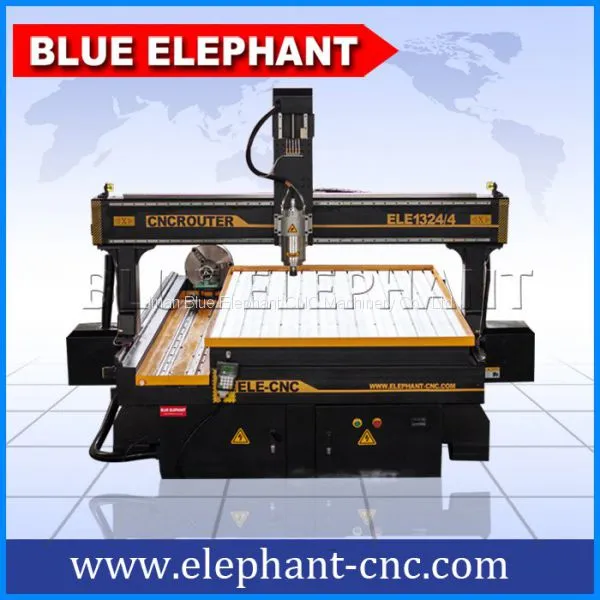

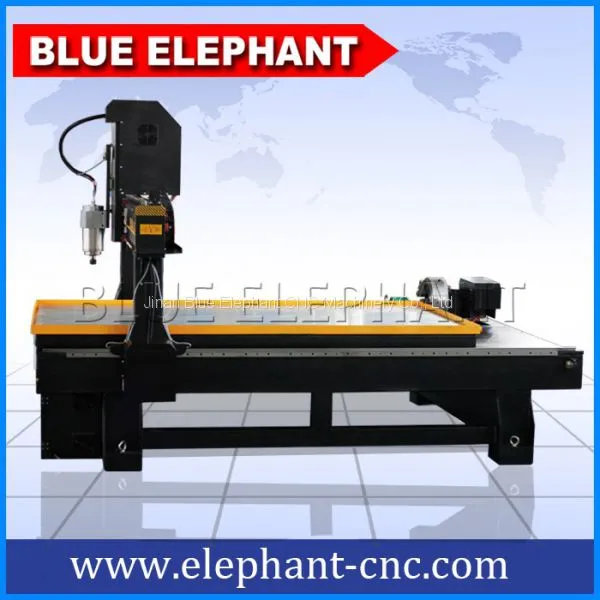

Help CenterELE1324-4 Cnc Router 4 Axis for Stone and Wood
Related Products
-
ELE1325 Stone Engraving MachineUS$ 4500 - 7000MOQ: 1 Set -
ELE-1325 Stone Cutting Machine Cnc RouterUS$ 4500 - 6000MOQ: 1 Set
-
ELE1530 Cnc Stone Engraving Router MachineUS$ 4500 - 6000MOQ: 1 Set
-
ELE2030 Double Separate Heads Stone Cutting and Carving MachineUS$ 4500 - 7000MOQ: 1 Set
-
ELE3050 Styrofoam EPS 5 Axis Cnc CutterUS$ 4000 - 6000MOQ: 1 Set
Advantage:
DSP A18 4 axis control ststem
Well suitable for processing stone ,wood

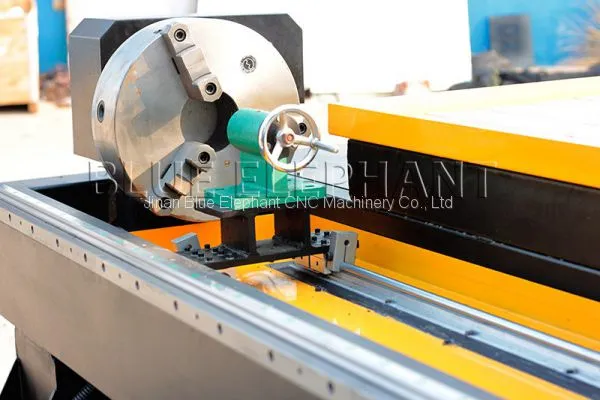

The diameter of rotary axis is 300mm
The sink table of rotary device is made of stainless steel
Z axis is 400mm,Processing different materials
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 1300x2400x400mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | T-slot Table |
| Frame | Welded Structure |
| X, Y Structure | #20 HINWIN linear guide,helical rack |
| Z Structure | Hiwin Rail Linear guide and Ball Screw |
| Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |

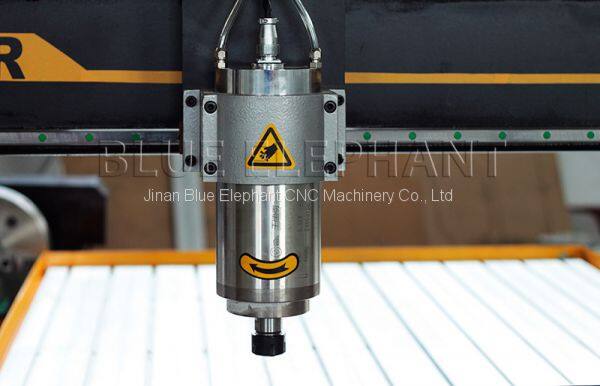

| Spindle Power | 5.5 KW |
| Spindle Speed | 0-24000RPM |

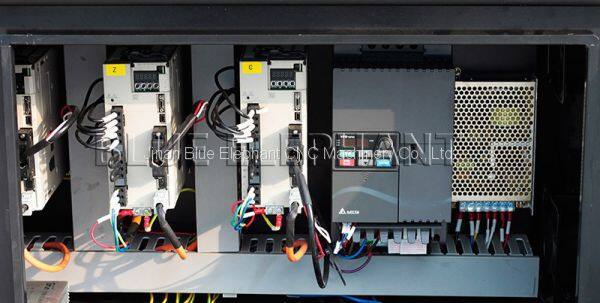

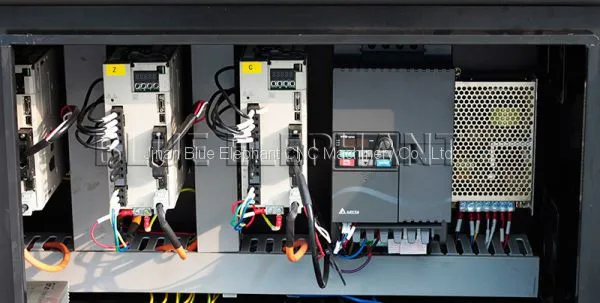

| Drive Motors | YASKAWA |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |

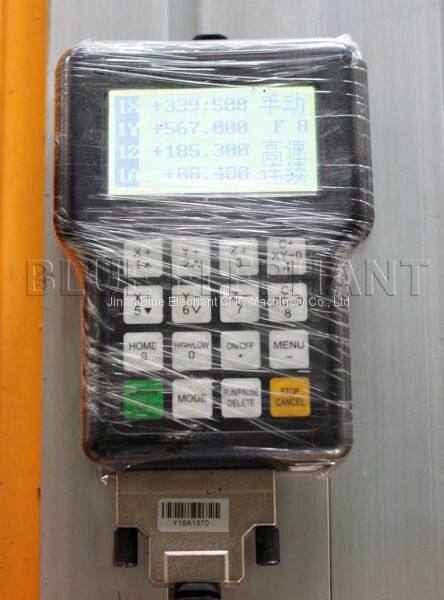

| Operating System | DSP A18 4 axis control system |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collet | ER25 |
| X,Y Resolution | |
| Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
PS: All the working area and specifications can be customized according to your requests
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
