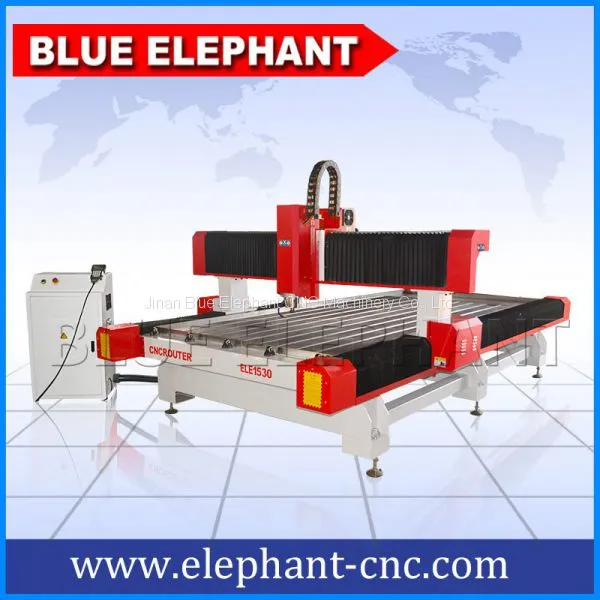

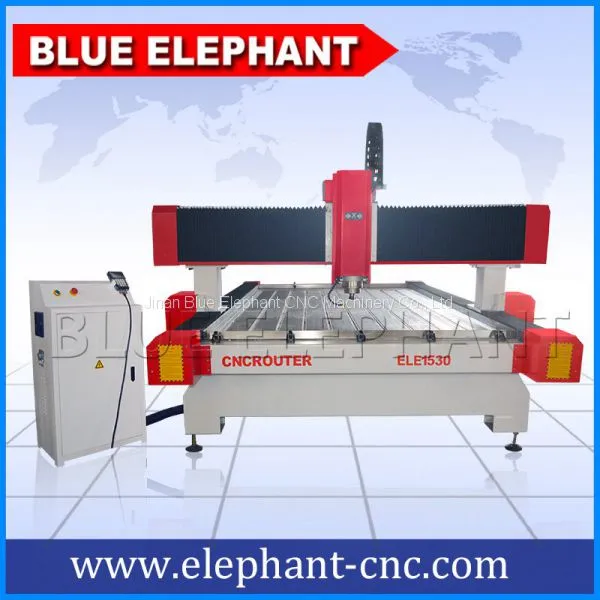

Help CenterELE1530 Cnc Stone Engraving Router Machine
Related Products
-
ELE2030 Double Separate Heads Stone Cutting and Carving MachineUS$ 4500 - 7000MOQ: 1 Set -
ELE1324-4 Cnc Router 4 Axis for Stone and WoodUS$ 4500 - 6000MOQ: 1 Set
-
ELE1325 Stone Engraving MachineUS$ 4500 - 7000MOQ: 1 Set
-
ELE-1325 Stone Cutting Machine Cnc RouterUS$ 4500 - 6000MOQ: 1 Set
-
ELE3050 Styrofoam EPS 5 Axis Cnc CutterUS$ 4000 - 6000MOQ: 1 Set
Features:
Heavy duty steel machine bed, it’s very strong and stability;
Powerful 5.5kw water cooling spindle, perfect working for stone carving;
With DSP A11 control system, without connect with computer and easy to operation.
Parameters:
| Descriptions | Parameters |
| Model | ELE1530S |
| Working area | 1500*3000*200mm |
| Working voltage | AC220V, 3Ph, 60Hz (Optional: 380V) |
| Control system | DSP A11 control system |
| Control box | Independent single-sided control box |

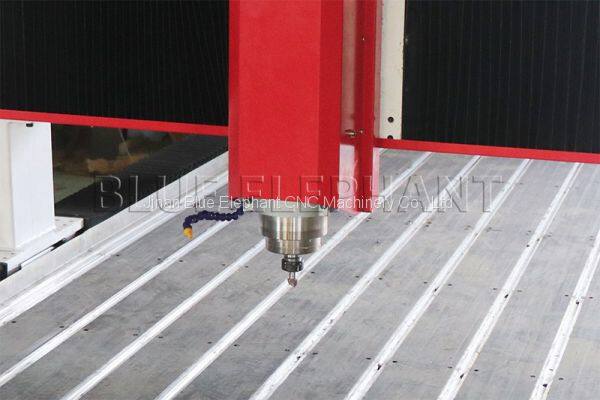

| Spindle | 5.5kw Changsheng water cooling spindle |
| Spindle speed | 0-24000rpm |
| Motor | FL118 stepper motor |
| Driver | YAKO 2811 big driver |

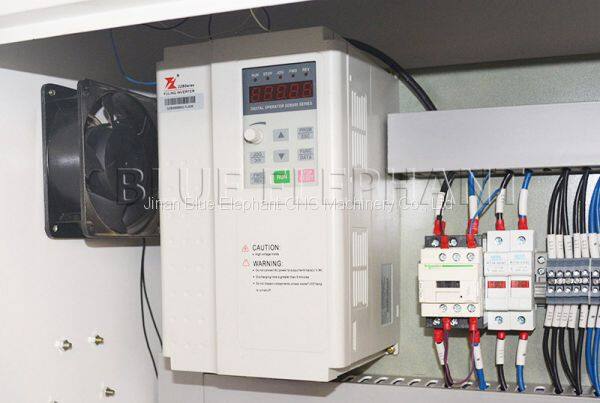

| Inverter | 7.5kw Fuling inverter |

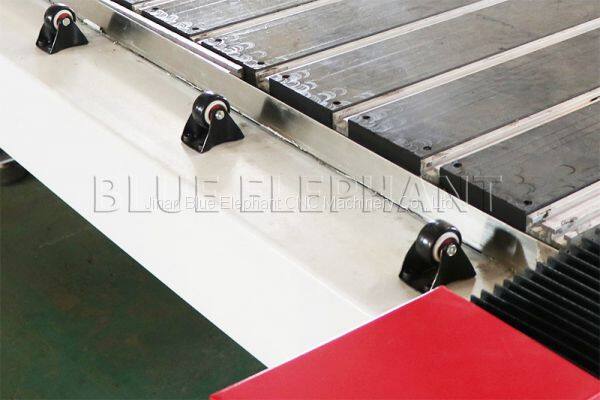

| Table surface | T-slot working table with water tank |
| Frame | New type thicker and bigger heavy duty welded frame and gantry |
| Lubrication system | Manual lubrication system |
| Transmission | X/Y rack and pinion drive
Z Taiwan TBI ball screw |
| Linear rail | ABBA linear square guide #25 |
| Software | ARTCAM |
PS:All the working area and specifications can be customized according to your requests.
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
