ELE1826 High Z Travel Cheap Price Cnc Router
US$ 4500 - 6000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ELE1826
Place of Origin:
China
Model Number:
ELE1826
Payment & Shipping
Payment Methods:
Port of Shipment:
Negotiation
Delivery Detail:
15 days
Related Products
-
1020 High Z Axis Woodworking Cnc MachineUS$ 4500 - 9000MOQ: 1 Set -
1530 Syntec Controlled 3 Axis CNC Router MachineryUS$ 5000 - 8000MOQ: 1 Set
-
3 Axis 1550 Woodworking Cnc Router Machine for MDF CuttingUS$ 5600 - 7000MOQ: 1 Set
-
1325 Wood Working Cutting Cnc Machinery With Cheap PriceUS$ 4500 - 7000MOQ: 1 Set
-
1530 3 Axis Woodworking Machines for Wood Door Cabinet Furniture MakingUS$ 4200 - 7000MOQ: 1 Set
Brand Name
ELE1826
Place of Origin
China
Model Number
ELE1826
Certification
CE SGS
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
ACCORDINGLY
Dimension(L*W*H)
1830*2600*300mm
Voltage
380v/3ph/50HZ
Condition
New
Power(W)
ACCORDINGLY
CNC or Not
CNC
Advantages:
- Heavy duty structure , air cooling spindle.
- Complete vacuum table, you can fix the material by vacuum pump.
- DSP handle controller with USB interface, it’s off line operate. when the power is cut off, it can continue to process from where it stop.
Parameters:
| Descriptions | Parameters |
| Modle | ELE1826 |
| Working area | 1830*2600*300mm |
| Control system | Richauto DSP A11 control system |
| Working Voltage | 380V, 3Ph, 50Hz (220V for optional) |
| Spindle | 4.5kw Chinese brand HQD air cooling spindle |
| Spindle speed | 0-18000rpm |

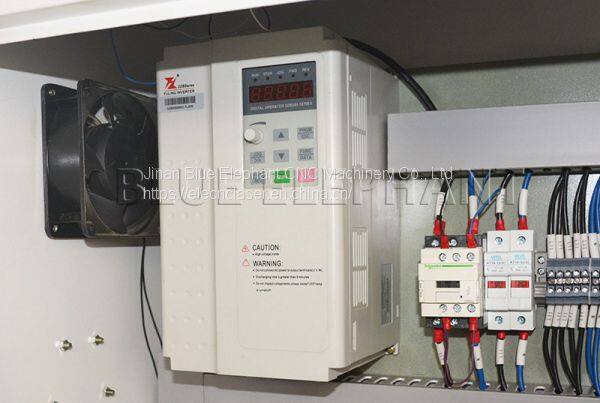

| Inverter | 5.5kw Fuling inverter |

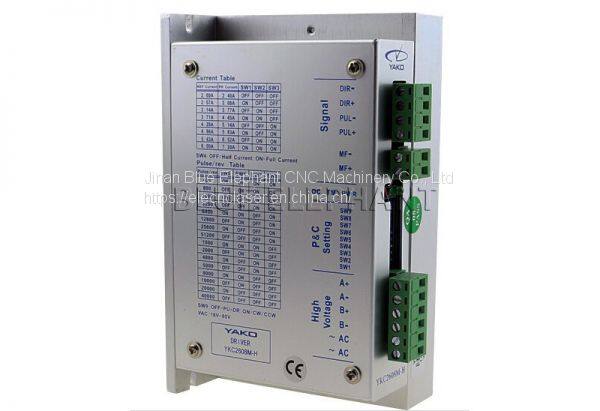

| Motor and Driver | FL118 stepper motor and Yako 2608 driver |
| Table surface | T-slot and vacuum working table |
| Structure | New type thicker and bigger heavy duty welded frame and gantry |
| Lubrication system | Manual lubrication system |
| Transmission | X,Y axis: rack and pinion drive
Z axis: Taiwan TBI ball screw X,Y,Z axis: Taiwan HIWIN linear square rail #20 |
| Control box | Inner box |
| Collet | ER25 |
PS: All the working area and specifications can be customized according to your requests.
