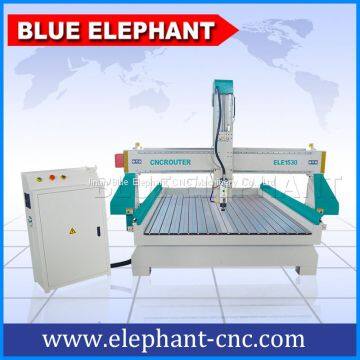

Help CenterELE1530 Z Axis Cnc Wood Cutter Cutting Machine
Related Products
-
ELE1826 Cnc Woodwork Cutting Router With Large BedUS$ 3500 - 7000MOQ: 1 Set -
ELE2040 Combination Woodworking Cnc Router Machines For Wood CarvingUS$ 3500 - 7000MOQ: 1 Set
-
ELE1530 High Z Travel Cnc Engraving Machine For Wooden WorksUS$ 3500 - 7000MOQ: 1 Set
-
ELE2040 3 Axis Wooden Woodworking Cnc Cutting Engraving Router MachineUS$ 3500 - 7000MOQ: 1 Set
-
ELE1836 3d High Speed Cnc Carving Machine With T-slot Vacuum TableUS$ 3500 - 7000MOQ: 1 Set
Features:

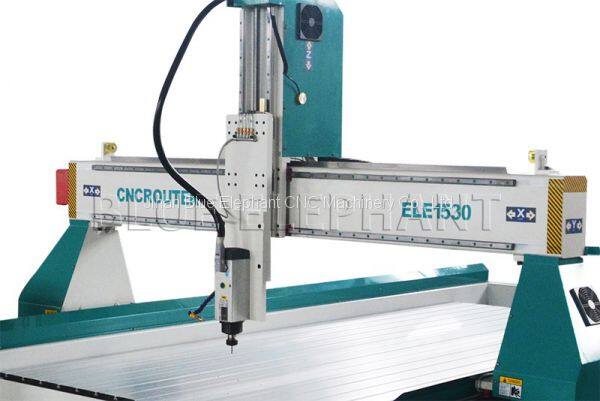

- 1500*3000*500mm, Table sink, working size Steel gantry, big and thick 6mm square tube, heavy structure for wood, acrylic, hard PVC, aluminum, stone.
- 3 kw HSD air cooling spindle ,Originally imported from Italy , 18000RPM, best brand, has good after-sale service.

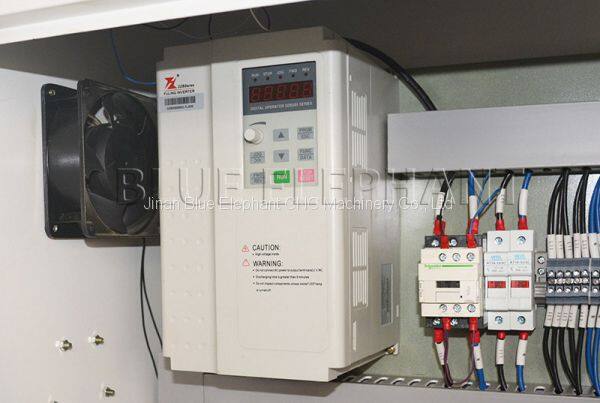

- 3.7 kw Fuling inverter Best quality in china, More stable performance.
- DSP A 11 control system Very popular among our customer’s, also with the best quality in the world.
- Fl 118 with YAKO 2811 driver 4 sets in total, double motors for Y axis, famous brand in step system World.
- Taiwan 20 mm HIWIN linear rails Famous brand, can improve high precision, smooth transmission,fast speed, low noise, and it has 10 times longer life than common rail way.
- Helical rack gears for X,Y axis 1.25M, big loading capacity, very powerful for machine, long lifetime.
- Taiwan TBI ball screw for Z axis Accurate precision, smooth transmission.
- T- slot work table Double-use type: vacuum table can use big power to absorb big material like wood door, very convenient; T-slot table can help fix small materials by clamps.
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 1500*3000*500mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| Table Surface | T-slot Working Table with PVC protection |
| Frame | New type thicker and bigger heavy duty welded frame and gantry |
| X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Rail 20# |
| Z Structure | Taiwan TBI Ball Screw, Taiwan Hiwin/PMI Rail Linear Rail 20# |
| Spindle Power | 3KW Italy HSD air cooling spindle |
| Spindle Speed | 0-18000RPM |
| Drive Motors | FL118 stepper motor and Yako 2811 big driver |
| Inverter | 3.7kw Fuling Inverter |
| Lubrication system | Manual lubrication system |
| Working Voltage | AC220V, 1Ph, 60Hz (Option: 380V) |
| Operating System | DSP A11 Control System |
| Control box | Single-sided indenpended control box |
| Dust collector | 1.5kw double pockets dust collector (AC220V, 1Ph, 60Hz) |
| Optional | Japan Omron limit switch
ARTCAM 2012 software high flexible towline, fire-proof double-sheathed cable |
PS:All the working area and specifications can be customized according to your requests.
Details
Packageing and shipping
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment
Our clients
Our service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
