Help CenterELE1826 Cnc Woodwork Cutting Router With Large Bed
Related Products
-
ELE2040 Combination Woodworking Cnc Router Machines For Wood CarvingUS$ 3500 - 7000MOQ: 1 Set -
ELE1530 High Z Travel Cnc Engraving Machine For Wooden WorksUS$ 3500 - 7000MOQ: 1 Set
-
ELE2040 3 Axis Wooden Woodworking Cnc Cutting Engraving Router MachineUS$ 3500 - 7000MOQ: 1 Set
-
ELE1836 3d High Speed Cnc Carving Machine With T-slot Vacuum TableUS$ 3500 - 7000MOQ: 1 Set
-
ELE1325 3D 4x8ft Cnc Engraving Cutter Wood Carving MachineryUS$ 3000 - 7000MOQ: 1 Set
Advantages:
- Heavy duty structure , air cooling spindle.
- Complete vacuum table, you can fix the material by vacuum pump.
- DSP handle controller with USB interface, it’s off line operate. when the power is cut off, it can continue to process from where it stop.
Parameters:
| Descriptions | Parameters |
| Modle | ELE1826 |
| Working area | 1830*2600*300mm |

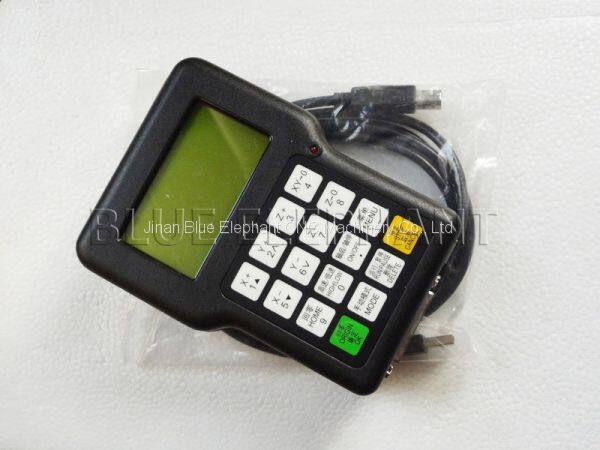

| Control system | Richauto DSP A11 control system |
| Working Voltage | 380V, 3Ph, 50Hz (220V for optional) |

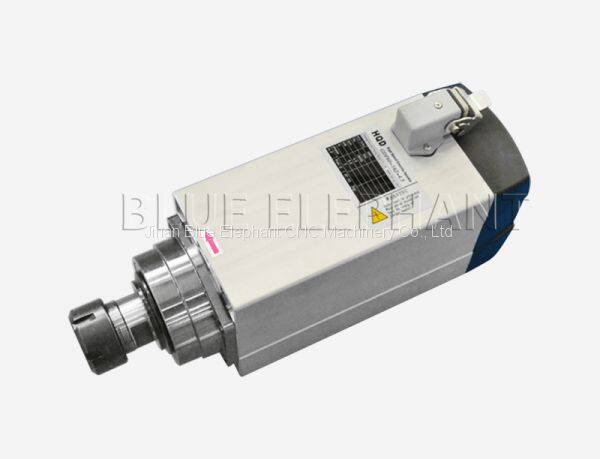

| Spindle | 4.5kw Chinese brand HQD air cooling spindle |
| Spindle speed | 0-18000rpm |
| Inverter | 5.5kw Fuling inverter |

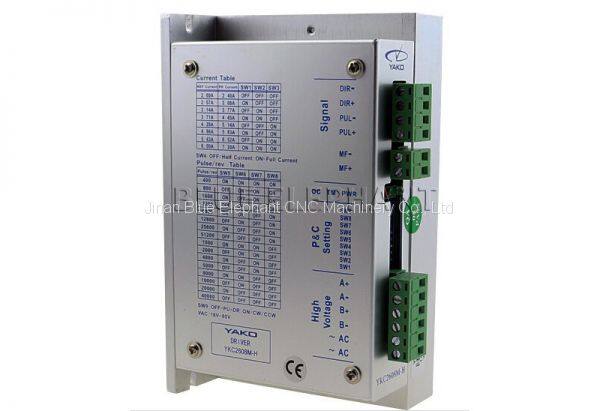

| Motor and Driver | FL118 stepper motor and Yako 2608 driver |
| Table surface | T-slot and vacuum working table |
| Structure | New type thicker and bigger heavy duty welded frame and gantry |
| Lubrication system | Manual lubrication system |

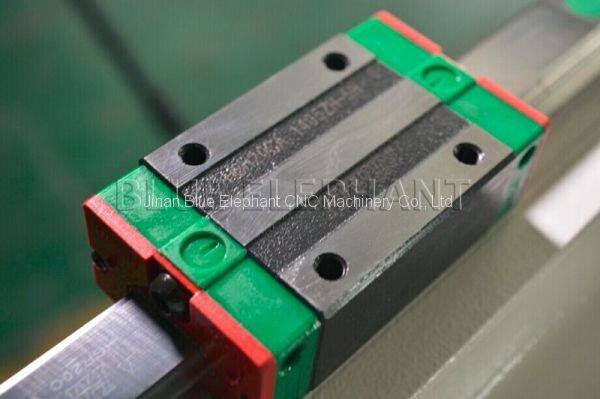

| Transmission | X,Y axis: rack and pinion drive
Z axis: Taiwan TBI ball screw X,Y,Z axis: Taiwan HIWIN linear square rail #20 |
| Control box | Inner box |
| Collet | ER25 |
PS: All the working area and specifications can be customized according to your requests.
Details
Packageing and shipping
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment
Our clients
Our service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Contact us
Email: manager@elephant-cnc.com
skype: elephantcnc
WhatsApp/Mobile: 0086-15064026772
