Home > Products > 11. USB & Video Endoscope Camera > EA350 0.35MP Video Endoscope Eyepiece Camera Equipped With Matching Lens

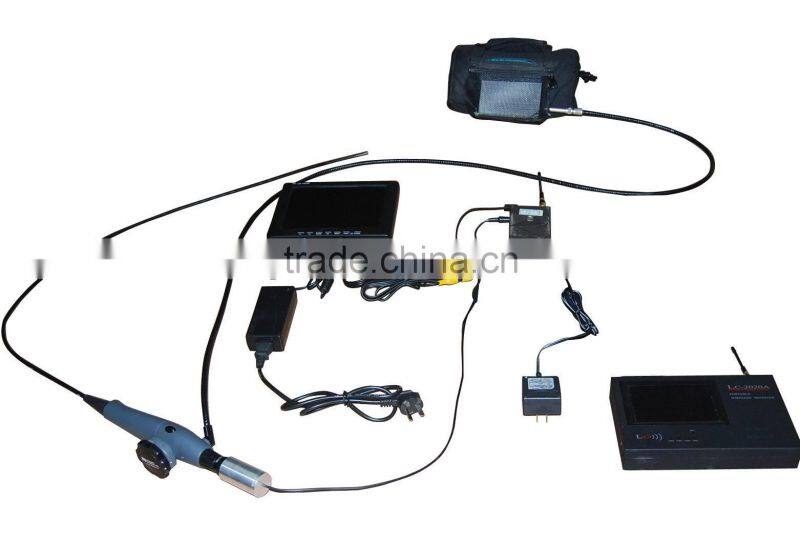

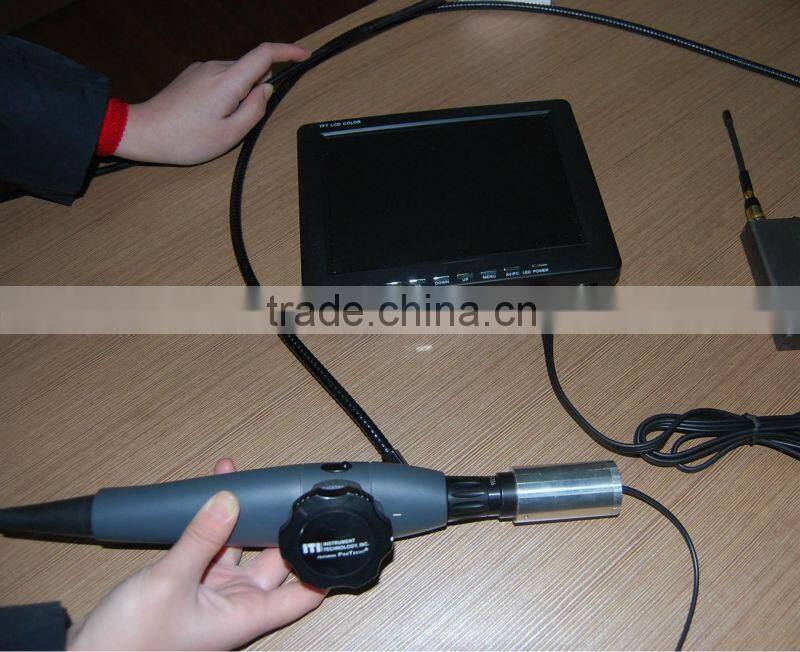

EA350 0.35MP Video Endoscope Eyepiece Camera Equipped With Matching Lens
- Hangzhou Shanghai
- T/T Money Gram Credit Card
You May Like
-
MDA2000-ENDO 2.0MP Endoscope USB Digital Camera Equipped With Matching Lens and Powerful Imaging Software
-
0.35MP Top and Bottom LED Lighting TV Set Video Stereo Microscope
-
0.35 MP VMA35P-TZ45 Video Stereo Microscope Equipped With Microscope Eyepiece Camera
-
2.0MP Wireless Control Portable Digital Microscope With LCD Screen
-
2.0MP Wireless Control Portable Digital Microscope With LCD Screen
-
Portable USBdigital Electron Microscope Prices
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Future Optics | |
| Model Number | EA350N |
Product Description
EA350-N is capable of capturing detailed, full color images collected by a endoscope, and to create clear views on your TV screen or monitor.
You'll find that ths inexpensive ,yet capable and easy to use video camera will enhance all of your inspecting job with your endoscope.
♦Function:
To convert endoscope into video scope .No squinting with one eye, just enjoying preview on screen .
♦Quality control:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
♦OEM/ ODM:
Available to designand make on clients' specification.
Including:
Logo package printing;
Optical system design;
PCB imaging module design;
Shell and adapter design to match connection with a endoscope;
Capture Mode | Video |
Max. Video | 510*496 |
Eyepiece Adapter Size | 31.75mm, |
Power Supply | 5V DC |
Device Weight | 0.36kg |
Device Size | Φ30.0mm*55.0mm |
Cable length | 1.5m |
Active pixels | NTSC output:510*496 |
Pixel Size | 5.6µm*5.6µm |
Responsivity | 11.5V/lux-sec |
Dynamic Range | 80dB |
S/N Ratio | 45dB |
Spectral Range | 400-650nm(with IR-filter) |
Frame Rate | NTSC:60fps |
Video resolution | NTSC:510*496 |
Imaging area | 3.584mm*2.588mm |
Power Consumption. | 350mW |
White Balance | Auto Control |
