Specifications
Conjugate system:40X, 240XAchromatic objective
Inclined illumination of 8 LED
1600*1200 for image & moive
Win8,Mac
♦Features:
1. Digital imaging module:2.0MP high performance CMOS imaging module;
2. Imaging software: Future Win Joe image & movie capturing and processing program
3. Optical conjugation imaging module: One set of lenses offers two optical magnifications: 2.5X and 0.4X;
4. Zoom and focus mechanism: Big focus wheel and double helix rail design offers smooth and fine adjustment of focus;
5. Uniform illumination part: Falling–in ring–lighting panel with 8 LED lamp.
6. Calibration ruler: 0.1mm/10mm calibrating slide.
♦Applications:
To measure the fine size which you cannot measure with a vernier scale and to check the tiny defects you cannot find by your human eye.
To measure the size of a tiny gap of a metal camera adapter and to take pictures of the metal camera surface texture for evaluation of quality, including surface roughness, contour, form, waviness and defects.
Calibration:
With a 10mm/ 0.1mm glass micro ruler (Figure 1), to calibrate the movable reticle of the software (Figure 2).
Figure 1 A 10mm / 0.1mm ruler Figure 2 A movable reticle of Future Win Joe
Figure 3 Calibration of vertical line at 40X Figure 4 Calibration of vertical line at 240X
Household and Hobby tool
To check and to discover the microscopic world around you for fun.
Figure 5: Tiny spot of pathogenic bacteria on garden flower at 240X

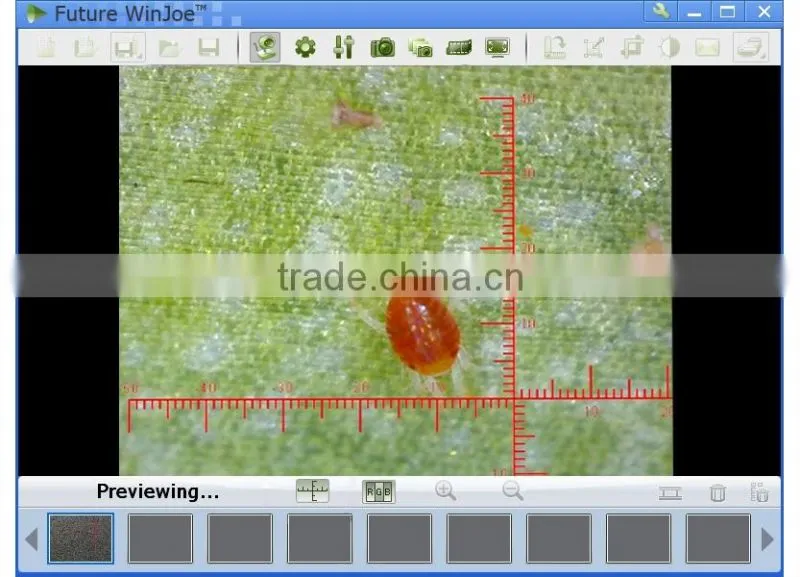

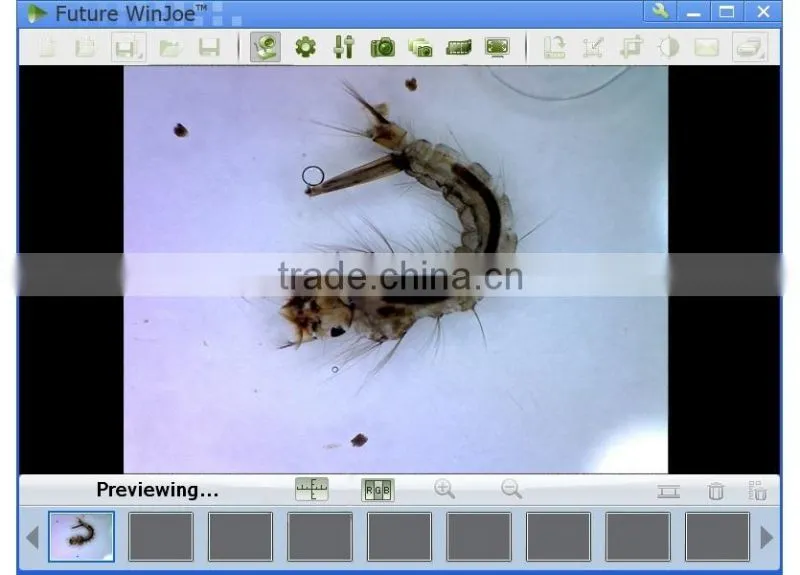

Figure 6: movable beetle on leaf at 240X Figure7: Larva of mosquito at 40X.
♦Detail Specifications:
Capture Mode |
Picture and Video |
Sensor Parameter |
1/3.2” 2.0MP Color CMOS |
Max. Resolution |
1600*1200 |
Pixel Size |
2.8µm*2.8µm |
Sensitivity |
1.0V / lux-sec |
Dynamic Range |
71.0 dB |
S/N Ratio |
42.3 dB |
Working Distance |
5.0MM ---∞ |
Division of calibration ruler |
0.1mm |
Magnification |
1---40X; 240X |
Spectral Range |
400-650nm(with IR-filter) |
Frame Rate |
7.5fps@1600*1200 |
Preview Model |
1600*1200;1280*1024; 640*480; 320*240 |
Exposure |
ERS or Manual |
Power Consumption. |
348 mW |
White Balance |
ERS or Manual |
Out Interface |
USB2.0 |
Device Size |
Φ45mm*95mm |
Device Weight |
0.12kg |
System Compatibility |
32bit and 64bit, XP, Vista, Win7,Win8, Mac |
Language of software |
English, French, German, Spanish, Japanese, Chinese, Russian
|
.
