Help CenterPatent MDA1300R Portable USB Digital Microscope With Reticl Measurement Function for Beauty and Skin Care
Related Products
-
40X~240X 1.3MP MDA1300R Portable USB Microscope With Reticl Measurement Function for Education and ResearchUS$ 1 - 199MOQ: 50 Pieces -
Patent MDA2000R Portable USB Microscope With Reticl Measurement Function for Printing Quality ControlNegotiableMOQ: 50 Pieces
-
Patent MDA1300R Portable Digital Microscope With Reticle Measurement Function for Printing Quality ControlUS$ 1 - 199MOQ: 50 Pieces
-
Patent MDA2000R Portable USB Digital Microscope With Reticl Measurement Function for Textile Quality ControlNegotiableMOQ: 50 Pieces
-
Patent MDA2000R Portable USB Digital Microscope With Reticle Measurement Function for PCB InspectionUS$ 1 - 199MOQ: 50 Pieces
Specifications
Conjugate system:40X, 240XAchromatic objective
Inclined illumination of 8 LED
1280*1024 for image & moive
Win8,Mac,Linux
♦Features:
1. Digital imaging module:1.3MP high performance CMOS imaging module;
2. Imaging software: Future Win Joe image & movie capturing and processing program
3. Optical conjugation imaging module: One set of lenses offers two optical magnifications: 2.5X and 0.4X;
4. Zoom and focus mechanism: Big focus wheel and double helix rail design offers smooth and fine adjustment of focus;
5. Uniform illumination part: Falling–in ring–lighting panel with 8 LED lamp.
6. Calibration ruler: 0.1mm/10mm calibrating slide.
♦Applications:
Inspectors can easily evaluate the quality of fabric by measuring the fabric density and checking the color.
Calibration:
With a 10mm/ 0.1mm glass micro ruler (Figure 1), to calibrate the movable reticle of the software (Figure 2).
Figure 1 A 10mm / 0.1mm ruler Figure 2 A movable reticle of Future Win Joe
Figure 3 Calibration of vertical line at 40X Figure 4 Calibration of vertical line at 240X
Beauty and Skin Care

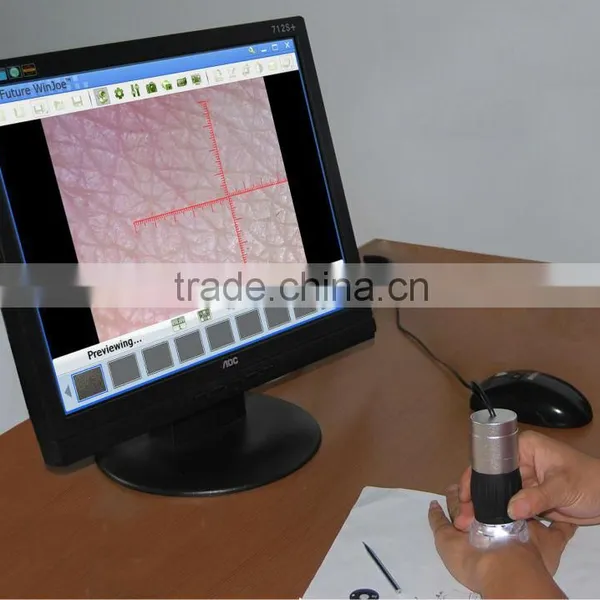

By checking and to tracking growth and metabolic process of skin and hair, to provide guidance of wrinkles smoothing away and blemishes eliminating.
Figure 5: Skin of the back of hand of a young man at 40X
Figure2:Hair of an Asia young lady at 40X. Figure3:Hair of an Asia young lady at 240X.
From Figure 3, you can measure the diameter of hair with the reticle:
0.019*5.5=0.10mm----B;
Shining surface---A;
Dandriff attached in hair---C;
Branch of hair---D,E.
♦Detail Specifications :
Capture Mode |
Picture and Video |
Sensor Parameter |
1/4” 1.3MP Color CMOS |
Max. Resolution |
1280*1024 |
Pixel Size |
2.8µm*2.8µm |
Sensitivity |
1.0V / lux-sec |
Dynamic Range |
71.0 dB |
S/N Ratio |
44.0 dB |
Working Distance |
5.0MM ---∞ |
Calibration slide |
1mm / 10mm ruler |
Magnification |
1---40X; 240X |
Spectral Range |
400-650nm(with IR-filter) |
Frame Rate |
17fps@1280*1024 |
Preview Model |
1280*1024; 640*480; 320*240 |
Exposure |
ERS or Manual |
Power Consumption |
170 mW |
White Balance |
ERS or Manual |
Out Interface |
USB2.0 |
Device Weight |
0.211kg |
Device Size |
Φ45mm*95mm |
Cable length |
1.5m |
.
