Help CenterPatent MDA1300R Portable USB Digital Microscope With Reticl Measurement Function for Household and Hobby Tool
Related Products
-
Patent MDA1300R Portable USB Microscope With Reticl Measurement Function for Law EnforcementUS$ 1 - 199MOQ: 50 Pieces -
Patent MDA2000R Handheld Digital Microscope Cameras for Video Inspectio With Reticle Measurement FunctionUS$ 1 - 199MOQ: 50 Pieces
-
Patent MDA2000R Handheld USB Digital Microscope With Reticle Measurement Function for Education and ResearchUS$ 1 - 199MOQ: 50 Pieces
-
Beauty and Skin Care MDA2000R Handheld USB Digital Microscope With Reticl Measurement FunctionNegotiableMOQ: 50 Pieces
-
Patent MDA2000R Portable Digital Microscope With Reticle Measurement Function for Household and Hobby ToolNegotiableMOQ: 50 Pieces
Specifications
Conjugate system:40X, 240XAchromatic objective
Inclined illumination of 8 LED
1280*1024 for image & moive
Win8,Mac,Linux
♦Features:
1. Digital imaging module:1.3MP high performance CMOS imaging module;
2. Imaging software: Future Win Joe image & movie capturing and processing program
3. Optical conjugation imaging module: One set of lenses offers two optical magnifications: 2.5X and 0.4X;
4. Zoom and focus mechanism: Big focus wheel and double helix rail design offers smooth and fine adjustment of focus;
5. Uniform illumination part: Falling–in ring–lighting panel with 8 LED lamp.
6. Calibration ruler: 0.1mm/10mm calibrating slide.
♦Applications:
Inspectors can easily evaluate the quality of fabric by measuring the fabric density and checking the color.
Calibration:
With a 10mm/ 0.1mm glass micro ruler (Figure 1), to calibrate the movable reticle of the software (Figure 2).
Figure 1: A 10mm / 0.1mm ruler Figure 2 : A movable reticle of Future Win Joe
Figure 3: Calibration of vertical line at 40X Figure 4: Calibration of vertical line at 240X
Household and Hobby tool
To check and to discover the microscopic world around you for fun.
Figure 5: pathogenic bacteria on garden flower at 240X

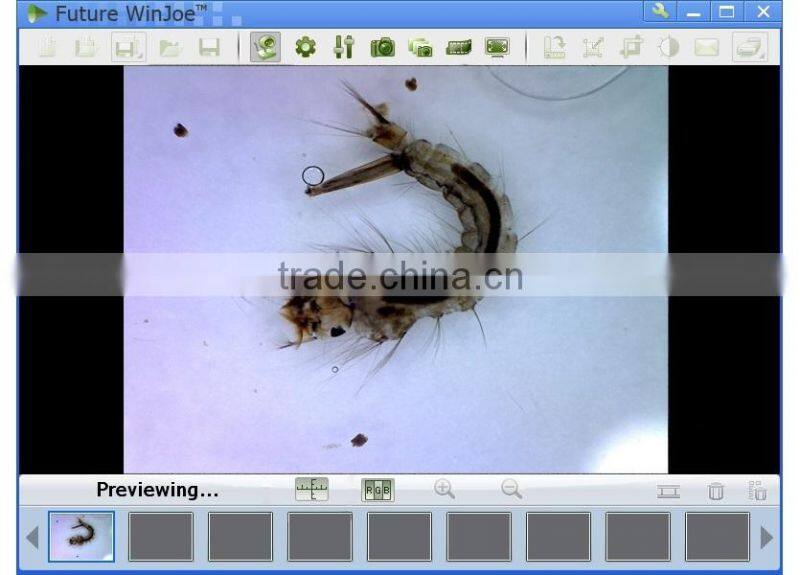

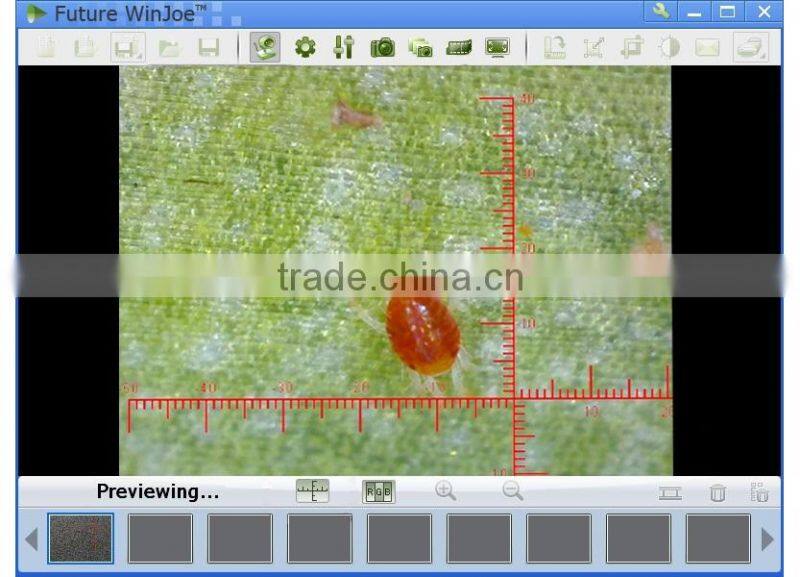

Figure 6: movable beetle on leaf at 240X Figure7: Larva of mosquito at 40X.
♦Detail Specifications :
Capture Mode |
Picture and Video |
Sensor Parameter |
1/4” 1.3MP Color CMOS |
Max. Resolution |
1280*1024 |
Pixel Size |
2.8µm*2.8µm |
Sensitivity |
1.0V / lux-sec |
Dynamic Range |
71.0 dB |
S/N Ratio |
44.0 dB |
Working Distance |
5.0MM ---∞ |
Calibration slide |
1mm / 10mm ruler |
Magnification |
1---40X; 240X |
Spectral Range |
400-650nm(with IR-filter) |
Frame Rate |
17fps@1280*1024 |
Preview Model |
1280*1024; 640*480; 320*240 |
Exposure |
ERS or Manual |
Power Consumption |
170 mW |
White Balance |
ERS or Manual |
Out Interface |
USB2.0 |
Device Weight |
0.211kg |
Device Size |
Φ45mm*95mm |
Cable length |
1.5m |
.
