Patent MDA2000R portable USB digital microscope with reticle measurement function for PCB inspection
- 5000 Piece / Pieces per Month
- Hangzhou Shanghai Ningbo
- T/T Credit Card
- Patent MDA1300R portable USB digital microscope with reticle measurement function for textile quality control
- Patent MDA1300R precision measurement portable USB digital microscope with movable reticle
- Patent MDA1300R handheld digital magnifier with reticle measurement function for electronic inspection
- Patent MDA2000R portable USB digital microscope with reticl measurement function for metal parts quality inspection
- 0.35 MP video stereo microscope with video microscope camera
- Personal Care USB Microscope
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Future Optics / OEM | Model Number: | MDA2000R |
Theory: | Video Microscope | Drawtube: | Monocular |
Product Description
Specifications
Conjugate system:40X, 240XAchromatic objective
Inclined illumination of 8 LED
1600*1200 for image & moive
Win8,Mac
♦Features:
1. Digital imaging module:2.0MP high performance CMOS imaging module;
2. Imaging software: Future Win Joe image & movie capturing and processing program
3. Optical conjugation imaging module: One set of lenses offers two optical magnifications: 2.5X and 0.4X;
4. Zoom and focus mechanism: Big focus wheel and double helix rail design offers smooth and fine adjustment of focus;
5. Uniform illumination part: Falling–in ring–lighting panel with 8 LED lamp.
6. Calibration ruler: 0.1mm/10mm calibrating slide.
♦Applications:
To measure the fine size which you cannot measure with a vernier scale and to check the tiny defects you cannot find by your human eye.
To measure the size of a tiny gap of a metal camera adapter and to take pictures of the metal camera surface texture for evaluation of quality, including surface roughness, contour, form, waviness and defects.
Calibration:
With a 10mm/ 0.1mm glass micro ruler (Figure 1), to calibrate the movable reticle of the software (Figure 2).
Figure 1 A 10mm / 0.1mm ruler Figure 2 A movable reticle of Future Win Joe
Figure 3 Calibration of vertical line at 40X Figure 4 Calibration of vertical line at 240X
Electronic Inspection
Analyzing microstructure of PCB, checking up surfaces of precise workpieces and identifying key
characteristics of IC module.

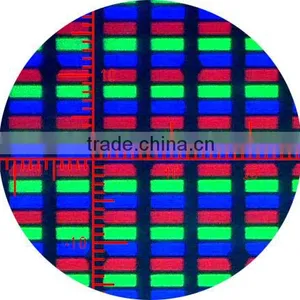

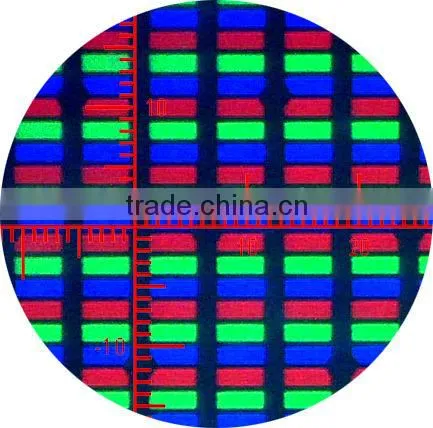

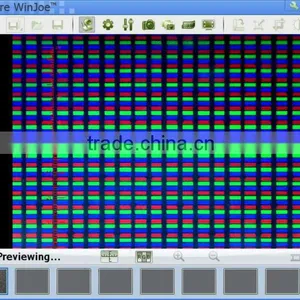

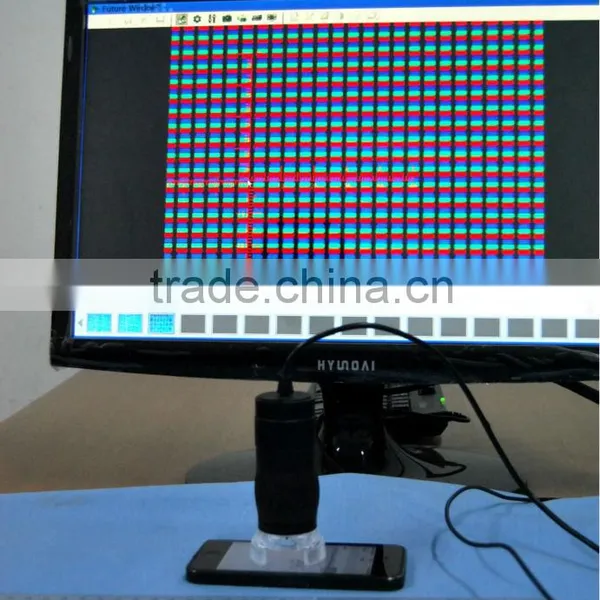

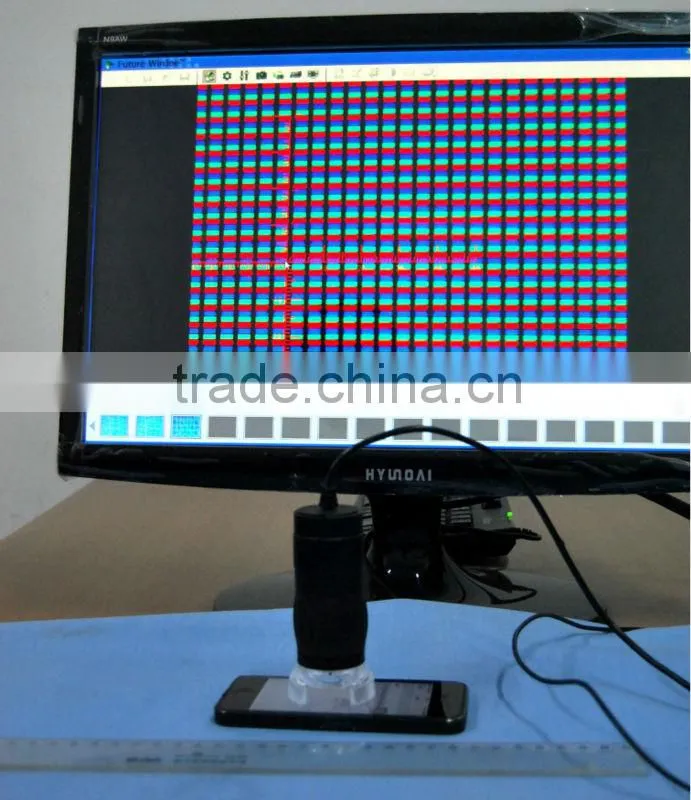

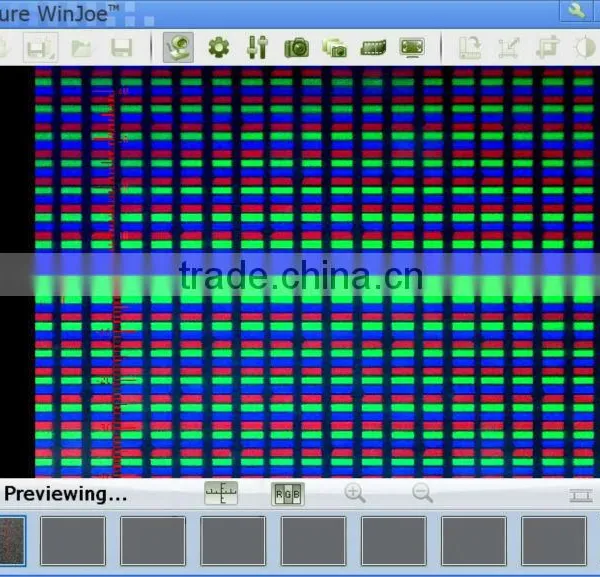

Figure 5: To check the LCD screen quality of "iPhone 5" Figure 6: Image of iPhone 5 screen at 240X
To test display resolution and true color expression of a “iPhone 5” Apple mobile phone
1. To calibrate reticle first (PC display resolution 1280*1024, image resolution of MDA2000:1600*1200), we
get: 1mm equals to 54 units in reticle at 240X.
2. Keep “iPhone 5” turning on and to capture image of screen (See Figure 5).
3. We can recognize that one dot (one group which is composed of one red bar, one green bar and one
blue bar) is covered by 5 units of reticle, and we work out that there are 274 dots in a range of one inch
(25.4* 54 / 5). There is a little difference in compare with 326 DPI (dot per inch) declared by iPhone 5
manual. We work out the display resolution of a Samsung GT-I9008L in the same way, it’s only 203.2 DPI.
Figure 7: Checking PCB
You can inspect the quality of PCB surface without any support (See Figure7)
In Figure 8 you can check the gold coating wire between the silicon base and metal frame of Apian 1/2.5 inch
5MP digital image sensor one by one at 40 X, and to inspect the welding spots at 240X.
Figure 8: Image sensor chip at 40X Figure 9: Image sensor chip at 240X
♦Detail Specifications:
Capture Mode | Picture and Video |
Sensor Parameter | 1/3.2” 2.0MP Color CMOS |
Max. Resolution | 1600*1200 |
Pixel Size | 2.8µm*2.8µm |
Sensitivity | 1.0V / lux-sec |
Dynamic Range | 71.0 dB |
S/N Ratio | 42.3 dB |
Working Distance | 5.0MM ---∞ |
Division of calibration ruler | 0.1mm |
Magnification | 1---40X; 240X |
Spectral Range | 400-650nm(with IR-filter) |
Frame Rate | 7.5fps@1600*1200 |
Preview Model | 1600*1200;1280*1024; 640*480; 320*240 |
Exposure | ERS or Manual |
Power Consumption. | 348 mW |
White Balance | ERS or Manual |
Out Interface | USB2.0 |
Device Size | Φ45mm*95mm |
Device Weight | 0.12kg |
System Compatibility | 32bit and 64bit, XP, Vista, Win7,Win8, Mac |
Language of software | English, French, German, Spanish, Japanese, Chinese, Russian
|
.
