Help CenterPatent MDA1300R Portable USB Microscope With Reticl Measurement Function for Law Enforcement
Related Products
-
Patent MDA2000R Handheld Digital Microscope Cameras for Video Inspectio With Reticle Measurement FunctionUS$ 1 - 199MOQ: 50 Pieces -
Patent MDA2000R Handheld USB Digital Microscope With Reticle Measurement Function for Education and ResearchUS$ 1 - 199MOQ: 50 Pieces
-
Beauty and Skin Care MDA2000R Handheld USB Digital Microscope With Reticl Measurement FunctionNegotiableMOQ: 50 Pieces
-
Patent MDA2000R Portable Digital Microscope With Reticle Measurement Function for Household and Hobby ToolNegotiableMOQ: 50 Pieces
-
Patent MDA1300R Portable USB Digital Microscope With Reticl Measurement Function for Beauty and Skin CareUS$ 1 - 199MOQ: 50 Pieces
Specifications
Conjugate system:40X, 240XAchromatic objective
Inclined illumination of 8 LED
1280*1024 for image & moive
Win8,Mac,Linux
♦Features:
1. Digital imaging module:1.3MP high performance CMOS imaging module;
2. Imaging software: Future Win Joe image & movie capturing and processing program
3. Optical conjugation imaging module: One set of lenses offers two optical magnifications: 2.5X and 0.4X;
4. Zoom and focus mechanism: Big focus wheel and double helix rail design offers smooth and fine adjustment of focus;
5. Uniform illumination part: Falling–in ring–lighting panel with 8 LED lamp.
6. Calibration ruler: 0.1mm/10mm calibrating slide.
♦Applications:
Inspectors can easily evaluate the quality of fabric by measuring the fabric density and checking the color.
Calibration:
With a 10mm/ 0.1mm glass micro ruler (Figure 1), to calibrate the movable reticle of the software (Figure 2).
Figure 1 A 10mm / 0.1mm ruler Figure 2 A movable reticle of Future Win Joe
Figure 3 Calibration of vertical line at 40X Figure 4 Calibration of vertical line at 240X
Law Enforcement

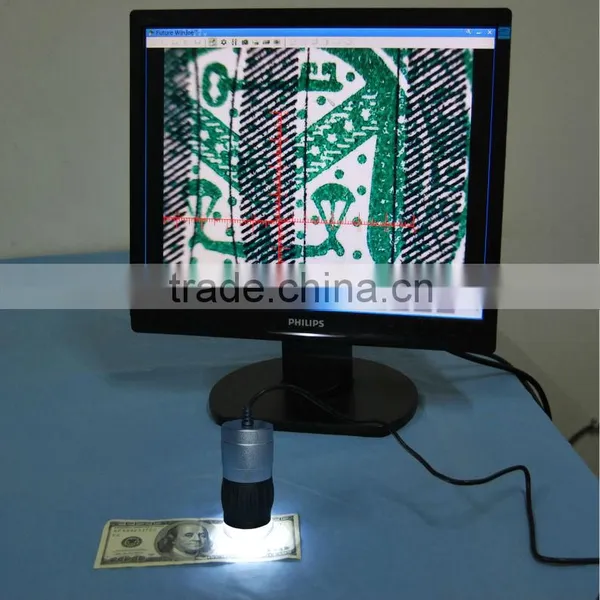

Real U.S. bills are printed using techniques that regular offset printing and digital, the portraits are sharp and contain very fine detailing. While the portraits in fake bills may appear dull, blurred, and flat. Examining the micro-printing with our MDA1300 usb portable microscope is the most correct way.

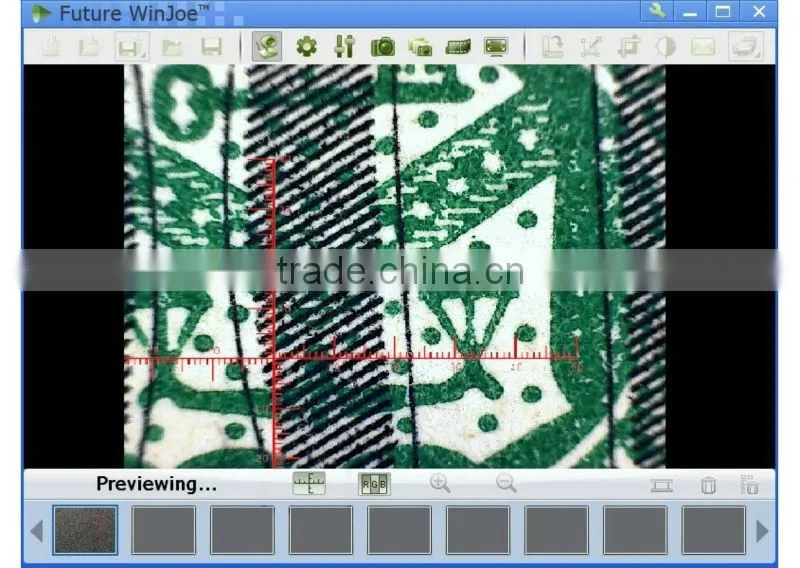

Figure 5: Green ink pattern and black strip setting unhidden on the bill’s face at 40X
Figure 6: “THE UNITED STATES OF AMERICA” on Franklin’s collar at 40X (on 100 USB bill the 2006 note)

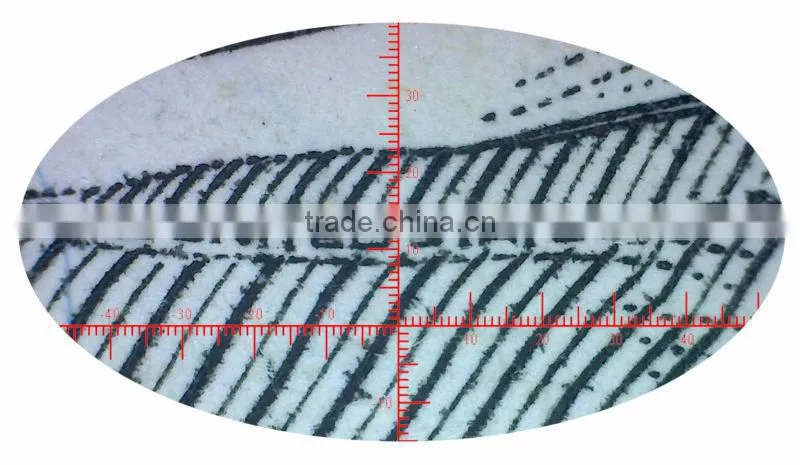

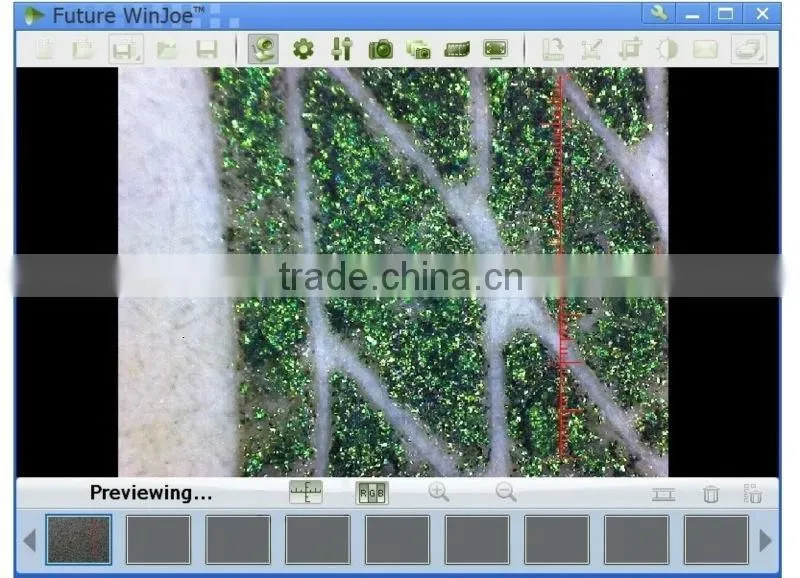

Figure 7: Bill check at 40X Figure 8: Microscopic flakes of metallic material at 240X
♦Detail Specifications :
Capture Mode |
Picture and Video |
Sensor Parameter |
1/4” 1.3MP Color CMOS |
Max. Resolution |
1280*1024 |
Pixel Size |
2.8µm*2.8µm |
Sensitivity |
1.0V / lux-sec |
Dynamic Range |
71.0 dB |
S/N Ratio |
44.0 dB |
Working Distance |
5.0MM ---∞ |
Calibration slide |
1mm / 10mm ruler |
Magnification |
1---40X; 240X |
Spectral Range |
400-650nm(with IR-filter) |
Frame Rate |
17fps@1280*1024 |
Preview Model |
1280*1024; 640*480; 320*240 |
Exposure |
ERS or Manual |
Power Consumption |
170 mW |
White Balance |
ERS or Manual |
Out Interface |
USB2.0 |
Device Weight |
0.211kg |
Device Size |
Φ45mm*95mm |
Cable length |
1.5m |
.
