♦Features:
1. Digital imaging module:2.0MP high performance CMOS imaging module;
2. Imaging software: Future Win Joe image & movie capturing and processing program
3. Optical conjugation imaging module: One set of lenses offers two optical magnifications: 2.5X and 0.4X;
4. Zoom and focus mechanism: Big focus wheel and double helix rail design offers smooth and fine adjustment of focus;
5. Uniform illumination part: Falling–in ring–lighting panel with 8 LED lamp.
6. Calibration ruler: 0.1mm/10mm calibrating slide.
♦Applications:
To measure the fine size which you cannot measure with a vernier scale and to check the tiny defects you cannot find by your human eye.
To measure the size of a tiny gap of a metal camera adapter and to take pictures of the metal camera surface texture for evaluation of quality, including surface roughness, contour, form, waviness and defects.
Calibration:
With a 10mm/ 0.1mm glass micro ruler (Figure 1), to calibrate the movable reticle of the software (Figure 2).
Figure 1 A 10mm / 0.1mm ruler Figure 2 A movable reticle of Future Win Joe
Figure 3 Calibration of vertical line at 40X Figure 4 Calibration of vertical line at 240X
Law Enforcement
Real U.S. bills are printed using techniques that regular offset printing and digital, the portraits are sharp and contain very fine detailing. While the portraits in fake bills may appear dull, blurred, and flat. Examining the micro-printing with our MDA1300 usb portable microscope is the most correct way.

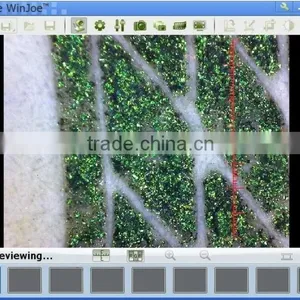

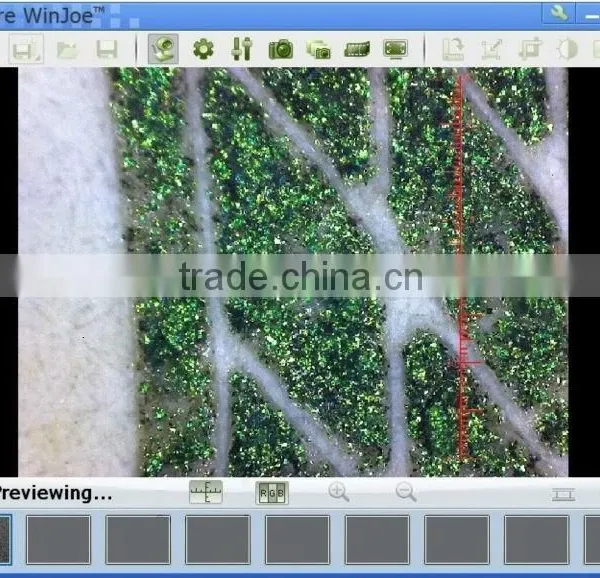

Figure 5: Green ink pattern and black strip setting unhidden on the bill’s face at 40X

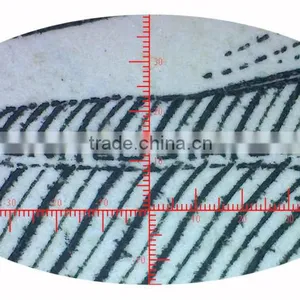

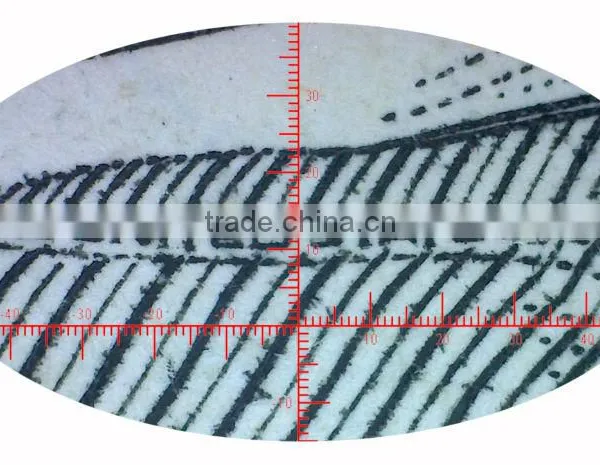

Figure 6: “THE UNITED STATES OF AMERICA” on Franklin’s collar at 40X (on 100 USB bill the 2006 note)

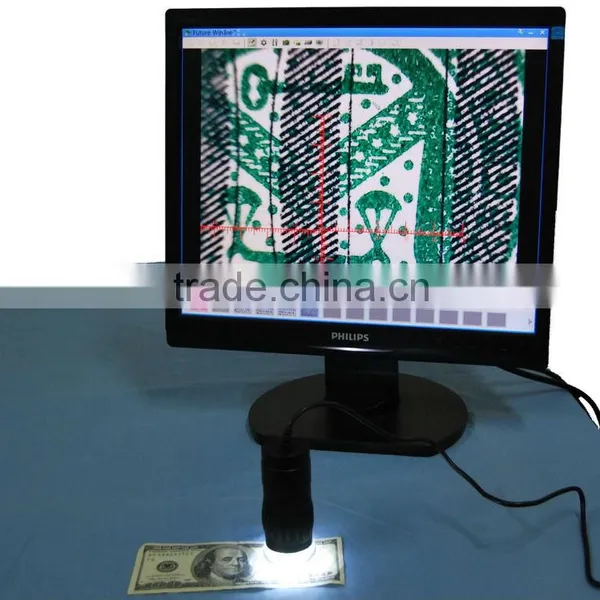

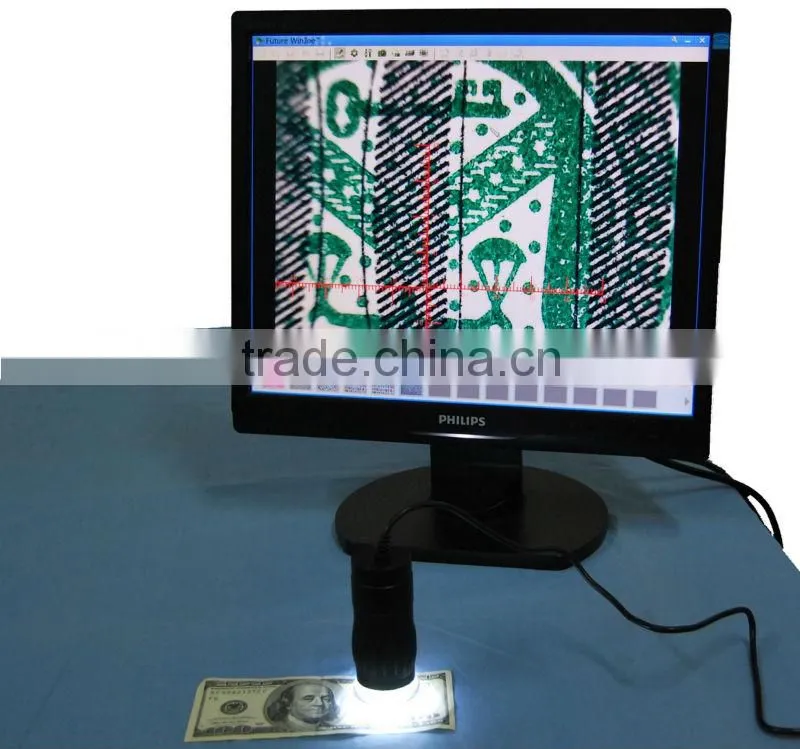

Figure 7: Bill check at 40X Figure 8: Microscopic flakes of metallic material at 240X
♦Detail Specifications:
Capture Mode |
Picture and Video |
Sensor Parameter |
1/3.2” 2.0MP Color CMOS |
Max. Resolution |
1600*1200 |
Pixel Size |
2.8µm*2.8µm |
Sensitivity |
1.0V / lux-sec |
Dynamic Range |
71.0 dB |
S/N Ratio |
42.3 dB |
Working Distance |
5.0MM ---∞ |
Division of calibration ruler |
0.1mm |
Magnification |
1---40X; 240X |
Spectral Range |
400-650nm(with IR-filter) |
Frame Rate |
7.5fps@1600*1200 |
Preview Model |
1600*1200;1280*1024; 640*480; 320*240 |
Exposure |
ERS or Manual |
Power Consumption. |
348 mW |
White Balance |
ERS or Manual |
Out Interface |
USB2.0 |
Device Size |
Φ45mm*95mm |
Device Weight |
0.12kg |
System Compatibility |
32bit and 64bit, XP, Vista, Win7,Win8, Mac |
Language of software |
English, French, German, Spanish, Japanese, Chinese, Russian
|
.
