Home > Products > 12. Inspecting microscope and accessories > Beauty and skin care MDA2000R handheld USB digital microscope with reticl measurement function
Beauty and skin care MDA2000R handheld USB digital microscope with reticl measurement function
- 5000 Piece / Pieces per Month
- Hangzhou Shanghai Ningbo
- T/T Credit Card
You May Like
-
Patent MDA2000R portable digital microscope with reticle measurement function for household and hobby tool
-
Patent MDA1300R portable USB digital microscope with reticl measurement function for beauty and skin care
-
40X~240X 1.3MP MDA1300R portable USB microscope with reticl measurement function for education and research
-
Patent MDA2000R portable USB microscope with reticl measurement function for printing quality control
-
Patent MDA1300R portable digital microscope with reticle measurement function for printing quality control
-
Patent MDA2000R portable USB digital microscope with reticl measurement function for textile quality control
Product Details
Place of Origin | Zhejiang, China | Brand Name | Future Optics / OEM | |
Model Number | MDA2000R | Theory | Video Microscope | |
Drawtube | Monocular |
Product Description
♦Features:
1. Digital imaging module:2.0MP high performance CMOS imaging module;
2. Imaging software: Future Win Joe image & movie capturing and processing program
3. Optical conjugation imaging module: One set of lenses offers two optical magnifications: 2.5X and 0.4X;
4. Zoom and focus mechanism: Big focus wheel and double helix rail design offers smooth and fine adjustment of focus;
5. Uniform illumination part: Falling–in ring–lighting panel with 8 LED lamp.
6. Calibration ruler: 0.1mm/10mm calibrating slide.
♦Applications:
To measure the fine size which you cannot measure with a vernier scale and to check the tiny defects you cannot find by your human eye.
To measure the size of a tiny gap of a metal camera adapter and to take pictures of the metal camera surface texture for evaluation of quality, including surface roughness, contour, form, waviness and defects.
Calibration:
With a 10mm/ 0.1mm glass micro ruler (Figure 1), to calibrate the movable reticle of the software (Figure 2).
Figure 1 A 10mm / 0.1mm ruler Figure 2 A movable reticle of Future Win Joe
Figure 3 Calibration of vertical line at 40X Figure 4 Calibration of vertical line at 240X
Beauty and Skin Care
By checking and to tracking growth and metabolic process of skin and hair, to provide guidance of wrinkles smoothing away and blemishes eliminating.

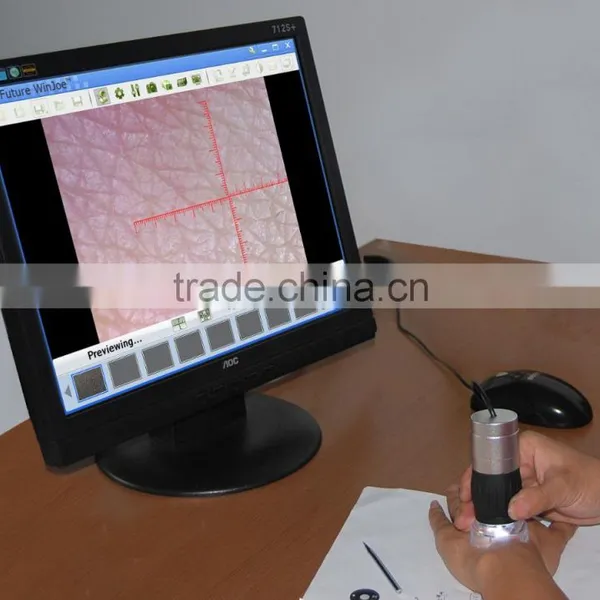

Figure 5: Skin of the back of hand of a young man at 40X
Figure5:Hair of an Asia young lady at 40X. Figure6:Hair of an Asia young lady at 240X.
From Figure 6, you can measure the diameter of hair with the reticle:
0.019*5.5=0.10mm----B;
Shining surface---A;
Dandriff attached in hair---C;
Branch of hair---D,E.
Certification:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
Copyright software of Future Win Joe V1.0 Registration Code: 2009SR035346
ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M
♦Detail Specifications:
Capture Mode | Picture and Video |
Sensor Parameter | 1/3.2” 2.0MP Color CMOS |
Max. Resolution | 1600*1200 |
Pixel Size | 2.8µm*2.8µm |
Sensitivity | 1.0V / lux-sec |
Dynamic Range | 71.0 dB |
S/N Ratio | 42.3 dB |
Working Distance | 5.0MM ---∞ |
Division of calibration ruler | 0.1mm |
Magnification | 1---40X; 240X |
Spectral Range | 400-650nm(with IR-filter) |
Frame Rate | 7.5fps@1600*1200 |
Preview Model | 1600*1200;1280*1024; 640*480; 320*240 |
Exposure | ERS or Manual |
Power Consumption. | 348 mW |
White Balance | ERS or Manual |
Out Interface | USB2.0 |
Device Size | Φ45mm*95mm |
Device Weight | 0.12kg |
System Compatibility | 32bit and 64bit, XP, Vista, Win7,Win8, Mac |
Language of software | English, French, German, Spanish, Japanese, Chinese, Russian |
.
Trade terms
Payment:
100% prepaid for first order
For quantity order: T/T to our company account
For sample order or trial order: T/T to our company account, Western Union, Escrow
Delivery time and shipping:
Sample order or trial order (less than MOQ) will be sent within 3 days by express, such as EMS, DHL, TNT, FedEx etc.
Bulk order (less than 500 units) will be finished within 7 days, and normally shipped by air or sea through forwarders subject to client’s confirmation.
OEM orders need an extra customization time. Generally customization will take 10 days.
Warranty:
We offer two years warranty covering all of our products, including on line technical supports, replacements of defective items with new ones and supply of accessories, basing on our service offices all over the world.
Customization:
We offer free OEM service for our regular clients or big order customers, including logo printing, sticker print, CD file design and box making .--------------more information
Free sample for clients to place repeat orders:
We welcome our potential buyers to purchase sample for test and evaluation, and we will refund the sample fee when they place repeat orders.
Pre-sales service
As a manufacturer, not a trade company, we can provide sufficient pre-sale services to help our clients understand our products before placing an order to us.
1. Provide basic knowledge to help our clients understand working principle of our products;
2. Provide key factors and skill to our clients when they choose our products;
3. Provide sample pictures or video captured by our products according to clients’ special application for test and evaluation;
4. Provide product design drawing and package drawing to help clients work out customization pattern.
