Help Center40X~240X 1.3MP MDA1300R Portable USB Microscope With Reticl Measurement Function for Education and Research
Related Products
-
Patent MDA2000R Portable USB Microscope With Reticl Measurement Function for Printing Quality ControlNegotiableMOQ: 50 Pieces -
Patent MDA1300R Portable Digital Microscope With Reticle Measurement Function for Printing Quality ControlUS$ 1 - 199MOQ: 50 Pieces
-
Patent MDA2000R Portable USB Digital Microscope With Reticl Measurement Function for Textile Quality ControlNegotiableMOQ: 50 Pieces
-
Patent MDA2000R Portable USB Digital Microscope With Reticle Measurement Function for PCB InspectionUS$ 1 - 199MOQ: 50 Pieces
-
Patent MDA1300R Portable USB Digital Microscope With Reticle Measurement Function for Textile Quality ControlUS$ 1 - 199MOQ: 50 Pieces
♦Features:
1. Digital imaging module:1.3MP high performance CMOS imaging module;
2. Imaging software: Future Win Joe image & movie capturing and processing program
3. Optical conjugation imaging module: One set of lenses offers two optical magnifications: 2.5X and 0.4X;
4. Zoom and focus mechanism: Big focus wheel and double helix rail design offers smooth and fine adjustment of focus;
5. Uniform illumination part: Falling–in ring–lighting panel with 8 LED lamp.
6. Calibration ruler: 0.1mm/10mm calibrating slide.
♦Applications:
Inspectors can easily evaluate the quality of fabric by measuring the fabric density and checking the color.
Calibration:
With a 10mm/ 0.1mm glass micro ruler (Figure 1), to calibrate the movable reticle of the software (Figure 2).
Figure 1 A 10mm / 0.1mm ruler Figure 2 A movable reticle of Future Win Joe
Figure 3 Calibration of vertical line at 40X Figure 4 Calibration of vertical line at 240X

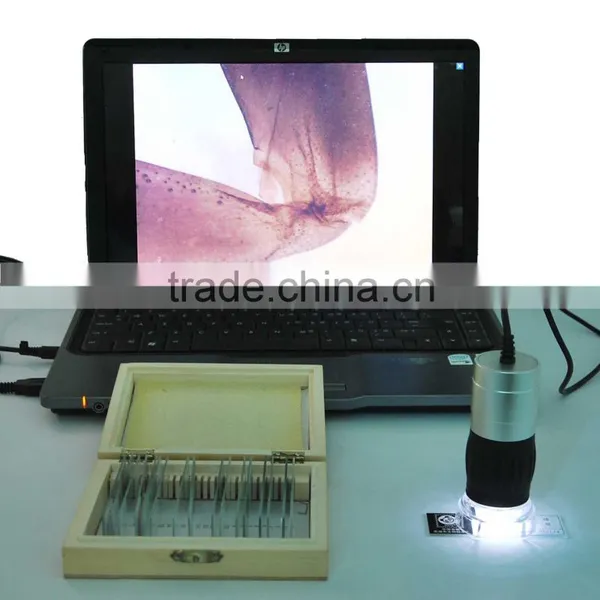

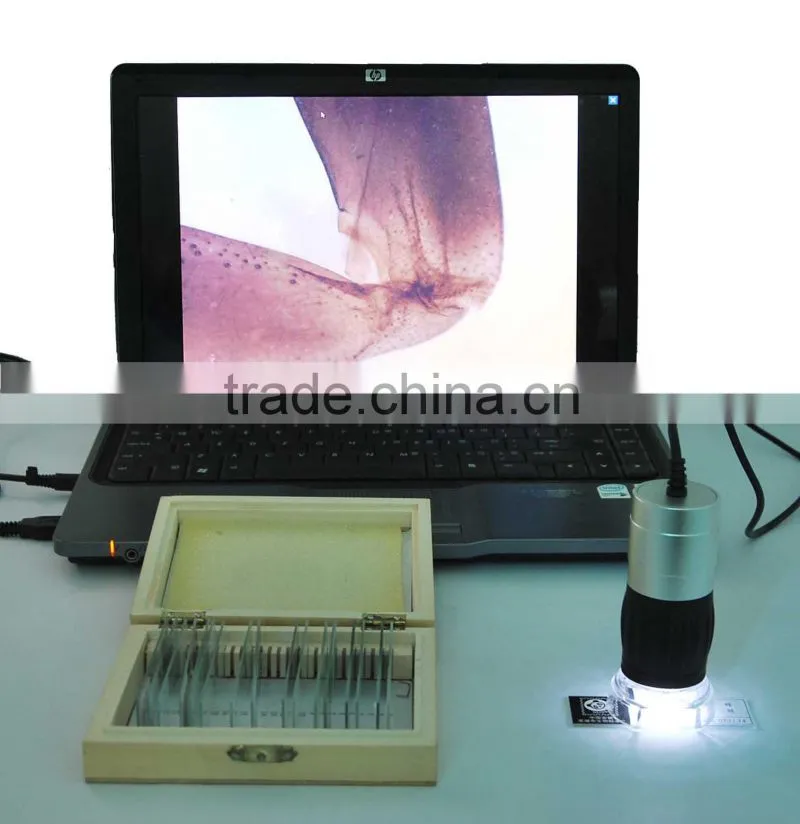

Education and Research
To observe, analyze and study animal & plant cells, specimens and entities out of lab and out of classroom.
Figure5: Joint of honeybee foreleg (built-in LED reflective illumination) at 240X
Figure2: honeybee Foreleg at 40X Figure3: Tail of honeybee foreleg at 240X
Built-in LED reflective illumination and white paper acting as a base.
Certification:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
Copyright software of Future Win Joe V1.0 Registration Code: 2009SR035346
ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M
♦Detail Specifications :
Capture Mode |
Picture and Video |
Sensor Parameter |
1/4” 1.3MP Color CMOS |
Max. Resolution |
1280*1024 |
Pixel Size |
2.8µm*2.8µm |
Sensitivity |
1.0V / lux-sec |
Dynamic Range |
71.0 dB |
S/N Ratio |
44.0 dB |
Working Distance |
5.0MM ---∞ |
Calibration slide |
1mm / 10mm ruler |
Magnification |
1---40X; 240X |
Spectral Range |
400-650nm(with IR-filter) |
Frame Rate |
17fps@1280*1024 |
Preview Model |
1280*1024; 640*480; 320*240 |
Exposure |
ERS or Manual |
Power Consumption |
170 mW |
White Balance |
ERS or Manual |
Out Interface |
USB2.0 |
Device Weight |
0.211kg |
Device Size |
Φ45mm*95mm |
Cable length |
1.5m |
Trade terms
Payment:
100% prepaid for first order
For quantity order: T/T to our company account
For sample order or trial order: T/T to our company account, Western Union, Escrow
Delivery time and shipping:
Sample order or trial order (less than MOQ) will be sent within 3 days by express, such as EMS, DHL, TNT, FedEx etc.
Bulk order (less than 500 units) will be finished within 7 days, and normally shipped by air or sea through forwarders subject to client’s confirmation.
OEM orders need an extra customization time. Generally customization will take 10 days.
Warranty:
We offer two years warranty covering all of our products, including on line technical supports, replacements of defective items with new ones and supply of accessories, basing on our service offices all over the world.
Customization:
We offer free OEM service for our regular clients or big order customers, including logo printing, sticker print, CD file design and box making .--------------more information
Free sample for clients to place repeat orders:
We welcome our potential buyers to purchase sample for test and evaluation, and we will refund the sample fee when they place repeat orders.
Pre-sales service
As a manufacturer, not a trade company, we can provide sufficient pre-sale services to help our clients understand our products before placing an order to us.
1. Provide basic knowledge to help our clients understand working principle of our products;
2. Provide key factors and skill to our clients when they choose our products;
3. Provide sample pictures or video captured by our products according to clients’ special application for test and evaluation;
4. Provide product design drawing and package drawing to help clients work out customization pattern.
