Specifications

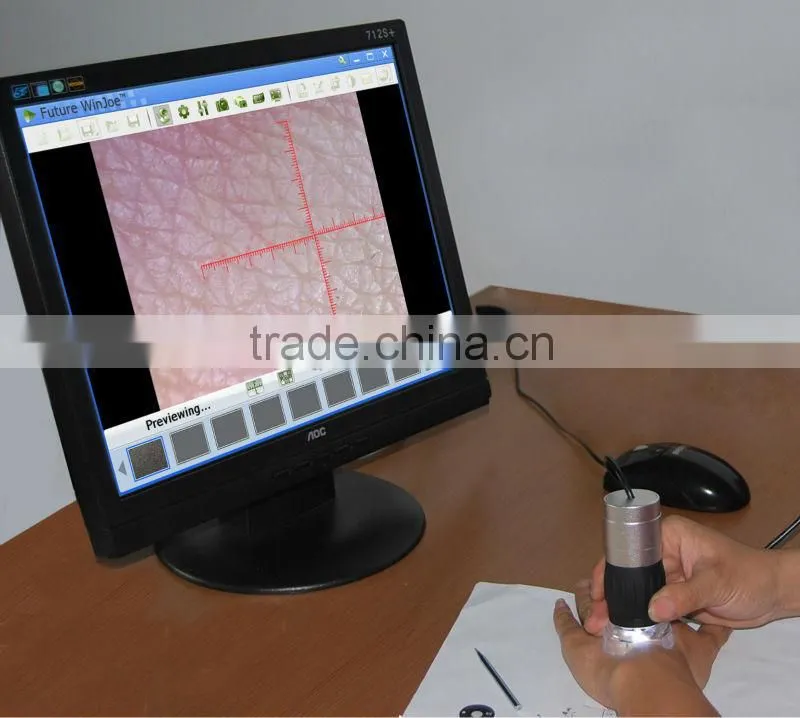

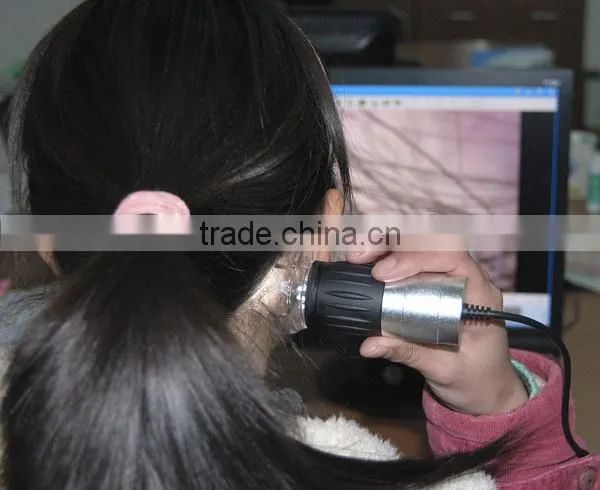

Personal Care USB Microscope: to view and check skin and hair in PC screen without a mirror.Personal Care USB Microscope: to view and check skin and hair in PC screen without a mirror, and do not need the other persons help when view backside. Further to file images and videos captured for making a diagnosis by herself or by a doctor through the net. The reticle software can be used to measure diameter of hair or size of furrow to analyze your skin in detailed.

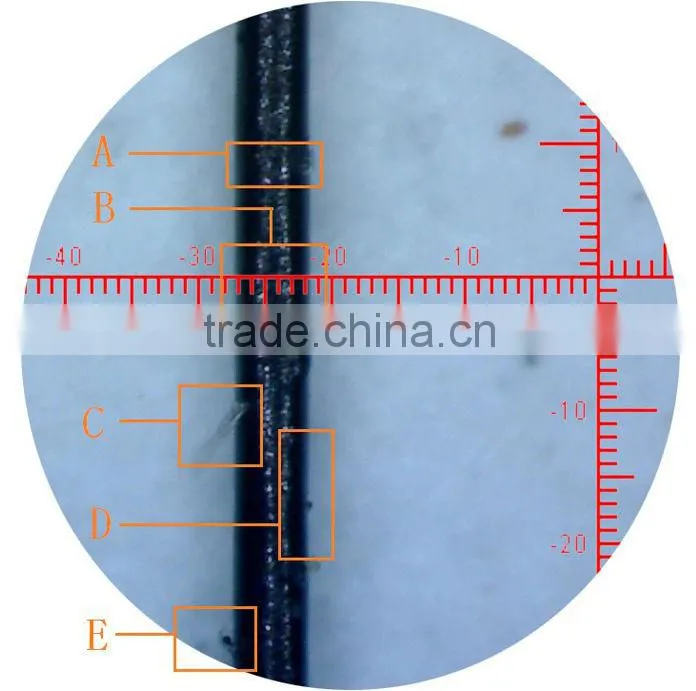

Figure3:Hair of an Asia young lady at 40X. Figure4:Hair of an Asia young lady at 240X.
From Figure 4, you can measure the diameter of hair with the reticle:
0.019*5.5=0.10mm----B;
Shining surface---A;
Dandriff attached in hair---C;
Branch of hair---D,E.
Detail Specifications:
Capture Mode |
Picture and Video |
Sensor Parameter |
1/3.2” 2.0MP Color CMOS |
Max. Resolution |
1600*1200 |
Pixel Size |
2.8µm*2.8µm |
Sensitivity |
1.0V / lux-sec |
Dynamic Range |
71.0 dB |
S/N Ratio |
42.3 dB |
Working Distance |
5.0MM ---∞ |
Division of calibration ruler |
0.1mm |
Magnification |
1---40X; 240X |
Spectral Range |
400-650nm(with IR-filter) |
Frame Rate |
7.5fps@1600*1200 |
Preview Model |
1600*1200;1280*1024; 640*480; 320*240 |
Exposure |
ERS or Manual |
Power Consumption. |
348 mW |
White Balance |
ERS or Manual |
Out Interface |
USB2.0 |
Device Size |
Φ45mm*95mm |
Device Weight |
0.12kg |
System Compatibility |
32bit and 64bit, XP, Vista, Win7,Win8, Mac |
Language of software |
English, French, German, Spanish, Japanese, Chinese, Russian |
