Home > Products > 12. Inspecting microscope and accessories > Patent MDA2000R portable USB digital microscope with reticl measurement function for textile quality control

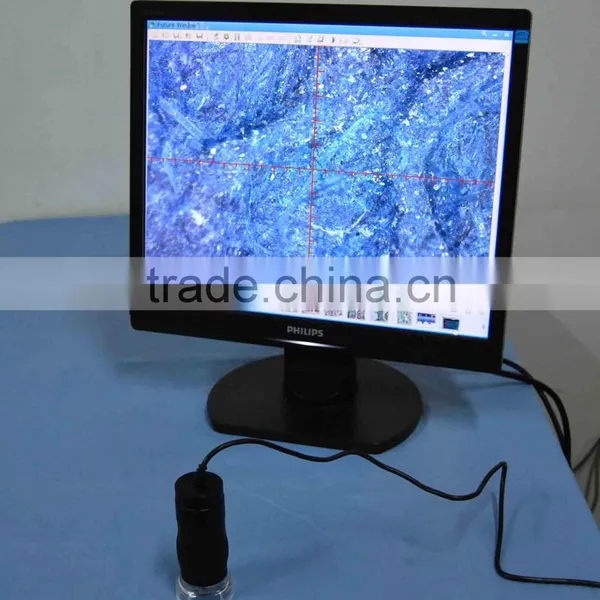

Patent MDA2000R portable USB digital microscope with reticl measurement function for textile quality control

FOB Price

Negotiable / Piece

50 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Hangzhou Shanghai Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Future Optics / OEM
Model Number	MDA2000R	Theory	Video Microscope
Drawtube	Monocular

Product Description

Specifications

Conjugate system:40X, 240X
Achromatic objective
Inclined illumination of 8 LED
1600*1200 for image & moive
Win8,Mac

♦Features:

1. Digital imaging module:2.0MP high performance CMOS imaging module;

2. Imaging software: Future Win Joe image & movie capturing and processing program

3. Optical conjugation imaging module: One set of lenses offers two optical magnifications: 2.5X and 0.4X;

4. Zoom and focus mechanism: Big focus wheel and double helix rail design offers smooth and fine adjustment of focus;

5. Uniform illumination part: Falling–in ring–lighting panel with 8 LED lamp.

6. Calibration ruler: 0.1mm/10mm calibrating slide.

♦Applications:

To measure the fine size which you cannot measure with a vernier scale and to check the tiny defects you cannot find by your human eye.

To measure the size of a tiny gap of a metal camera adapter and to take pictures of the metal camera surface texture for evaluation of quality, including surface roughness, contour, form, waviness and defects.

Calibration:

With a 10mm/ 0.1mm glass micro ruler (Figure 1), to calibrate the movable reticle of the software (Figure 2).

Figure 1 A 10mm / 0.1mm ruler Figure 2 A movable reticle of Future Win Joe

At 40X, the 1mm length of ruler is covered by 13.75 units of reticle, so the division value of reticle is: 1 / 13.75 =0.072mm (Figure3).

At 240X, the 1mm length of ruler is covered by 52.0 units of reticle, so the division value of reticle is: 1 / 52.0 =0.019mm (Figure 4).

Figure 3 Calibration of vertical line at 40X Figure 4 Calibration of vertical line at 240X

Measurement:

People usually estimate fabric density and fabric color with a traditional optics pick glass. Now with the help of MDA2000 portable USB digital microscope, accurate measurement of warp threads and weft threads per millimeter can be well done. From Figure 5, you can work out that 4 warp threads are covered by 12 units in horizontal reticle and 3 weft threads are covered by 12 units in vertical reticle (1 mm is calibrated to 12 units of reticle at 40X ). So we can say this chemical fabric is of density: 40 warp threads and 30 weft threads (threads per cm).

Figure 5: To measure fabric density at 40X Figure 6: To inspect single thread at 240X

Figure 7: Fabric of silk stockings 240X Figure 8: Fabric of demin 240X Figure 9: Fabric of wool 240X

♦Detail Specifications:

Capture Mode	Picture and Video
Sensor Parameter	1/3.2” 2.0MP Color CMOS
Max. Resolution	1600*1200
Pixel Size	2.8µm*2.8µm
Sensitivity	1.0V / lux-sec
Dynamic Range	71.0 dB
S/N Ratio	42.3 dB
Working Distance	5.0MM ---∞
Division of calibration ruler	0.1mm
Magnification	1---40X; 240X
Spectral Range	400-650nm(with IR-filter)
Frame Rate	7.5fps@1600*1200
Preview Model	16001200;12801024; 640480; 320240
Exposure	ERS or Manual
Power Consumption.	348 mW
White Balance	ERS or Manual
Out Interface	USB2.0
Device Size	Φ45mm*95mm
Device Weight	0.12kg
System Compatibility	32bit and 64bit, XP, Vista, Win7,Win8, Mac
Language of software	English, French, German, Spanish, Japanese, Chinese, Russian
