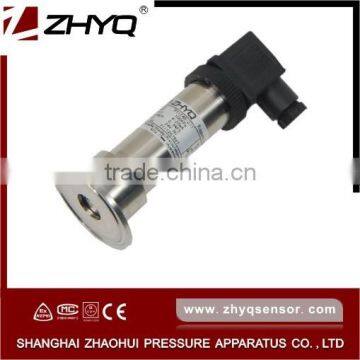

Clamp Mounting Flush Diaphragm Pressure Transmitter for Food Machinery
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Accuracy 4-20mA Diffused Silicon Pressure Transmitter
-
4-20mA Explosion Proof Pressure Transmitter for Coal Mine Application
-
Flush Diaphragm 4-20mA Pressure Transmitter for High Density Liquid
-
Standard Mv/v Output Strain Gauge China Pressure Transmitter
-
Moderate and High Temperature 4-20mA Pressure Transmitter for Industrial
-
4-20mA Ceramic Pressure Transmitter for Industrial Application
Product Details
| Place of Origin | Shanghai, China | Brand Name | ZHYQ | |
| Model Number | PT124B-217 |
Product Description
Description

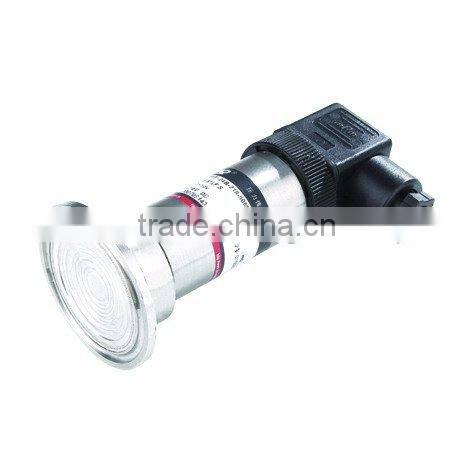

PT124B-217 is clamp mounting flush diaphragm pressure transmitter , this clamp mounting pressure transmitter mostly for food machinery , this pressure transmitter adopting the special sensor chip with exact accuracy and high stability and exact compensated technology , this clamp mounting pressure transmitter is suitable for pressure measuring and controlling in the clean asepsis conditions and the conditions which are easy to block.
Feature
clamp mounting pressure transmitter for food machinery
It adopts firm material with special treatment, design with compact construct,
corrosive-resistant, shock-resistant,
siutable for the low pressure measurement occasion,
suitable for the measurement of viscous fluids or port is easily blocked medium .
international standard quality , can replace other brand absolutely .
Application
Paper & Pulp, Paint
Polyurethane device
Hydraulic Press
Medical pharmacy
Food & Beverage Processing
Specification
Name | clamp mounting flush diaphragm pressure transmitter |
Model | PT124B-217 |
Pressure range | -1~0~60 bar |
Over load | 150%FS |
Burst pressure | 300%FS |
Output | 4-20mA,0-5V, 0-10V |
Power supply | 24 V DC (12~36) VDC |
Response time | <5ms |
Combine error | 0.25%FS; 0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
Repeatability | ≤ +/- 0.2%FSO |
Long term stability | ≤ +/-0.2%FS/year |
Pressure connection | 1.0 ″ , 1.5 ″ , or others |
Operating temperature | -20 °C ~ 80 °C |
Temperature compensation | 0°C ~ 75°C |

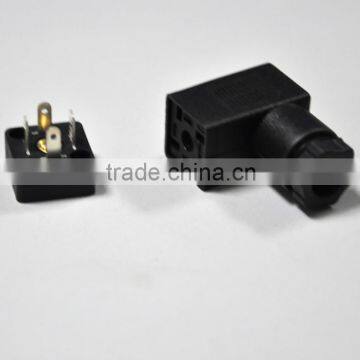

Electrical connector | Bendix connector,Hirschman DIN4365 and Gland lead |

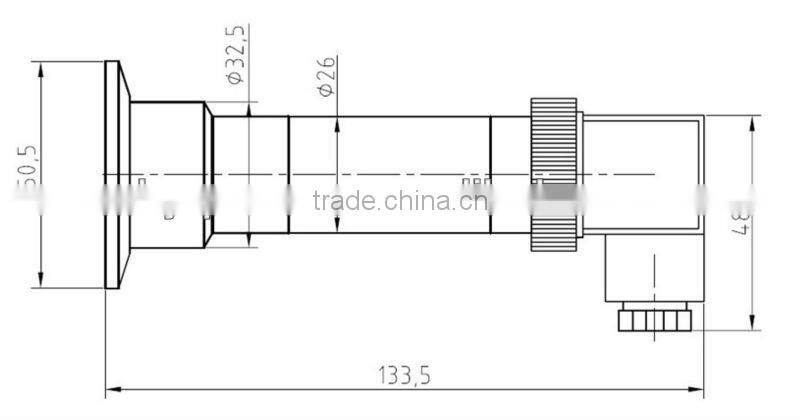

Dimension
Order Guide : with "* "are required , with "---"is optional
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
