Help Center3.33mV/V Rigid Melt Pressure Transducer With DIN Connector
Related Products
-
Oil Filled 3.33mV/V Rigid Melt Pressure Transducer With ThermocoupleUS$ 50 - 250MOQ: 1 Piece -
MV/V Output Mercury Free Flexible Melt Pressure Sensor With ThermocoupleUS$ 50 - 250MOQ: 1 Piece
-
Oil Filled 3.33mv/v Flexible Melt Pressure Sensor for Food MachineryUS$ 50 - 300MOQ: 1 Piece
-
Oil Filled 4-20mA Flexible Melt Pressure SensorUS$ 15 - 220MOQ: 1 Piece
-
4-20mA Flexible Mercury Free Melt Pressure Sensor With ThermocoupleUS$ 50 - 250MOQ: 1 Piece
Description

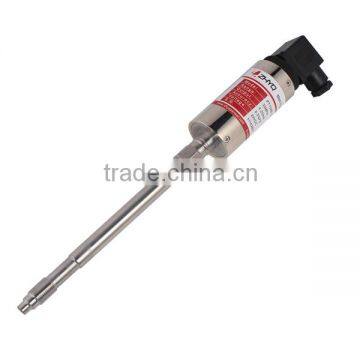

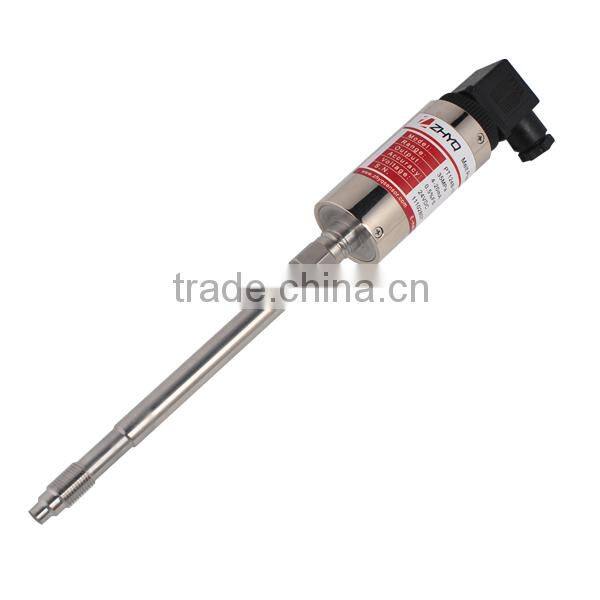

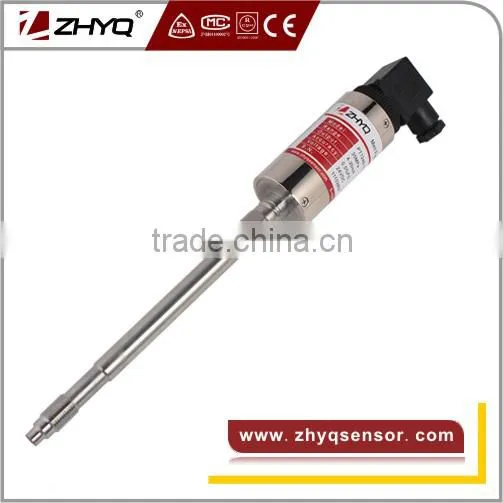

PT124G-115 is 3.33mV/V rigid melt pressure transducer with DIN connector , this series Melt Pressure Transducer can achieve the pressure and temperature measuring .This series adopts special construction design and excellent alloy elastic membrane to make its life-span ten times than the traditional diaphragm’s .Consummate encapsulation technology and perfect assembly process insure the products’ quality and high performance. It has the wide application in plastic extrusion, chemical & fiber industry, polyester industry, etc. This transmitter comes with HART communication if the output is 4-20mA , it has the function of communication and self-diagnostic.
Feature
Stainless steel welding , Easy to install
Zero and span adjustable , with HART output optional
Various amplified signals optional
Internal 80% shunt calibration
Good stability and anti-jamming capability
Excellent stability and repeatability
high accuracy ,can replace Dynisco ,Gefran ,GP50 absolutely
Application
Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment
Measurement and Control all kinds of melt fluid
Specification
Name | 3.33mV/V rigid melt pressure transducer with DIN connector |
Model | PT124G-115 |
Pressure range | 0-1MPa…0-150MPa (0-500psi…20000psi) |
Over Pressure | 1.5 X FSO |
Combined Error | 0.5% ,0.25% FSO (Including Linearity, Repeatability & Hysteresis) |
Output | 2mV/V; 3.33mV/V |
Input Voltage | 10VDC |
Repeatability | +/- 0.2%FSO |
Bridge Resistance Input | 345 Ohms minimum |
Bridge Resistance Output | 350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
Insulation Resistance | 200 megohms @ 100 Vdc |
Max Diaphragm Temperature | 400 °C |
Mounting Torque | 500 inch/lbs. max. |
Standard Wetted Parts | Diaphragm coated 15-5 PH SST |
Electrical connector | DIN |
Process connector | M14×1.5, 1/2-20UNF, M18×1.5 Optional |

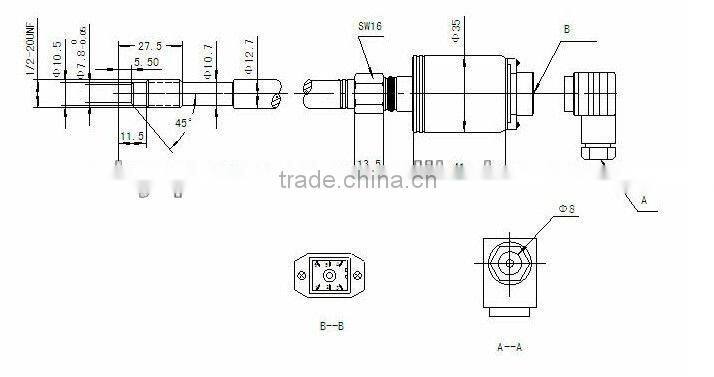

Dimension
Order Guide : with "* "are required , with "---"is optional
Model | Range | output | Rigid & flexible length (inch) | Screw Thread | Electric connector | Accuracy | others |
PT124G-115 | * | * | * | * | * | * | --- |
Example:PT124G-115-500Bar-2mV/V -6”-1/2-20UNF-DIN-0.5% | |||||||
This 3.33mV/V rigid melt pressure transducer with DIN connector can matching with our N series digital pressure indicator to local display the pressure .
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
