Oil Filled 3.33mV/V Rigid Melt Pressure Transducer With Thermocouple
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
MV/V Output Mercury Free Flexible Melt Pressure Sensor With Thermocouple
-
Oil Filled 3.33mv/v Flexible Melt Pressure Sensor for Food Machinery
-
Oil Filled 4-20mA Flexible Melt Pressure Sensor
-
4-20mA Flexible Mercury Free Melt Pressure Sensor With Thermocouple
-
Capillary Melt Pressure Transmitter for Space Restricted Area
-
MV/V Output Capillary Melt Pressure Sensor for Limited Space
Product Details
| Place of Origin | Shanghai, China | Brand Name | ZHYQ | |
| Model Number | PT124G-113T |
Product Description
Description

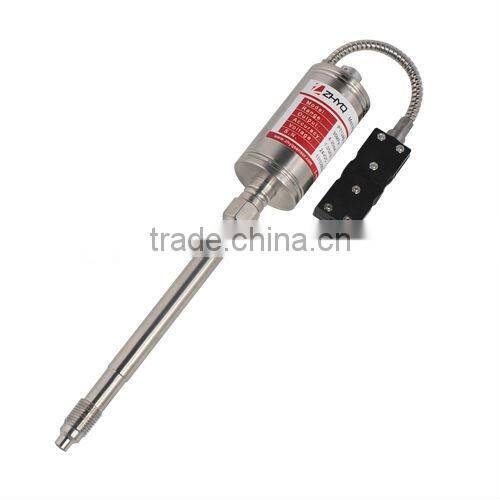

PT124G-113T is oil filled 3.33mV/V rigid melt pressure transducer with thermocouple . this series is food grade melt pressure transducer with E thermocouple , it is designed with rigid stem & with thermocouple can measure the pressure and temperature in one point , oil filled , avirulent medium ,sanitary pressure sensor , If the diaphragm damaged during process, the leaking medium is no harm to the human body or ambient; and built in 80% shunt calibration , can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand; it is international standard output, can replace Dynisco or Gefran products absolutely . PT124G-113T welding with amplify circuit can be change to PT124B-113T , the signal can be connected with PLC directly .
Feature
High-standard performance quality
Stainless steel welding ,Simple installation
oill filled ,environmental and non-toxic material
80% internal calibration
measure the pressure and temperature in one point
Excellent stability and repeatability
Application
sanitary medicine&food process equipment
drinking water enviromental monitoring
industrial testing and controlling
automatic testing system
Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment, etc
Specification
Name | oil filled 3.33mV/V rigid melt pressure transducer with thermocouple |
Model | PT124G-113T |
Pressure range | 0-1MPa…0-150MPa (0-1500psi…0-20000psi) |
Over Pressure | 1.5 X FSO |
Combined Error | ± 1.5% FSO; ± 1.0% FSO (Including Linearity, Repeatability & Hysteresis) |
Output | 3.33 mV/V, 2mV/V |
Input Voltage | 10VDC |
Repeatability | +/- 0.2%FSO |
Bridge Resistance Input | 345 Ohms minimum |
Bridge Resistance Output | 350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
Insulation Resistance | 200 megohms @ 100 Vdc |
Max Diaphragm Temperature | 400 °C |
Mounting Torque | 500 inch/lbs. max. |
Standard Wetted Parts | Diaphragm coated 15-5 PH SST |
Electrical connector | 5PIN, 6PIN optional |
Thermocouple Type | J.K.E.PT100 optional |
Process connector | 1/2″-20UNF, M14×1.5, M18×1.5 Optional |

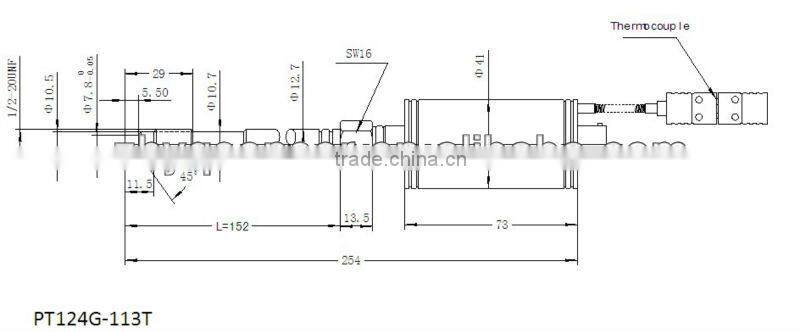

Dimension
Orde Guide : with "* "are required , with "---"is optional
Model | Range | output | Rigid & flexible length (inch) | Screw Thread | Thermocouple | Electric connector | Accuracy | others |
PT124G-113T | * | * | * | * | * | * | * | --- |
Example:PT124G-113T-500Bar-2mV/V -6”-1/2-20UNF-J-5PIN-0.5% | ||||||||
This oil filled 3.33mV/V rigid melt pressure transducer with thermocouple can matching with our N series digital pressure indicator to local display the pressure and temperature
