Mv/v Output Flexible Melt Pressure Transducer for Extruder Machinery

Description:

PT124B-121T is mv/v output flexible Melt Pressure Transducer for extruder machinery , this series Melt Pressure Transducer (Flexible stem) , with thermocouple can measure the pressure and temperature in one point. this melt pressure transducer is widely used in both domestic and abroad. it can be utilized together with the N Series Intelligent Digital Pressure Instrument. Zero & full span can be adjustable,  This flexible pressure transducer of PT124G-121T welding with amplify circuit can be change to PT124B-121T , the signal be connected with PLC directly , with advantages of high precision and reliable pressure measuring and good quality and internal 80% calibration. international standard , can replace Dynisco ,Gefran ,GP50 absolutely , this melt pressure transducer can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand. And is widely used in the domestic.

Feature

Economic flexible melt pressure transducer ,Stainless steel welding,Easy to install

Zero and span adjustable

Various amplified signals optional

Internal 80% shunt calibration

Good stability and anti-jamming capability

Excellent stability and repeatability

can replace Dynisco ,Gefran ,GP50 absolutely

Application

Chemical fiber Equipment

Plastic and Rubber manufacturing equipment

Medicine & Food process equipment

Measurement and Control all kinds of melt fluid

Specifications:

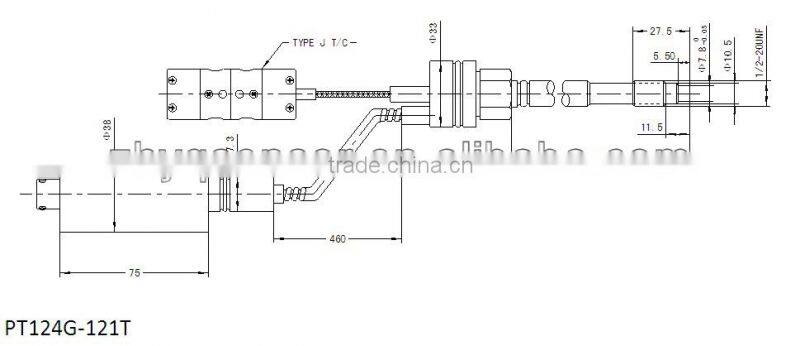

Dimension

Order Guide :  with "* "are required , with "---"is optional
