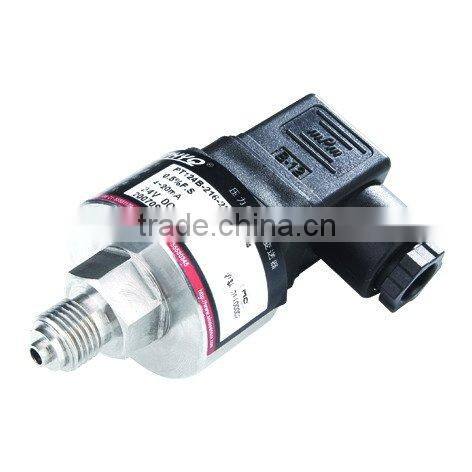

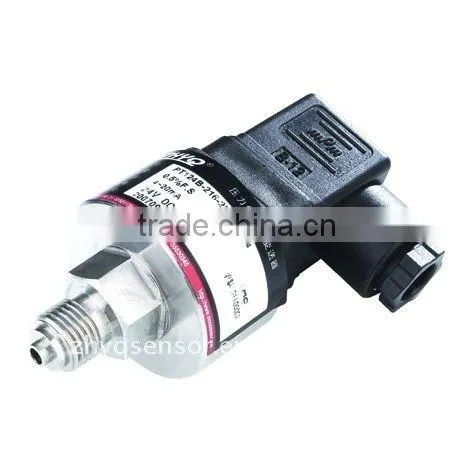

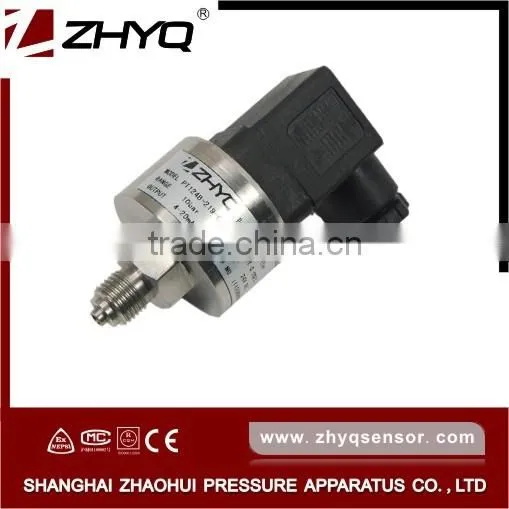

4-20ma Shipping/marine Water Pressure Transmitter
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
4-20mA Ouput Low Cost Melt Pressure Transmitter With Thermocouple
-
0-10V Output Lower Cost Melt Pressure Transmitter
-
4-20mA Rigid Melt Pressure Transmitter With Thermocouple
-
Mv/v High Accuracy Rigid Melt Pressure Transducer With J Thermouple
-
Mv/v Output Rigid Stem Melt Pressure Transducer With Thermocouple
-
Mv/v Output Flexible Melt Pressure Transducer for Extruder Machinery
Product Details
| Place of Origin | Shanghai, China | Brand Name | ZHYQ | |
| Model Number | PT124B-219 |
Product Description
Description
PT124B-219 is 4-20ma shipping/marine water pressure transmitter , this series can replace Wika (ECO-1) pressure sensor , the material is SS316L for marine , this pressure sensor has been designed for all fields of industrial pressure measurement. With IP65 protection and 316 L seal construction,strong impact resistance, good linearity, long-term stability and repeatability, wide range temperature compensation, corrosion resistance, etc. this pressure sensor typical applications are in the fields of shipping industry, Defense industry, scientific research, Space industry, Petroleum, Chemical industry, Electric power, Ocean and other fields. can replace Wika (ECO-1) brand absolutely .
Feature
SS316L pressure sensor for marine
Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
One piece stainless steel compact dimension design
can replace Wika (ECO-1) brand
Application
Mechanical Engineering industry
Hydraulic and Level measurement
Gas tank pressure monitoring
Industrial test and control
General Pressure Measurements
marine or sea water
Specification
Name | 4-20ma shipping/marine water pressure transmitter |
Model | PT124B-219 |
Pressure range | 0~1bar~1000bar |
Over load | 150%FS |
Burst pressure | 300%FS |
Output | 4-20mA, 0-5V, 0-10V,0.5-4.5V |
Power supply | 24V(12~36V)DC, 5VDC |
Response time | <5ms |
Combine error | 0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
Repeatability | ≤ +/- 0.2%FSO |
Long term stability | ≤ +/-0.2%FS/year |
Pressure connection | M20×1.5,G1/2,G1/4,1/2NPT ( customer tailor ) |
Operating temperature | -20 °C ~ 80 °C |
Temperature compensation | 0°C ~ 60°C |
Electrical connector | Hirschman DIN4365 |

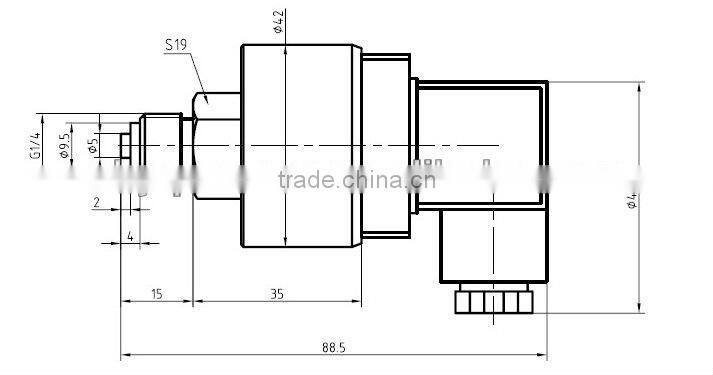

Dimension
Order Guide : with "* "are required , with "---"is optional
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.

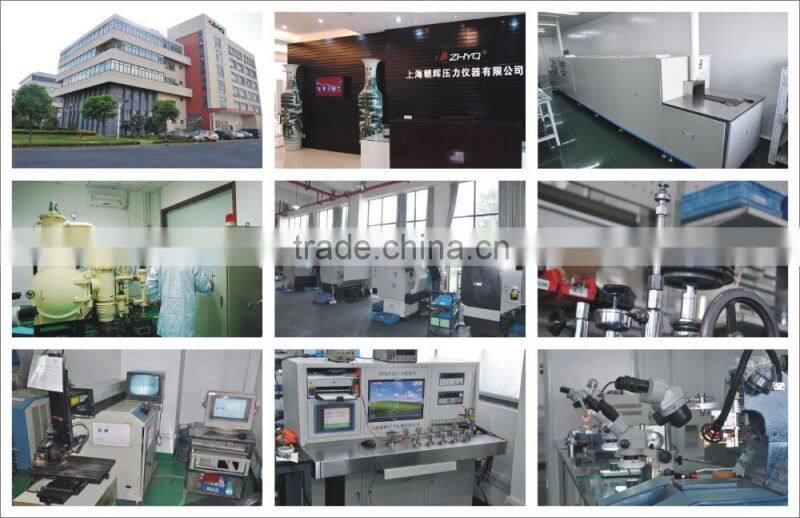

Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
