Description

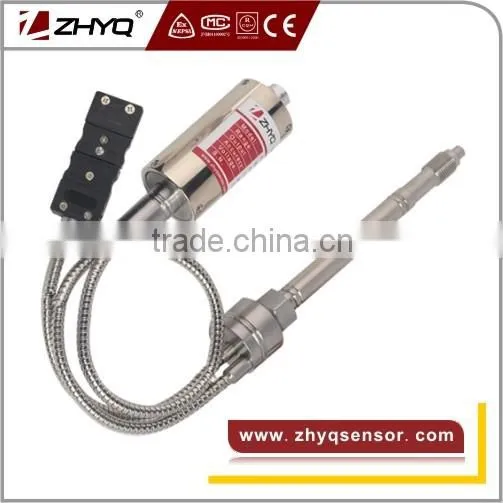

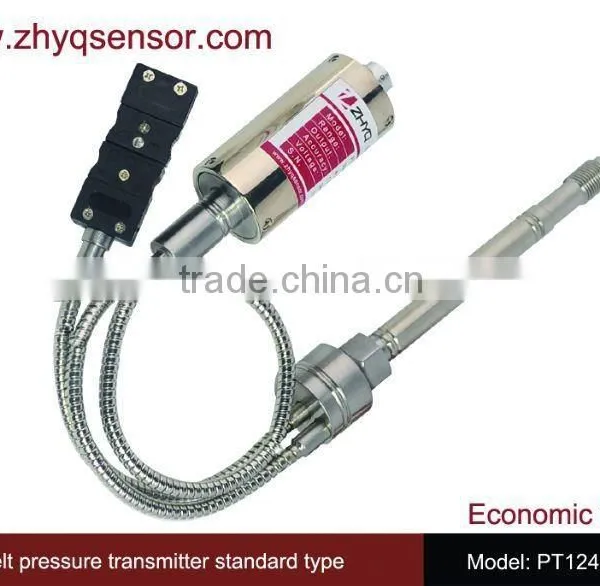

PT124B-121T is 4-20mA ouput low cost melt pressure transmitter with thermocouple , this series Melt Pressure Transducer (Flexible stem) , with thermocouple can measure the pressure and temperature in one point. is widely used in both domestic and abroad.This series can be utilized together with the N Series Intelligent Digital Pressure Instrument. Zero & full span can be adjustable, PT124G-121T welding with amplify circuit can be change to PT124B-121T , the signal be connected with PLC directly , with advantages of high precision and reliable pressure measuring and good quality and internal 80% calibration. international standard , can replace Dynisco ,Gefran ,GP50 absolutely .
Feature
Stainless steel welding ,Easy to install
Zero and span adjustable
Various amplified signals optional
Internal 80% shunt calibration
Good stability and anti-jamming capability
Excellent stability and repeatability
can replace Dynisco ,Gefran ,GP50 absolutely .
Application
Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment
Measurement and Control all kinds of melt fluid
Specification
Name |
4-20mA ouput low cost melt pressure transmitter with thermocouple |
Model |
PT124B-121T |
Pressure range |
0-3.5MPa…0-150MPa (0-500psi…20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
± 1.0% FSO; ±0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
Output |
4-20mA ,0-5V ,0-10V |
Input Voltage |
24VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Output |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
400°C |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |
Thermocouple type |
J,K,E,PT100 |
Electrical connector |
5PIN |
Process connector |
1/2″-20UNF, M14×1.5, M18×1.5 Optional |

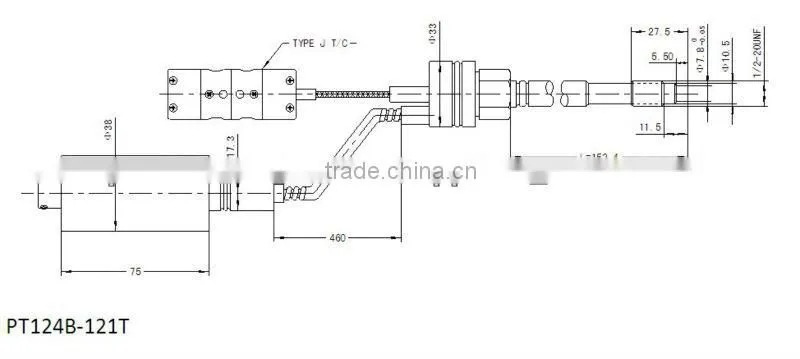

Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
output |
Rigid & flexible length (inch) |
Screw Thread |
Thermocouple |
Electric connector |
Accuracy |
others |
PT124B-121T |
* |
* |
* |
* |
* |
* |
* |
--- |
Example:PT124B-121T-500Bar-4-20mA -6/18”-1/2-20UNF-J-5PIN-1.0% | ||||||||
this 4-20mA ouput low cost melt pressure transmitter with thermocouple can mating with our N series to local display the pressure and temperature at the same time .
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
