High-Temperature Pressure Transmitter With 500°C Capability, ±0.03%FS/C Drift, and 4-20mA Output for Industrial Process Control

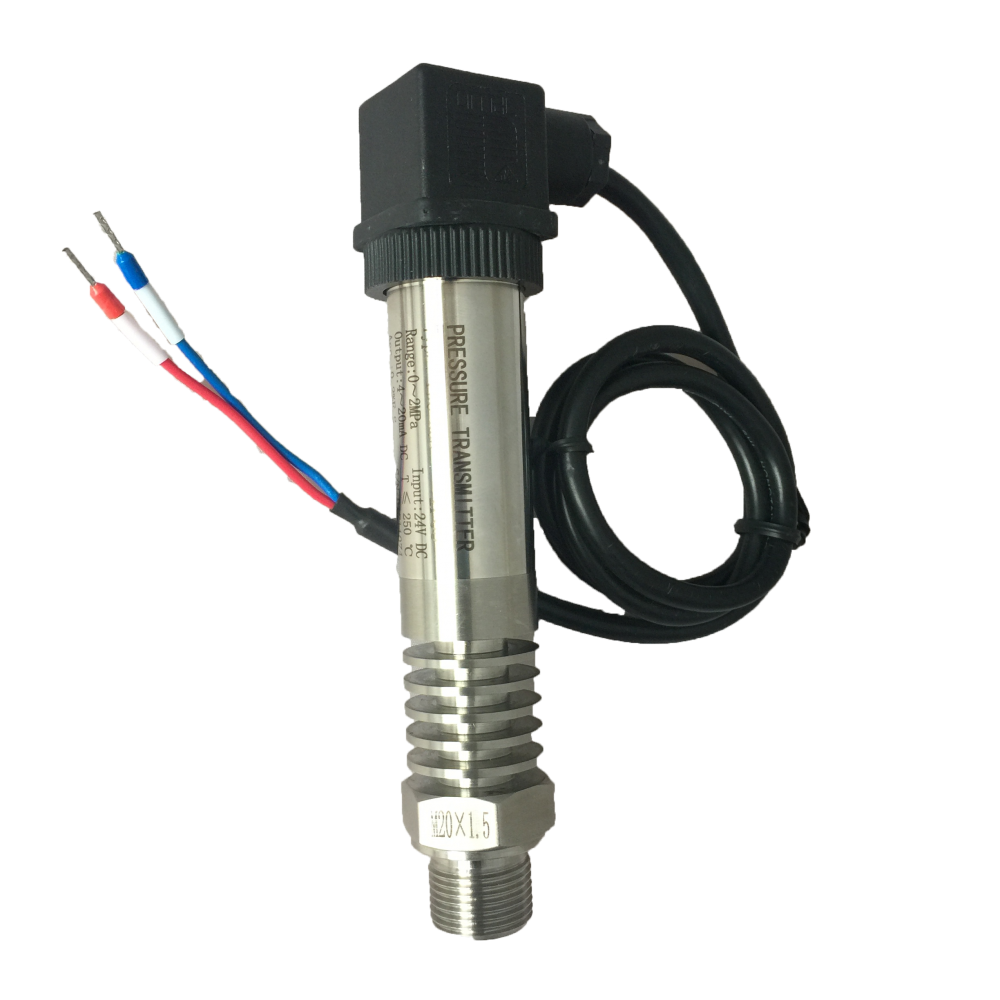

High - Temperature Pressure Transmitter Series

Product Introduction

The high - temperature pressure transmitter adopts a diffused silicon pressure core as the sensing element. The built - in processing circuit converts the millivolt signal of the sensor into standard voltage, current, and frequency signals for output. It can be directly connected to computers, control instruments, display instruments, etc., and supports long - distance signal transmission. The high - temperature type adopts an integrated all - stainless - steel structure. After multiple stainless - steel welding processes, an all - solid - state design is achieved, allowing it to be used for a long time in harsh environments. Additionally, the product is easy to install and has high anti - interference and anti - impact properties.

Technical Specifications

• Power Supply: 12VDC - 36VDC (24VDC is conventional).

• Output Signal: 4 - 20mA, 0 - 5V, 0 - 10V, 1 - 5V, 1 - 10V (optional).

• Measurement Range: - 0.1... 0.02... 100Mpa.

• Compensation Temperature: - 10 - 70℃.

• Medium Temperature: - 10 - 75℃ (up to 500℃ with additional heating).

• Ambient Temperature: - 20 - 80℃.

• Shell Protection: IP65.

• Pressure Types: Gauge pressure, absolute pressure, negative pressure.

• Connection: M201.5, G1/2, G1/4, M272, NPT1/4, NPT1/2, flange, clamp, etc. (multiple installation methods are optional).

• Accuracy: 0.25, 0.3, 0.5 (optional).

• Long - term Stability: ≤0.2% FS/year.

• Zero Point Temperature Drift: ±0.03% FS/℃.

• Sensitivity Temperature Drift: ±0.03% FS/℃.

• Overpressure Resistance: 200% FS.

Features

• Constructed with 316L stainless steel isolation diaphragm.

• High precision, all - stainless - steel structure.

• Equipped with a micro - type amplifier circuit for voltage and current signal output.

• Excellent anti - interference performance and good long - term stability.

• Diverse external structural designs.

• Warranty period: 12 months.
