Description

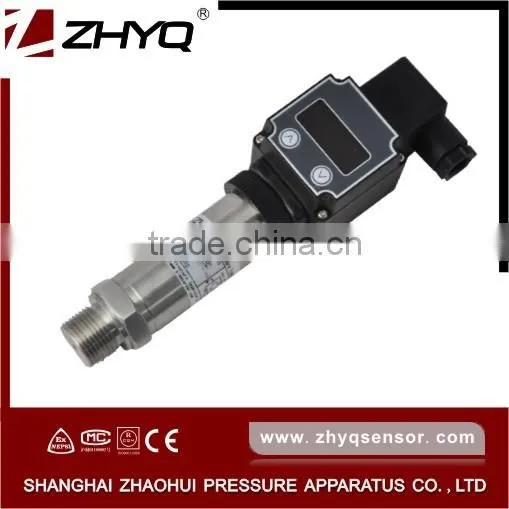

PT124B-216 is 4-20mA LED Local display pressure transmitter for industrial application , This LED local display pressure transmitter with 4-20mA output , this pressure transmitter Adopting global advanced electron ceramic technology, with low range has the character of overload resistance, high impact resistance, excellent linearity, lasting high stability, wide temperature range, corrosion proof, etc. This pressure sensor is 4-20mA output , and with LED local display . it can be applied in Defense industry, scientific research, Space industry, Petroleum, Chemical industry, Electric power, Ocean and other fields.
Feature
wide Pressure Range: -1...0…2000bar
High accuracy, stable capability, little temp-draft
overload resistance ,high impact resistance,excellent linearity,lasting high stability
Wide temperature range, corrosion proof
4-20mA output , LED local display .
Application
Petrochemical industry
Health and Medical
Food & Beverage Processing
Hydraulic pressure
Auto-controlling house
Constant pressure water supply
Liquid pressure measuring and controlling in automatization fields.
Specification
Name |
4-20mA LED Local display pressure transmitter for industrial application |
Model |
PT124B-216 |
Pressure range |
-1~0~2000bar |
Over load |
150%FS |
Burst pressure |
300%FS |
Output |
4-20mA |
Power supply |
12~36VDC |
Response time |
<5ms |
Combine error |
0.5% FSO; 0.25%FS (Including Linearity, Repeatability & Hysteresis) |
Repeatability |
≤ +/- 0.2%FSO |
Long term stability |
≤ +/-0.2%FS/year |
Pressure connection |
M20×1.5,G1/2,G1/4,1/2NPT ( customer tailor ) |
Operating temperature |
-20 °C ~ 80 °C |
Temperature compensation |
0°C ~ 75°C |
Electrical connector |
Hirschman DIN43650 |
Dimension
Order Guide : with "* "are required , with "---"is optional
Note: when order not emphasized with need alarm output , standard product is without alarm .
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
