Mercury Free Rigid Melt Pressure Transducer With MV/V Output
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Replace Dynisco PT4624 4-20mA Flexible Melt Pressure Transmitter
-
Panel-mount Dual 4-digit Pressure Indicator
-
4-20mA HART Melt Pressure Transmitter With LED Display & Thermocouple
-
Rigid Stem Flange Mounting Melt Pressure Transmitter
-
4-20mA Melt Pressure Transducer With HART
-
Explosion Proof Melt Pressure Transmitter With LCD Display and HART
Product Details
| Place of Origin | Shanghai, China | Brand Name | ZHYQ | |
| Model Number | PT124G-113 |
Product Description
Description

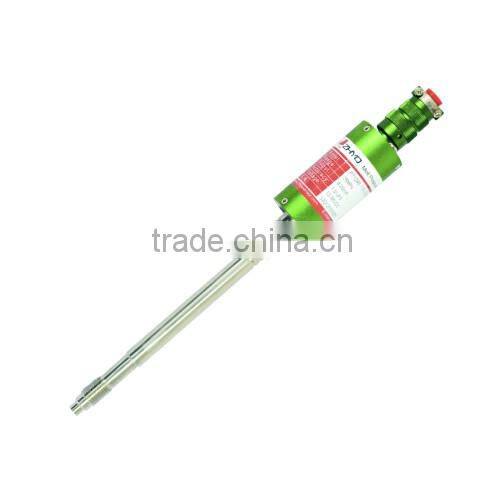

PT124G-113 is mercury free rigid melt pressure transducer with mV/V output . it is food grade melt pressure transducer with mV/V output , this melt pressure transducer is designed with rigid stem ,oil filled , avirulent medium ,sanitary pressure sensor , If this melt pressure transducer diaphragm damaged during process, the leaking medium is no harm to the human body or ambient; the melt pressure transducer built in 80% shunt calibration , can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand; it is international standard output , the melt pressure transducer of PT124G-113 welding with amplify circuit can be change to PT124B-113 , the signal be connected with PLC directly and can replace Dynisco or Gefran products absolutely .
Feature
High-standard performance quality
Stainless steel welding ,Simple installation
oill filled ,environmental and non-toxic material
80% internal calibration
Excellent stability and repeatability
oil filled melt pressure transducer with mV/V output
Application
sanitary medicine&food process equipment
drinking water enviromental monitoring
industrial testing and controlling
automatic testing system
Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment, etc
Specification
Name | mercury free rigid melt pressure transducer with mV/V output |
Model | PT124G-113 |
Pressure range | 0-1MPa…0-150MPa (0-1500psi…0-20000psi) |
Over Pressure | 1.5 X FSO |
Combined Error | ± 1.5% FSO; ± 1.0% FSO (Including Linearity, Repeatability & Hysteresis) |
Output | 3.33 mV/V, 2mV/V |
Input Voltage | 10VDC |
Repeatability | +/- 0.2%FSO |
Bridge Resistance Input | 345 Ohms minimum |
Bridge Resistance Output | 350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
Insulation Resistance | 200 megohms @ 100 Vdc |
Max Diaphragm Temperature | 400 °C |
Mounting Torque | 500 inch/lbs. max. |
Standard Wetted Parts | Diaphragm coated 15-5 PH SST |
Electrical connector | 5PIN, 6PIN |
Process connector | 1/2″-20UNF, M14×1.5, M18×1.5 Optional |

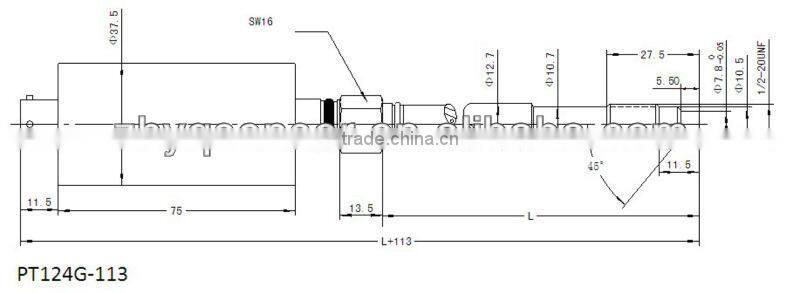

Dimesion
Order Guide : with "* "are required , with "---"is optional
Model | Range | output | Rigid & flexible length (inch) | Screw Thread | Electric connector | Accuracy | others |
PT124G-113 | * | * | * | * | * | * | --- |
Example:PT124G-113-500Bar-2mV/V -6”-1/2-20UNF-5PIN-0.5% | |||||||
This Melt pressure transmitter can matching with Intelligent Digital Indicators N70/N80/N90 :
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
