Description
PT124B-111T is 4-20mA rigid melt pressure transmitter with thermocouple for extrusion line , this series is multi function rigid Melt Pressure Transdmitter with thermocouple , it can measure the pressure and temperature at one point. The melt pressure transmitter can be used together with the PY Series Intelligent Digital Pressure Instrument of ZHYQ or other brand instrumentation. Zero & full span can be adjustable, with amplify signal can be connected with PLC. With the advantage of high precision and reliable pressure measuring and good quality, internal 80% calibration and etc. standard output signal which can replace Dynisco/ Gefran products absolutely .
Feature
High-standard quality
Stainless steel Seal
Simple Installation
80% inner calibration
Excellent stability and repeatability
multi function rigid pressure transducer with thermocouple
Application
various plastic extrusion lines
chemical fiber manufacturing equipment
plastic rubber machine
polyester equipment
petrochemical equipment
can measure the temperature
Specification
Name |
4-20mA rigid melt pressure transmitter with thermocouple for extrusion line |
Model |
PT124B-111T |
Pressure range |
0-3.5MPa…0-150MPa (0-500psi…20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
± 1.5% FSO; ±1.0% FSO (Including Linearity, Repeatability & Hysteresis) |
Output |
4-20mA ,0-5V, 0-10V |
Input Voltage |
24VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Output |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
400 °C |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |
Thermocouple type |
J, K, E, PT100 |
Electrical connector |
5PIN |
Process connector |
M14×1.5, 1/2-20UNF, M18×1.5 Optional |

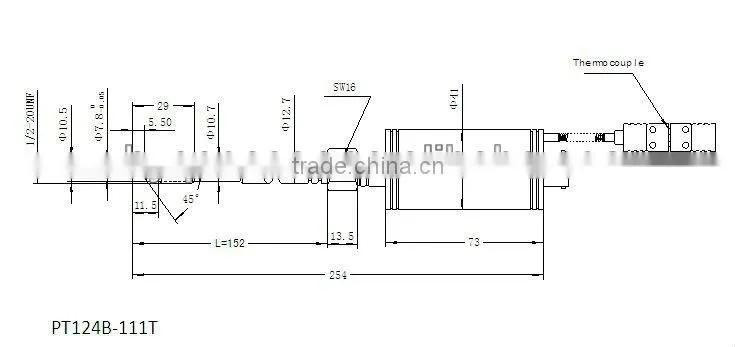

Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
output |
Rigid & flexible length (inch) |
Screw Thread |
Thermocouple |
Electric connector |
Accuracy |
others |
PT124B-111T |
* |
* |
* |
* |
* |
* |
* |
--- |
Example:PT124B-111T-500Bar-4-20mA -6”-1/2-20UNF-J-5PIN-1.0% | ||||||||
This 4-20mA rigid melt pressure transmitter with thermocouple can matching with our N series digital pressure gauge to local display the pressure and temperature
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
