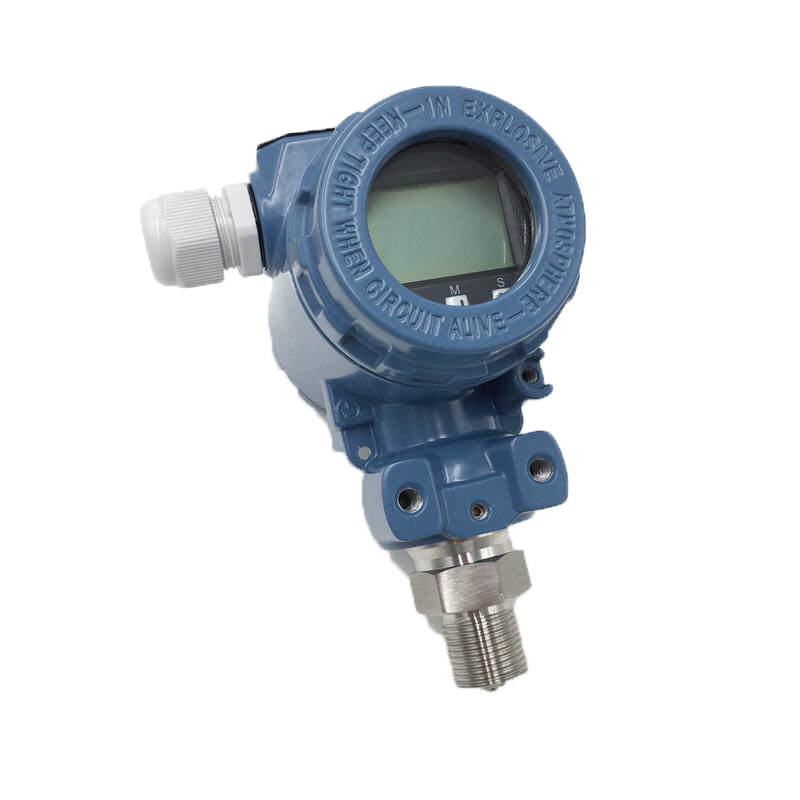

Industrial Pressure Transmitter Series

工业型压力变送器

Product Introduction
The industrial pressure transmitter uses an OEM fully - welded pressure core and a micro - amplifier processing circuit. The zero point and range can be migrated. It can be directly connected to computers, control instruments, and display instruments, enabling long - distance signal transmission. With a high - protection - grade shell, this transmitter can be used for a long time in harsh environments. It's easy to install and has high anti - vibration and anti - impact capabilities.
Technical Performance

  • Power Supply: 12VDC - 36VDC (Conventional: 24VDC)

  • Output Signals: 4 - 20mA, 0 - 5V, 0 - 10V, 1 - 5V, 1 - 10V (Optional)

  • Measuring Range: - 0.1... 0.02... 100Mpa

  • Compensation Temperature: - 10 - 70℃

  • Medium Temperature: - 10 - 75℃ (Up to 500℃ with heat sinks)

  • Ambient Temperature: - 20 - 80℃

  • Shell Protection: IP68

  • Explosion - Proof Grade: CT4

  • Pressure Types: Gauge Pressure, Absolute Pressure, Negative Pressure

  • Connections: M201.5, G1/2, G1/4, M272, NPT1/4, NPT1/2, Flange, Clamp, etc. (Multiple installation methods available)

  • Accuracy: 0.25, 0.3, 0.5 (Optional)

  • Long - term Stability: ≤0.2%FS/year

  • Zero Point Temperature Drift: ±0.03%FS/℃

  • Sensitivity Temperature Drift: ±0.03%FS/℃

  • Overpressure: 200%FS

Features

  • High - temperature Resistance Options: Available in percentage display and liquid crystal display forms.

  • Over - voltage Protection: Resistant to over - voltage when surging.

  • Anti - interference: Reverse connection protection, anti - lightning, anti - impact, anti - electromagnetic interference.

  • High Protection: Protection grade IP68.

  • Explosion - proof: Explosion - proof grade CT4.

  • Warranty: 12 months.

Applications
Widely applied in industrial automation equipment matching, as well as in process control fields of aerospace, petrochemical, metallurgy, electric power, pharmaceuticals, chemical engineering, water treatment, light industry, food, shipbuilding and other industries.
