Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Horizontal Lathe Machine C6266X1500/2000/3000

Horizontal Lathe Machine C6266X1500/2000/3000

Name: Horizontal Lathe Machine C6266X1500/2000/3000
Brand: HELI
SKU: 103161963

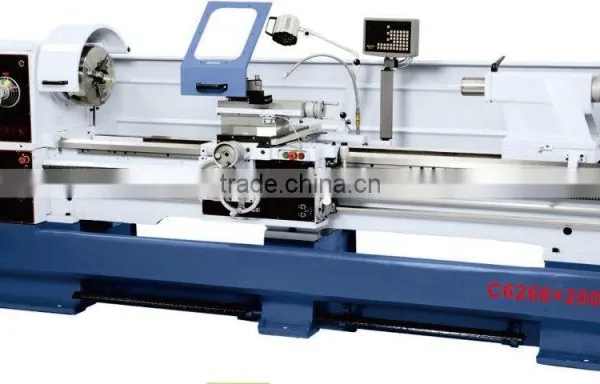

Horizontal Lathe Machine C6266X1500/2000/3000 thumbnail-1

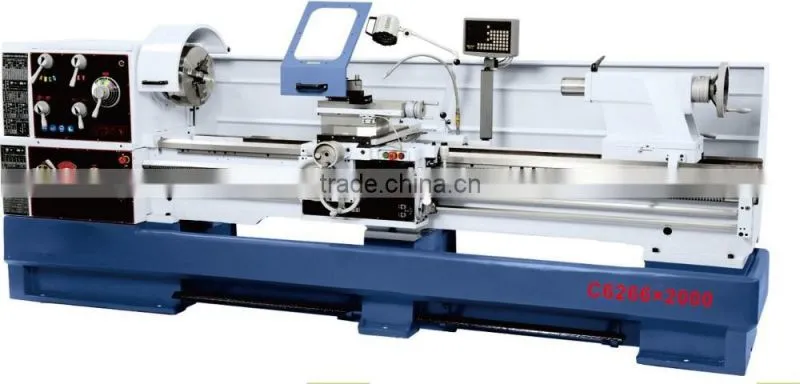

Horizontal Lathe Machine C6266X1500/2000/3000 thumbnail-2

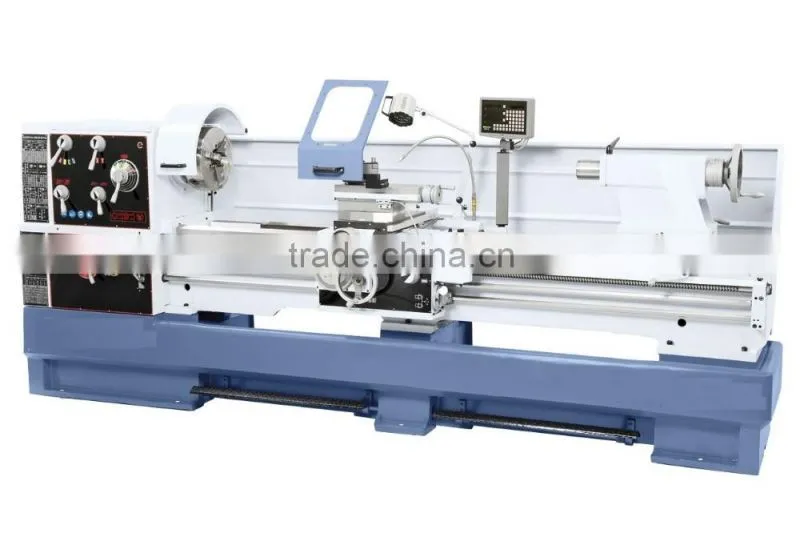

Horizontal Lathe Machine C6266X1500/2000/3000 photo-1

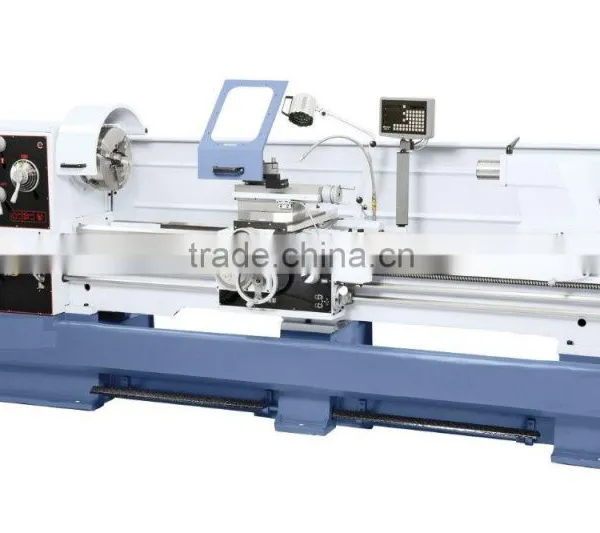

Horizontal Lathe Machine C6266X1500/2000/3000 photo-2

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 660/800mm

Place of Origin Shandong, China

Brand Name HELI

Model Number C6266 C6280

Voltage 220V/380V/400V/440V

Power(W) 7.5kw

Dimension(L*W*H) 3210x1230x1600mm

Weight 3100kg

Certification CE ISO

After-sales Service Provided No overseas service provided

Product Description

C6266/CQ6280/Features
1.Integrated and segregate foot stand for optional
2.Independent quick move system on carriage
3.Precision lubrication system on head stock
4.Clutch on head stock
5.11KW (15HP)main motor for optional
Specification
Machine Tool Type	C6266 CQ6280
Swing over bed	660mm 800mm
Swing over cross slide	440mm 570mm
Swing in gap diameter	900mm 1035mm
Length of gap	250mm
Center height	330mm 400mm
Distance between centers	1500mm/2000mm/3000mm
Width of bed	400mm
Max. section of tool	25mmx25mm
Max. travel of cross slide	368 mm 420mm
Max. travel of compound rest	230mm
HEADSTOCK
Spindle bore	105mm
Spindle nose	D1-8
Taper of spindle bore	113mm(1:20)/MT5
Spindle speed number	16
Range of spindle speed	25-1600r /min
FEEDS AND THREADS
Leadscrew pitch	40mmx2T.P.I. or 40mmx12mm
Machine Tool Type	C6266 CQ6280
Inch threads range	7/16-80T.P.I.(54 kind)
Metric threads range	0.45-120mm(54 kind)
Diametrical pitches range	7/8-160DP(42 kind)
Module pitches range	0.25-60MP(46 kind)
Longitudinal feeds range in metric lead screw	0.044-1.48mm/rev(25 kind)
Longitudinal feeds range in inch lead screw	0.00165"-0.05497"rev(25 kind)
Corss feeds range in metric lead screw	0.022-0.74mm/rev(25 kind)
Corss feeds range in inch lead screw	0.00083"-0.02774"/mm/rev(25 kind)
TAILSTOCK
Quill travel	235mm
Quill diameter	90mm
Q uill taper	MT5
MOTOR
Main motor power	7.5kw(10HP)
Coolant pump power	0.09kw(1/8HP)
DIMENSION AND WEIGHT
Overall dimension(LxWxH)	321/371/471cmx123cmx160cm 321/371/471cmx123cmx167cm
Packing size (LxWxH)	324/374/474cm x 114cmx184cm 324/374/474cmx114cmx191cm
Net weight	3060/3345/3710kg 3060/3505/3870kg
Gross weight	3535/3835/4310kg 3535/4005/4480kg
Standard accessories	Special accessories
Three jaw chuck	Living center
Steady rest	Taper turning attachment
Follow rest	Drill chuck
Face plate	QCTP
Dead center	DRO
Splash guard	Chuck cover
	Leadscrew cover
	Tool post cover
