Universal Lathe Machine

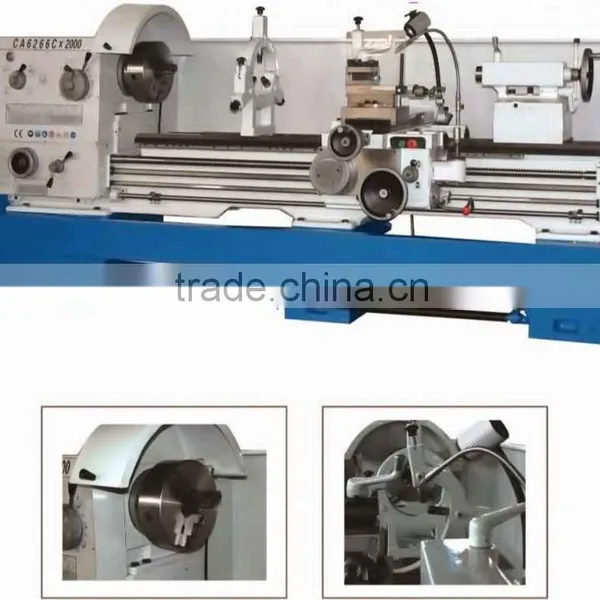

Universal Lathe Machine thumbnail-1

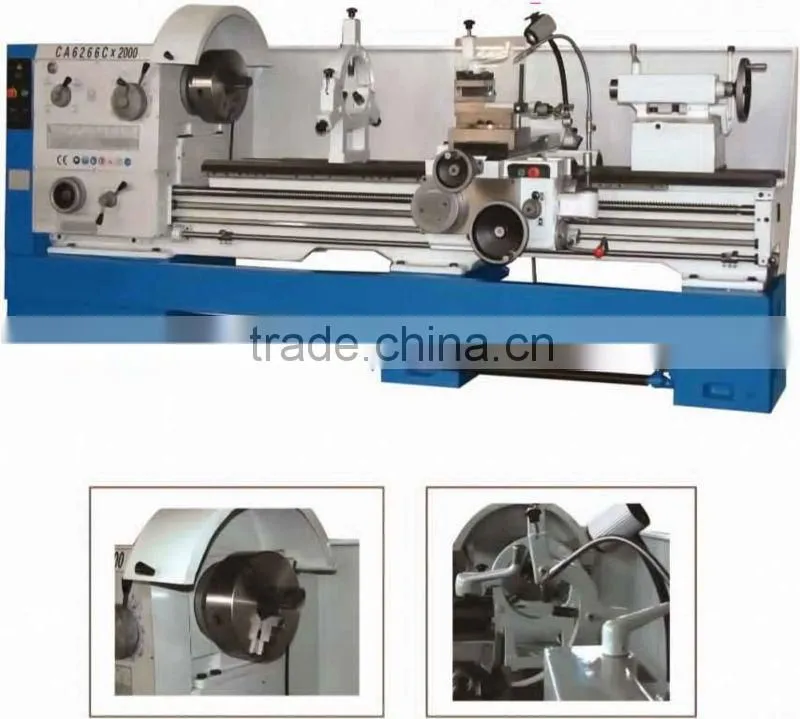

Universal Lathe Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Tengzhou Runfa Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Semi-Automatic
Place of Origin Shandong, China
Brand Name HELI
Model Number CA6226C

Specifications

1.more durable and stable
2.high rigidity and hardened guide way

Universal Lathe Machine

Model





Specifications

CA6140 CA6240

CA6140B CA6240B

CA6150 CA6250

CA6150B CA6250B

CA6150C CA6250C

CA6161 CA6261

CA6161B CA6261B

CA6161C CA6261C

CA6166 CA6266

CA6166B CA6266B

CA6166C CA6266C

CA6180 CA6280

CA6180B CA6280B

CA6180C CA6280C

Max .Swing over bed

400mm

500mm

610mm

660mm

800mm

Max .Swing over carriage

210mm

300mm

370mm

400mm

540mm

Max .Swing in gap

——

630mm

——

720mm

——

830mm

——

880mm

——

1020mm

Effective gap length

——

210mm

——

210mm

——

210mm

——

210mm

——

210mm

Max .length of work piece

750/1000/1500/2000/2200/3000mm

Width of bed

400mm

Section of turning tool

25×25mm

Spindle

Spindle speed

10-1400rpm/16-1400rpm(24steps)

Hole through spindle

52mm ,(80mm),[105mm]

Spindle taper

(MT6)(Φ90 1:20)[Φ113:20]

Feed

No. of feed

(64 kinds)(for each)

Range of metric threads

(1-192mm) (44 kinds)

Range of inch threads

(1-24tpi) (21kinds)

Range of module threads

0.25-48 (module 39 kinds)

Range of diametral pitc threads

1-96DP (37 kinds)

Tailstock

Max. tailstock spindle travel

150mm

Tailstock spindle diameter

75mm

Taper of tailstock spindle center hole

(MT5)

Main motor

7.5KW(10HP)

Packing dimensions

(L×W×H mm)

Overall dimensions for 750mm

2440×1140×1750

2440×1140×1750

2440×1140×1750

2440×1140×1750

2440×1140×1750

Overall dimensions for 1000mm

2650×1140×1750

2650×1140×1750

2650×1140×1750

2650×1140×1750

2650×1140×1750

Overall dimensions for 1500mm

3150×1140×1750

3150×1140×1750

3150×1140×1750

3150×1140×1750

3150×1140×1750

Overall dimensions for 2000mm

3650×1140×1750

3650×1140×1750

3650×1140×1750

3650×1140×1750

3650×1140×1750

Overall dimensions for 2200mm

4030×1140×1750

4030×1140×1750

4030×1140×1750

4030×1140×1750

4030×1140×1750

Overall dimensions for 3000mm

4800×1140×1750

4800×1140×1750

4800×1140×1750

4800×1140×1750

4800×1140×1750

Overall dimensions for 4000mm

5680×1140×1700

4800×1140×1750

4800×1140×1750

4800×1140×1750

4800×1140×1750

Weight(kg)

Length

G.W.   N.W.

G.W.   N.W.

G.W.   N.W.

G.W.   N.W.

G.W.   N.W.

Overall dimensions for 750mm

2100   1990

2170    2060

2300   2180

2380   2260

2520    2400

Overall dimensions for 1000mm

2190   2070

2260   2140

2380   2250

2570   2450

2720   2560

Overall dimensions for 1500mm

2350   2220

2420   2290

2577   2437

2810   2640

2980   2800

Overall dimensions for 2000mm

2720   2570

2790   2640

2940   2787

3050   2880

3260   3087

Overall dimensions for 2200mm

2800   2600

2940   2790

3120   2970

3390   3180

3490   3287

Overall dimensions for 3000mm

3300   3200

3450   3300

3600   3450

3930   3687

4220   3887

Overall dimensions for 4000mm

3500   3400

3750   3600

3950   3800

4580   4200

4850   4500
