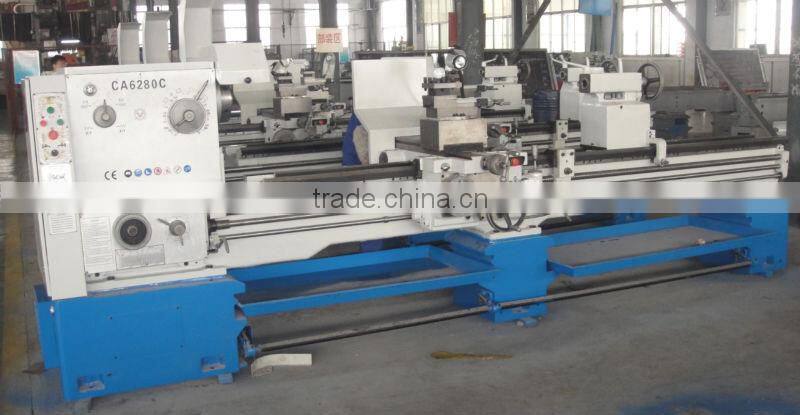

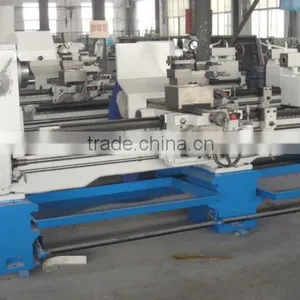

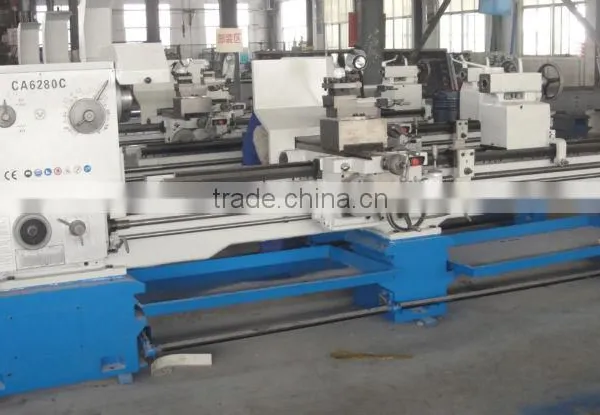

Horizontal Lathe Machine CA6280C

Name: Horizontal Lathe Machine CA6280C
Brand: HELI
SKU: 103161883
Availability: InStock

Tengzhou Runfa Machinery Co., Ltd.

Negotiable MOQ: 4 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 8

Place of Origin China

Brand Name HELI

Model Number CA6280C

Voltage 380V

Power(W) 7500

Dimension(L*W*H) 430x1140x1750

Weight 3490

Certification CE

After-sales Service Provided No overseas service provided

Specifications

High quality casting body
Hardened and ground bed way coated with Turcite-B
Integrated automaticc lubrication system

Model specifications			CA6280C
Max .Swing over bed			800mm
Max .Swing over carriage			540mm
Max .Swing in gap			——	1020mm
effective gap length			——	210mm
Max .length of work piece			2200mm
width of bed			400mm
section of turning tool			25×25mm
Spindle	spindle speed		10-1400rpm/16-1400rpm(24steps)
	hole through spindle		105mm
	spindle taper		No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed	No. of feed		(64 kinds)(for each)
	range of metric threads		(1-192mm) (44 kinds)
	range of inch threads		(1-24tpi)(21kinds)
	range of module threads		0.25-48(module 39 kinds)
	range of pitc threads		1-96DP(37 kinds)
Tailstock	Max. tailstock spindle travel		150mm
	tailstock spindle diameter		75mm
	taper of tailstock spindle center hole		NO.5 (MT5)
main motor			7.5KW(10HP)
Packing dimensions (L×W×H mm)		Overall dimensions for 2200mm	4030×1140×1750
Weight(kg)		Length	G.W. N.W.
		Overall dimensions for 2200mm	3490 3287
