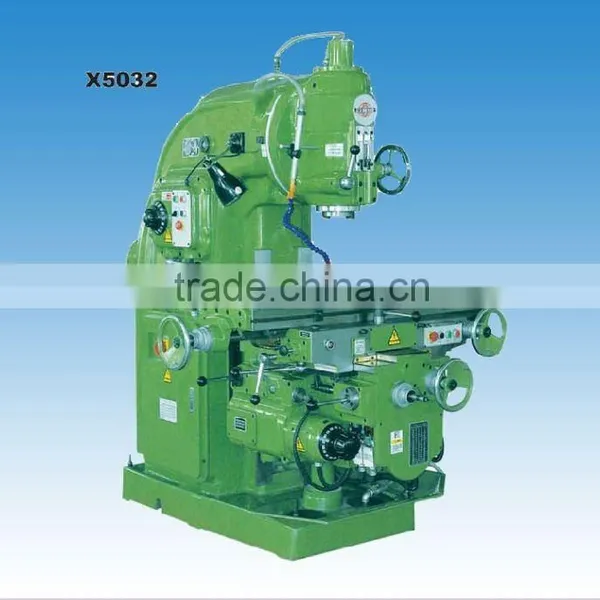

Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > X5032 Heavy Duty Vertical Milling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HELI
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
X5032 Vertical Knee Type Milling MachineNegotiableMOQ: 2 Sets -
Universal Milling Machine X6336US$ 9,000 - 11,000MOQ: 1 Set
-
X5036G Vertical Knee Type Milling MachineNegotiableMOQ: 2 Sets
-
X6332C Universal Radial Milling MachineNegotiableMOQ: 2 Sets
-
X6332B Turret Milling Machine[UNIVERSAL MILLING]NegotiableMOQ: 2 Sets
Condition
New
Place of Origin
Shandong, China
Brand Name
HELI
Model Number
X5032
Type
Vertical
CNC or Not
Normal
Specifications
1. ISO 9001:20002. high precision,high speed, good rigidity
3. perfect lubrication system
SPECIFICATION | UNIT | X5032 |
Table size | mm | 320 x 1325 |
T-slot(No./width/distance | mm | 3/18/70 |
Max. longitudinal travel(manual/automatic) | mm | 700/680 |
Max. cross travel(manual/automatic) | mm | 255/240 |
Max. vertical travel(manual/automatic) | mm | 350/330 |
Rapid speed of worktable(X,Y,Z) | mm/min | 2300/1540/770 |
Swivel angle of vertical milling head | ° | ±45 |
Spindle travel | mm | 70 |
Distance between spindle centerline and plane of column guideway | mm | 350 |
Spindle bore | mm | 29 |
Spindle taper | -- | 7:24 ISO 50 |
Distance between spindle nose and plane of worktable | mm | 60/410 |
Spindle speed step | -- | 18steps |
Range of spindle speed | r.p.m | 30~1500 |
Feed range of worktable | -- | 18steps |
Main motor power | kw | 7.5 |
Feed motor power | kw | 2.2 |
Overall size | mm | 2294 x1770 x 1904 |
N.W/G.W | kg | 2900/3200 |
