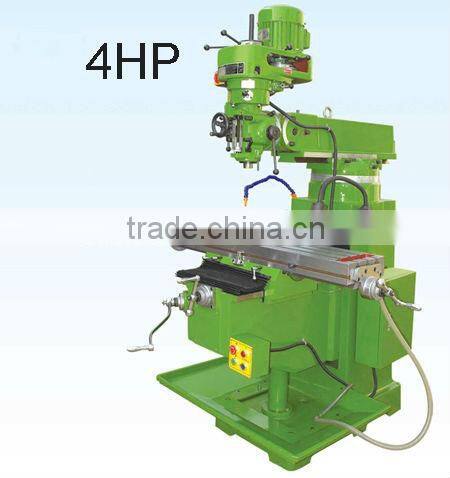

4 HP Turret Milling Machine
Negotiable
MOQ: 2 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HELI
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shandong, China
Brand Name
HELI
Model Number
4HP
Type
Vertical
CNC or Not
Normal
Voltage
380V/220V
Power(W)
3.4KW
Dimension(L*W*H)
1700 x 1520 x 2000
Weight
1250
Certification
ISO 2008
Warranty
12 months
After-sales Service Provided
No overseas service provided
Specifications
1. Original Taiwan high speed milling head2.hardened worktable and column guideways
3.more durable and stable function
Main specification |
UNIT |
4HP |
Table size |
mm |
1270 x 254 |
Table travel |
mm |
750 x 400 |
Vertical travel of table |
mm |
400 |
Max. arm travel |
mm |
450 |
Spindle sleeve travel |
mm |
127 |
Spindle motor power |
kw |
3 |
Spindle taper |
|
R8(NT30) |
Spindle sleeve dia. |
mm |
87.525 |
Distance between spindle nose and table surface |
mm |
0-460 |
Distance between spindle axis and column guideway surface |
mm |
80-540 |
Angle of spindle tilt |
° |
±90° |
Spindle speed range |
rpm |
16steps 66-4540 |
Coolant pump motor power |
w |
40 |
Max. table loading |
kg |
300 |
Overall dimension |
mm |
1700 x 1520 x 2000 |
N.W/G.W |
kg |
1200/1250 |
