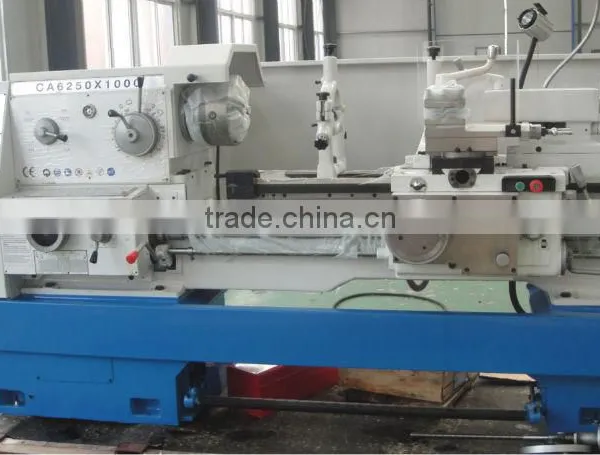

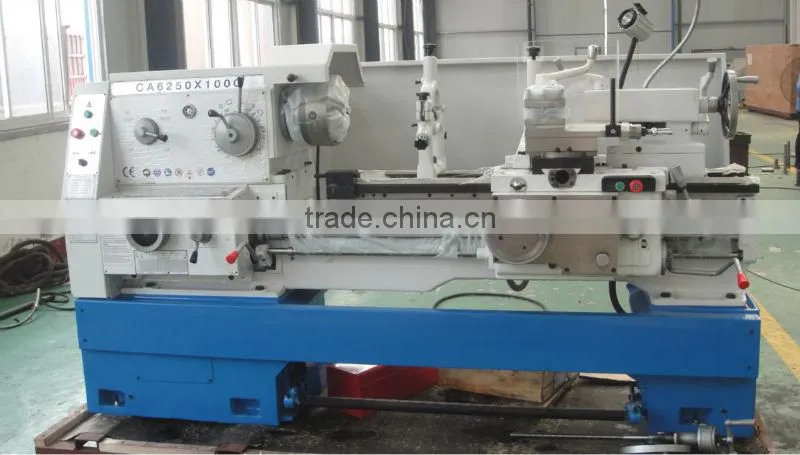

Horizontal Lathe Machine CA6150/CA6250

Name: Horizontal Lathe Machine CA6150/CA6250
Brand: HELI
SKU: 103161897

Negotiable MOQ: 4 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 50

Place of Origin China

Brand Name HELI

Model Number CA6150

Voltage 380V

Power(W) 7500

Dimension(L*W*H) 2650x1140x1750

Weight 2260

Certification CE

After-sales Service Provided No overseas service provided

Specifications

High quality casting body
Hardened and ground bed way coated with Turcite-B
Integrated automaticc lubrication system

Model specifications			CA6150 CA6250 CA6150B CA6250B CA6150C CA6250C
Max .Swing over bed			500mm
Max .Swing over carriage			300mm
Max .Swing in gap			——	720mm
effective gap length			——	210mm
Max .length of work piece			1000/1500mm
width of bed			400mm
section of turning tool			25×25mm
Spindle	spindle speed		10-1400rpm/16-1400rpm(24steps)
	hole through spindle		52mm ,(80mm),[105mm]
	spindle taper		No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed	No. of feed		(64 kinds)(for each)
	range of metric threads		(1-192mm) (44 kinds)
	range of inch threads		(1-24tpi)(21kinds)
	range of module threads		0.25-48(module 39 kinds)
	range of diametral pitc threads		1-96DP(37 kinds)
Tailstock	Max. tailstock spindle travel		150mm
	tailstock spindle diameter		75mm
	taper of tailstock spindle center hole		NO.5 (MT5)
main motor			7.5KW(10HP)
Packing dimensions (L×W×H mm)		Overall dimensions for 1000mm	2650×1140×1750
		Overall dimensions for 1500mm	3150×1140×1750
Weight(kg)		Length	G.W. N.W.
		Overall dimensions for 1000mm	2260 2140
		Overall dimensions for 1500mm	2420 2290
